Fuel Injection Control Module Connector End View (2 Of 2)

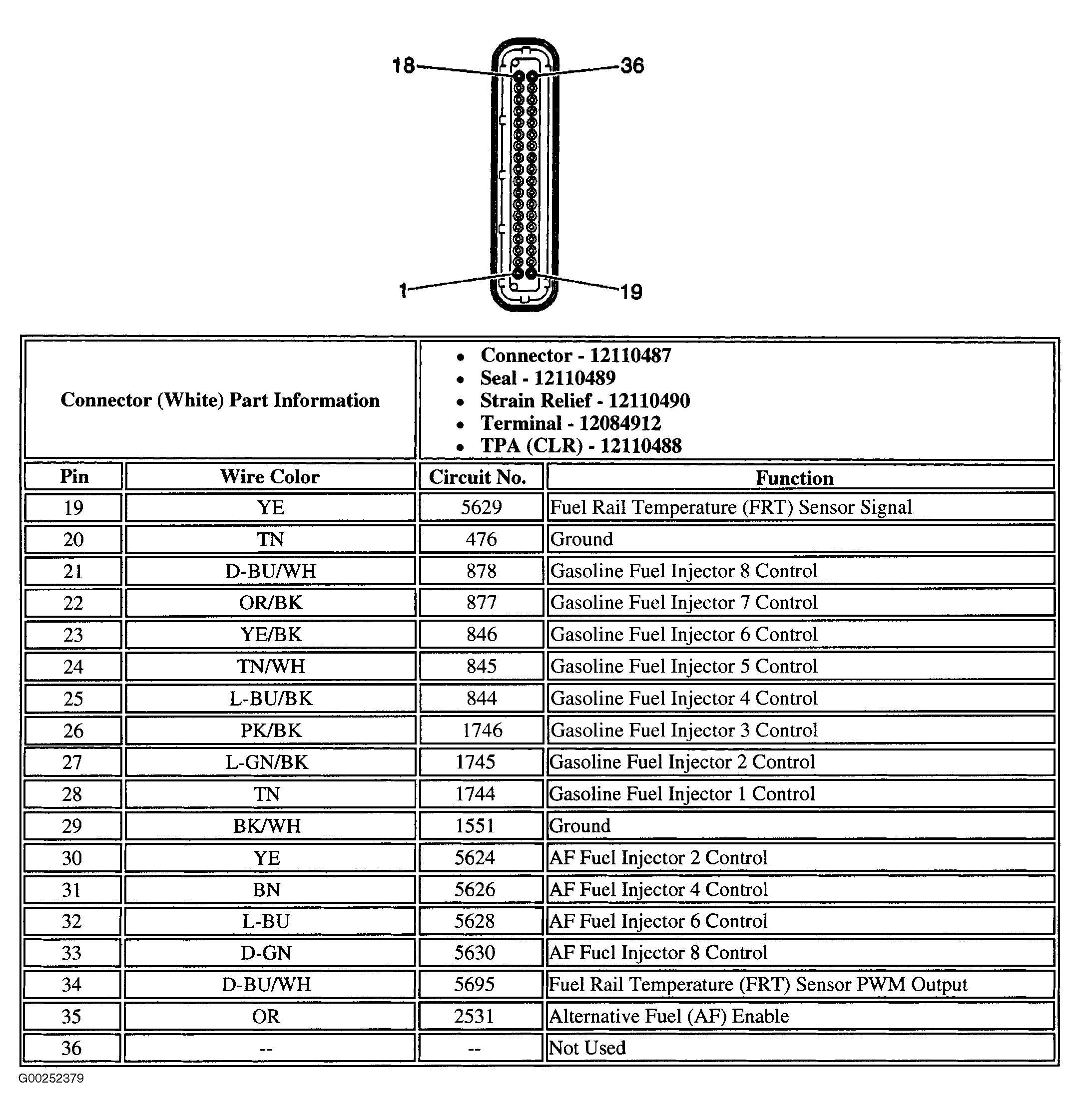

Fig 1: Fuel Injection Control Module Connector End View (2 Of 2)
G00252379Courtesy of GENERAL MOTORS CORP.
