Fuel Tank Pressure Sensor Connector End View

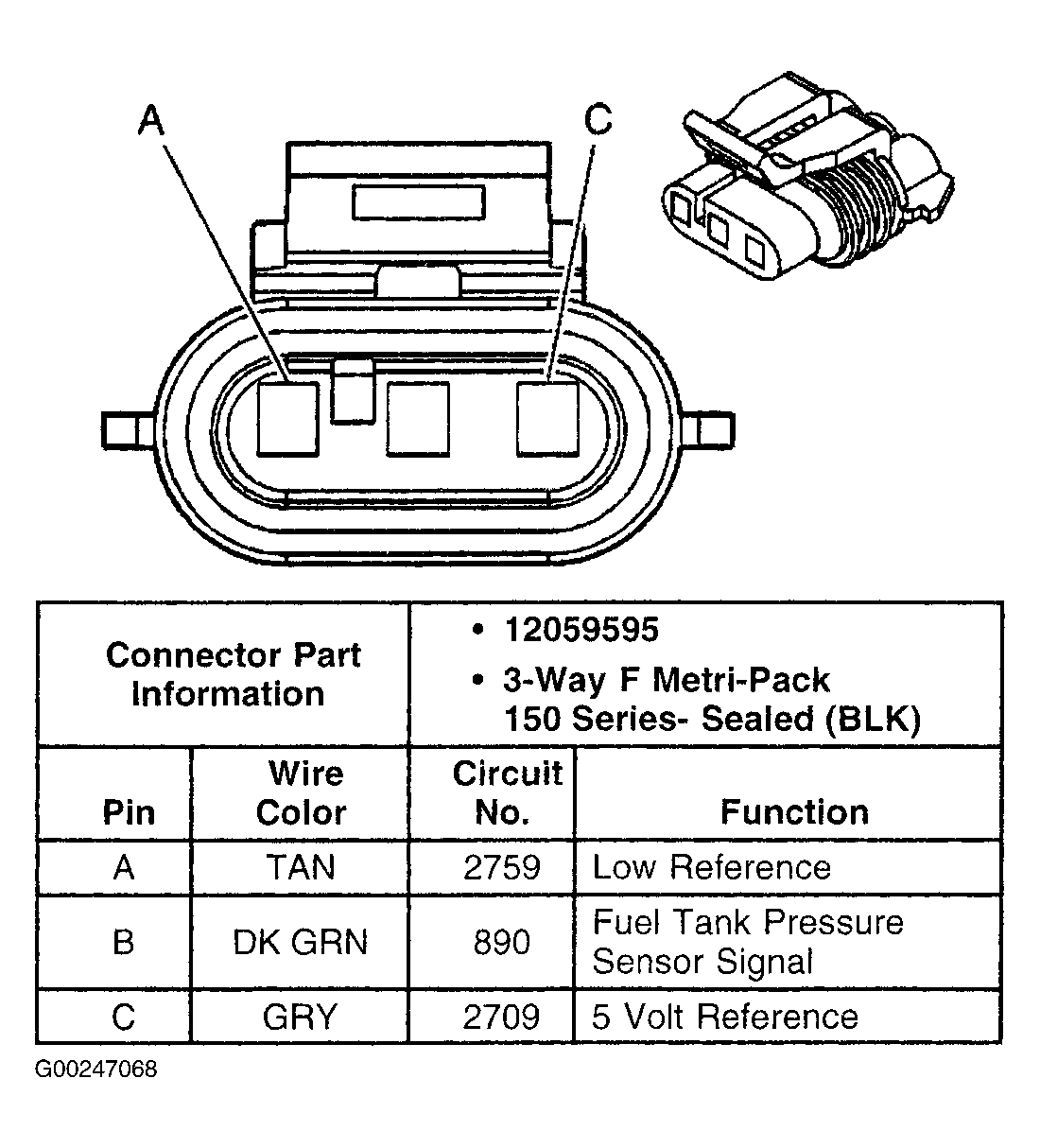

Fig 1: Fuel Tank Pressure Sensor Connector End View
G00247068Courtesy of GENERAL MOTORS CORP.


Fig 1: Fuel Tank Pressure Sensor Connector End View
G00239721Courtesy of GENERAL MOTORS CORP.
