HVAC Control Assembly - C1 Connector End View
HVAC Control Assembly - C1 Connector End View

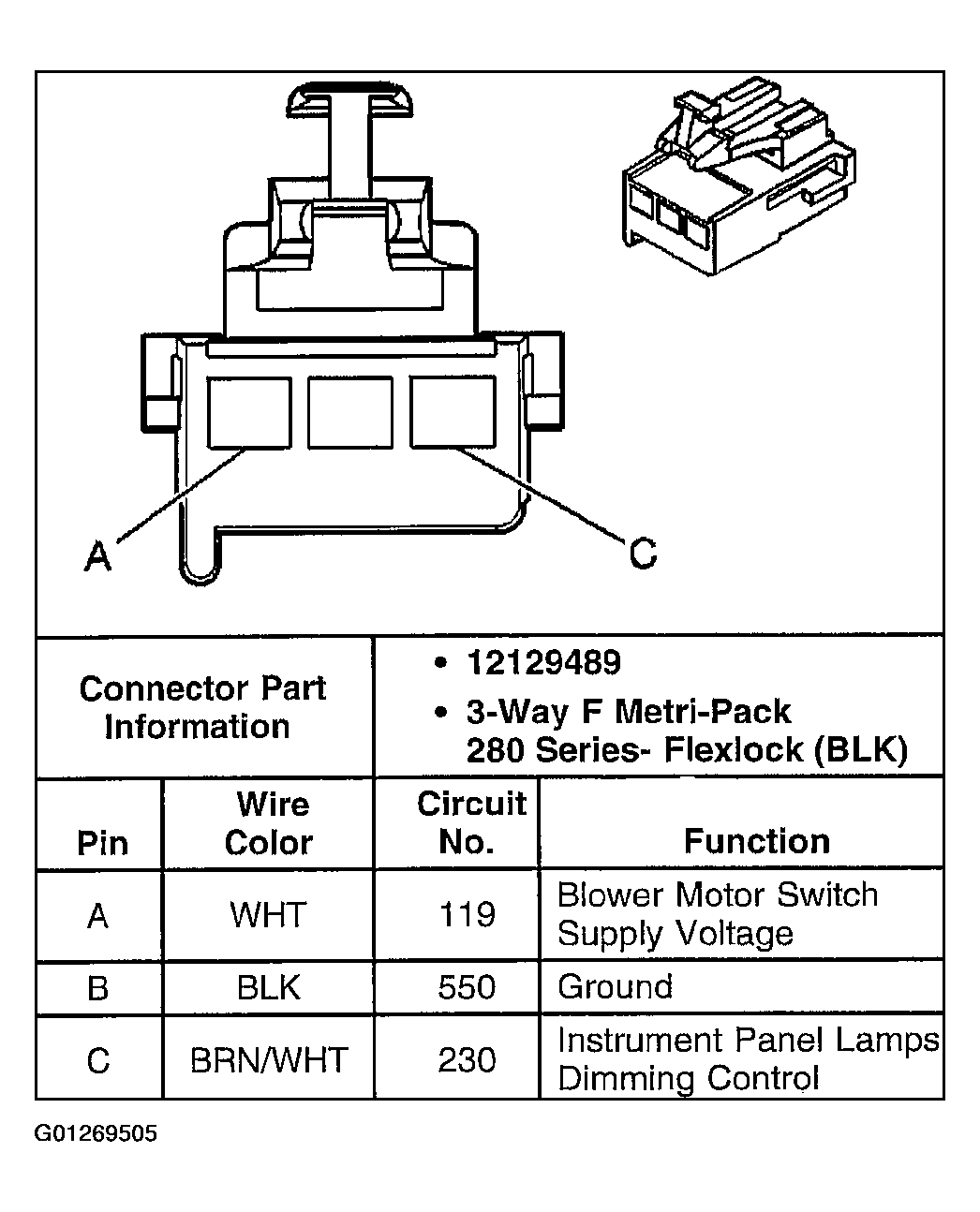

Fig 1: HVAC Control Assembly - C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
