Idle Air Control Valve Connector End View

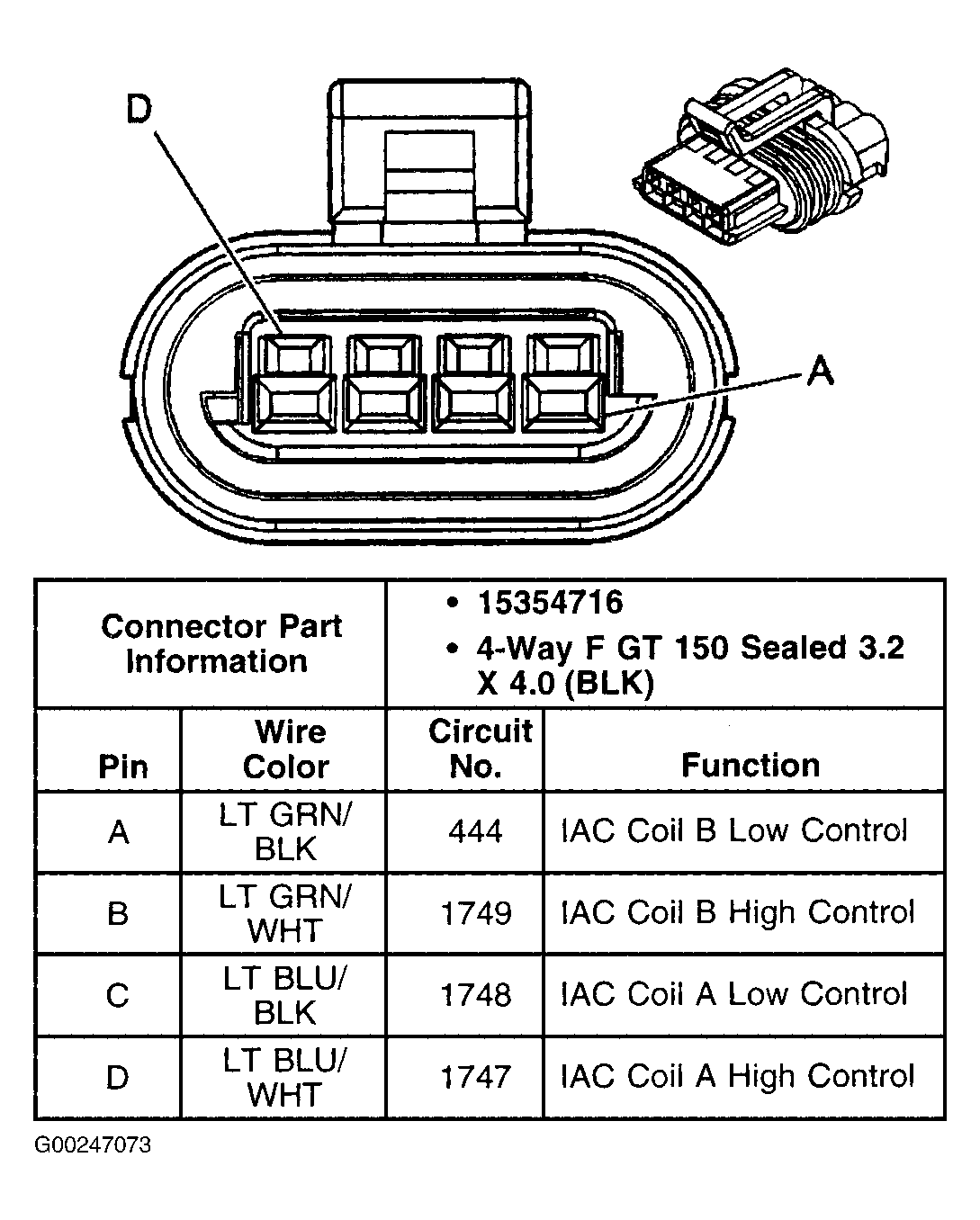

Fig 1: Idle Air Control Valve Connector End View
G00247073Courtesy of GENERAL MOTORS CORP.


Fig 1: Idle Air Control Valve Connector End View
G00239726Courtesy of GENERAL MOTORS CORP.
