Ignition Coil/Module 4 Connector End View
Ignition Coil/Module 4 Connector End View

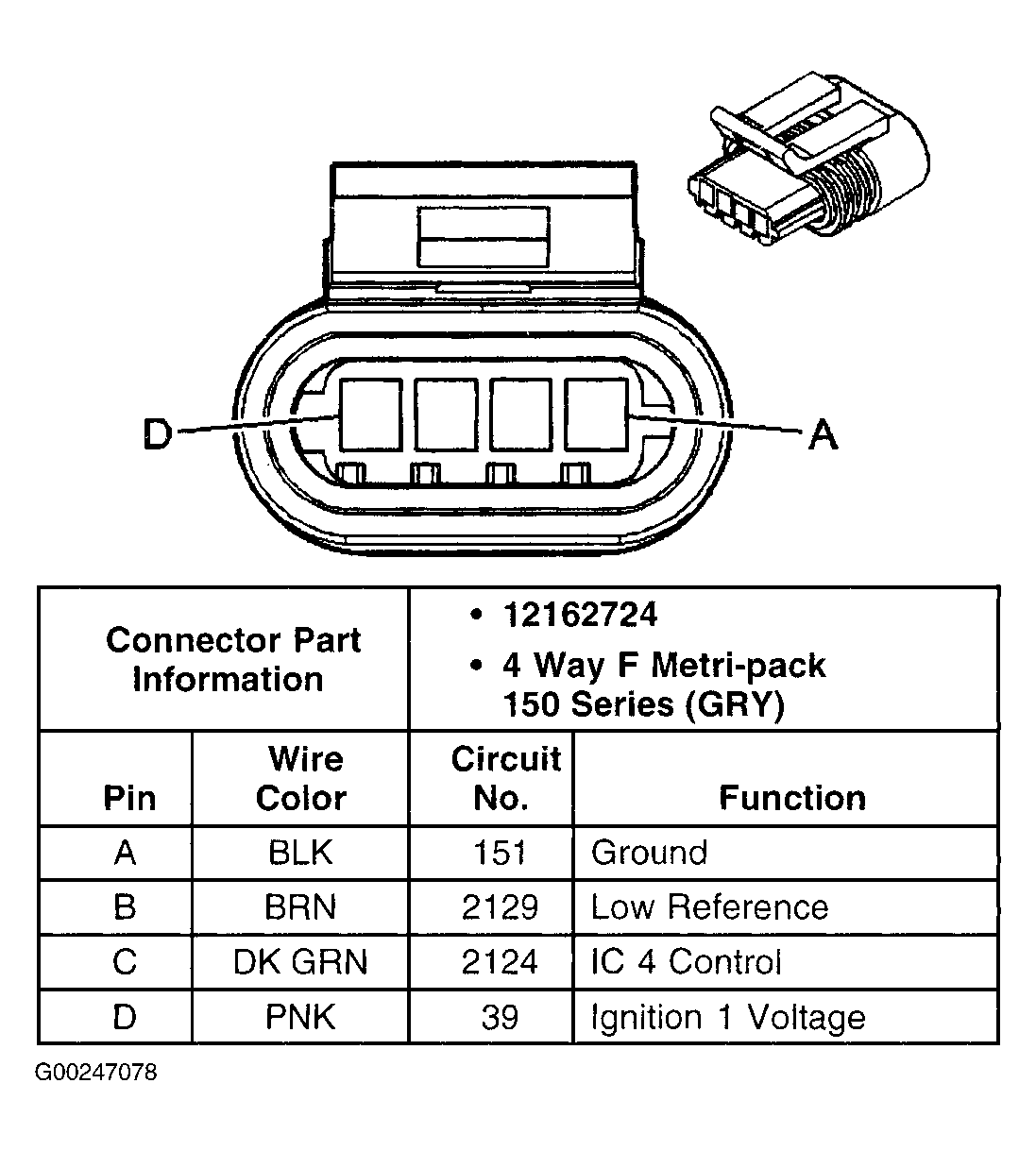

Fig 1: Ignition Coil/Module 4 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
