Ignition Coil/Module 8 Connector End View
Ignition Coil/Module 8 Connector End View

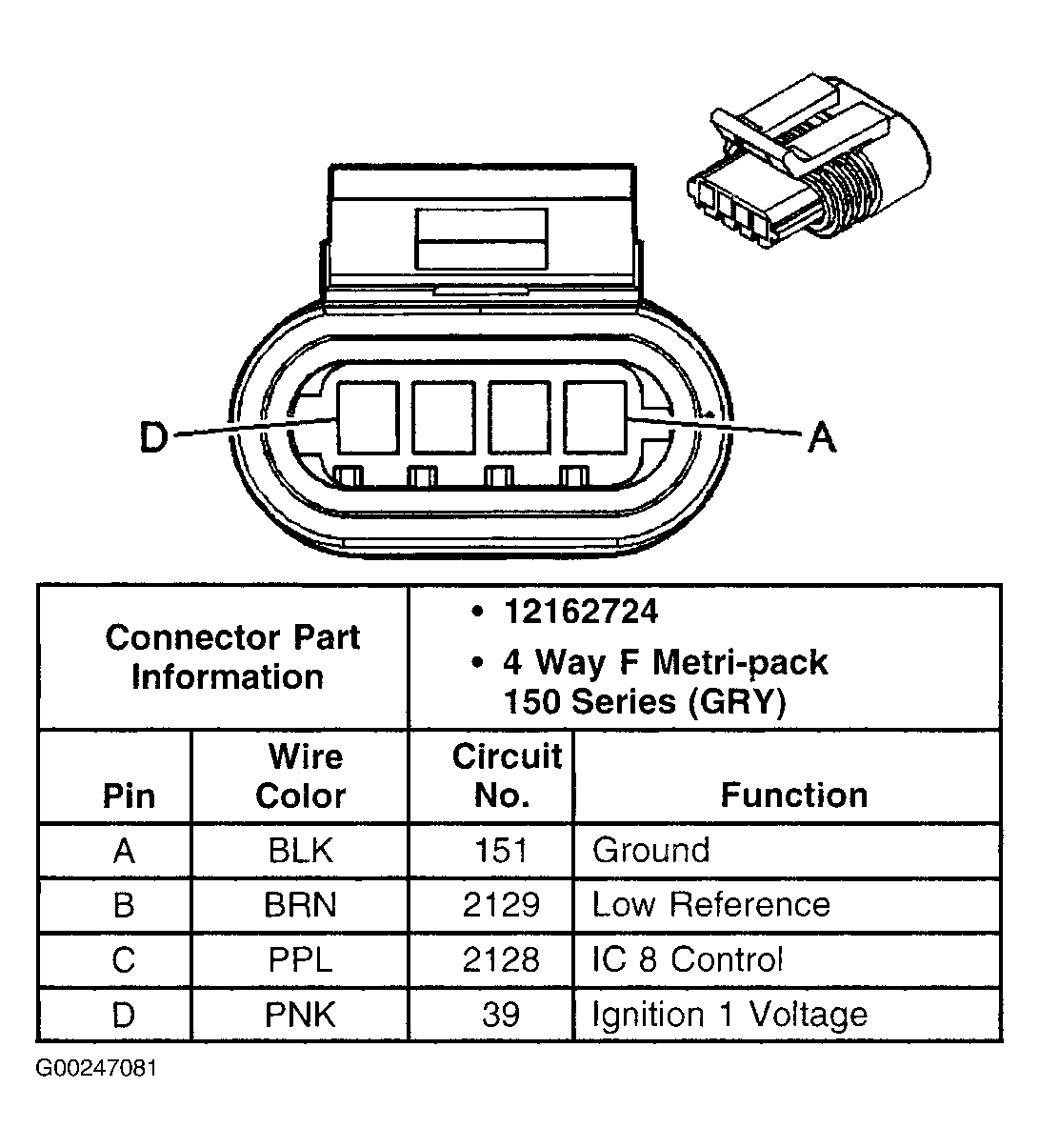

Fig 1: Ignition Coil/Module 8 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
