Ignition Control Module Connector End View
Ignition Control Module Connector End View

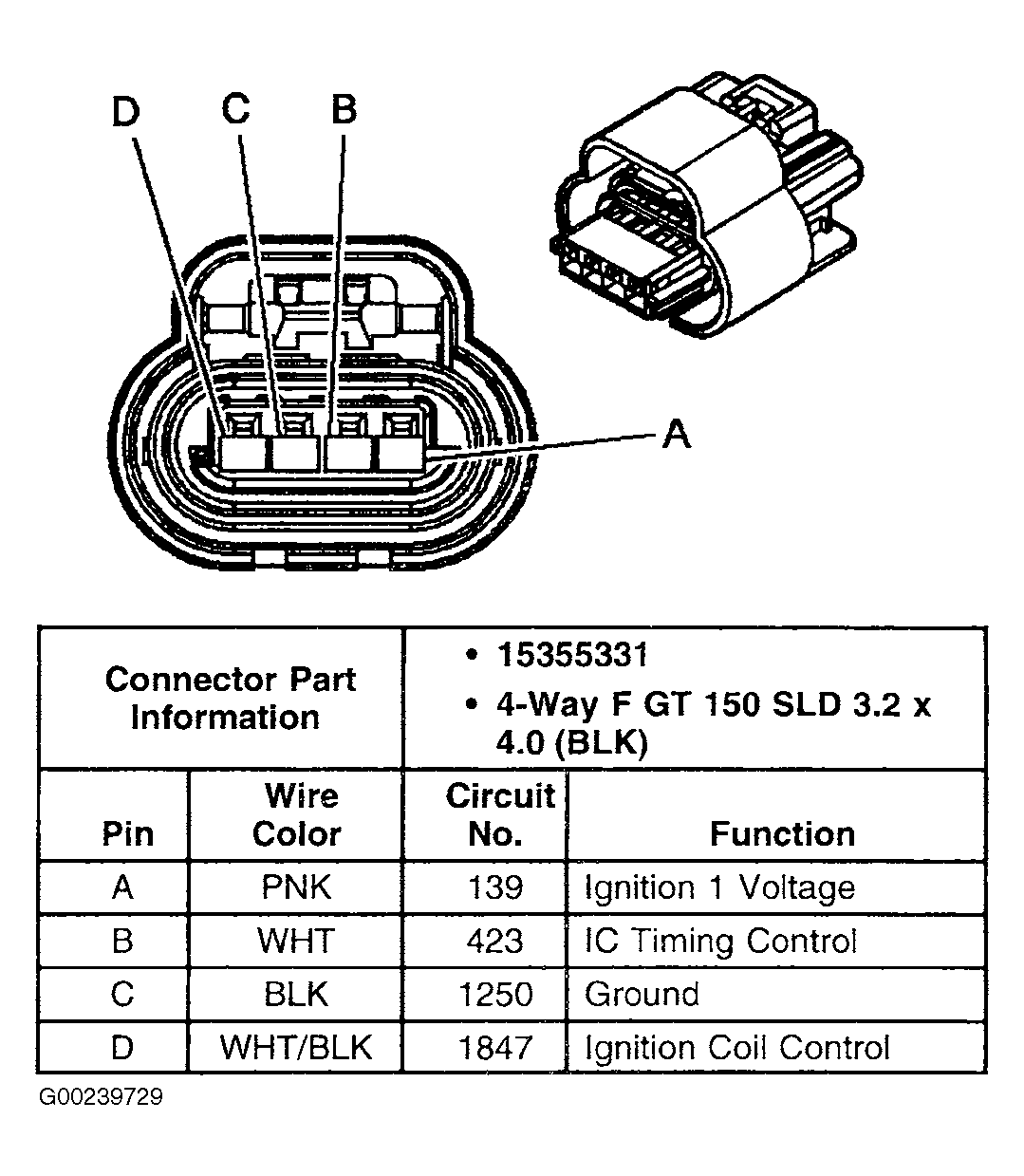

Fig 1: Ignition Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
