Ignition Key Alarm Switch Connector End View
Ignition Key Alarm Switch Connector End View

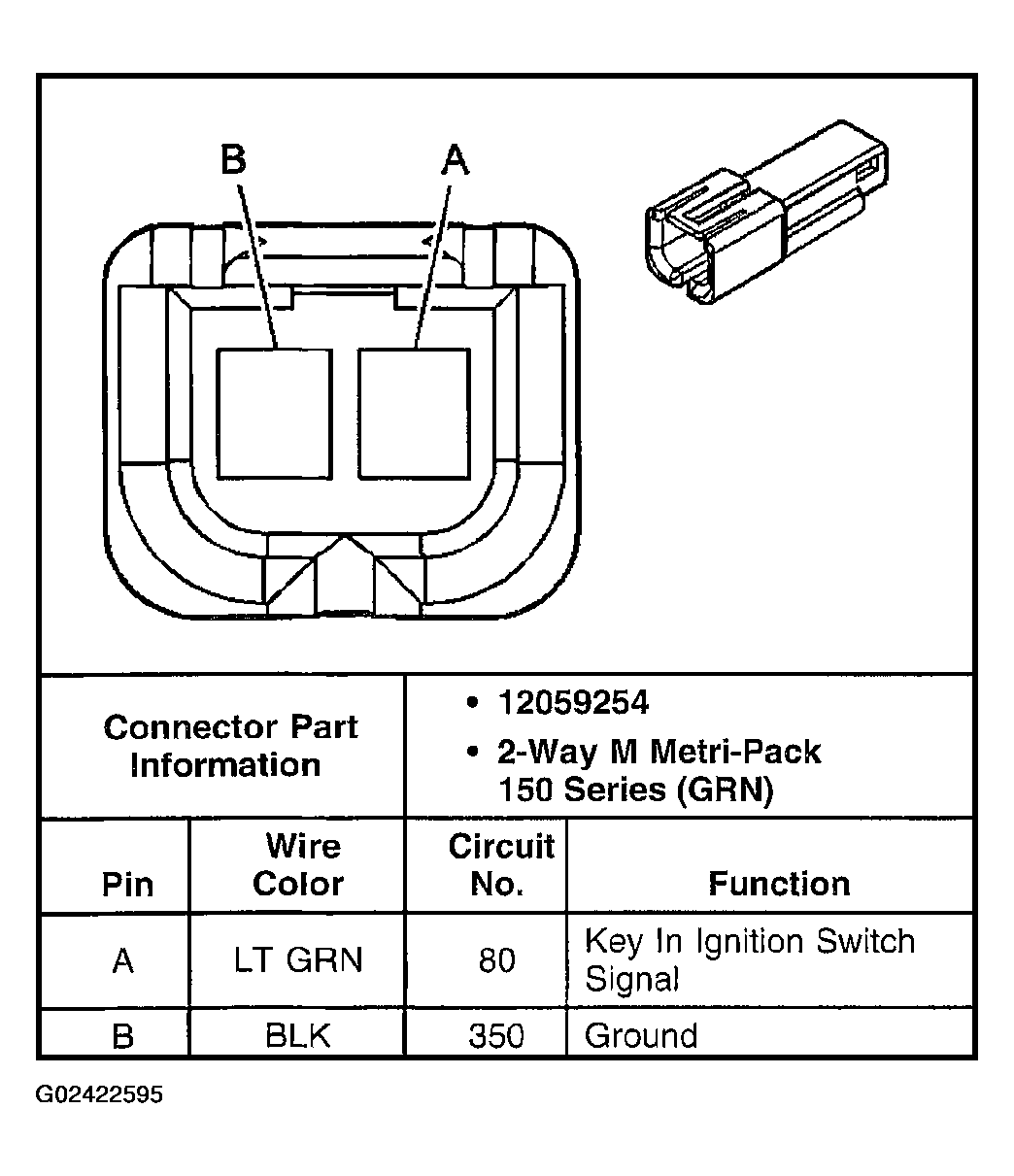

Fig 1: Ignition Key Alarm Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
