Ignition Switch Connector End View
Ignition Switch Connector End View

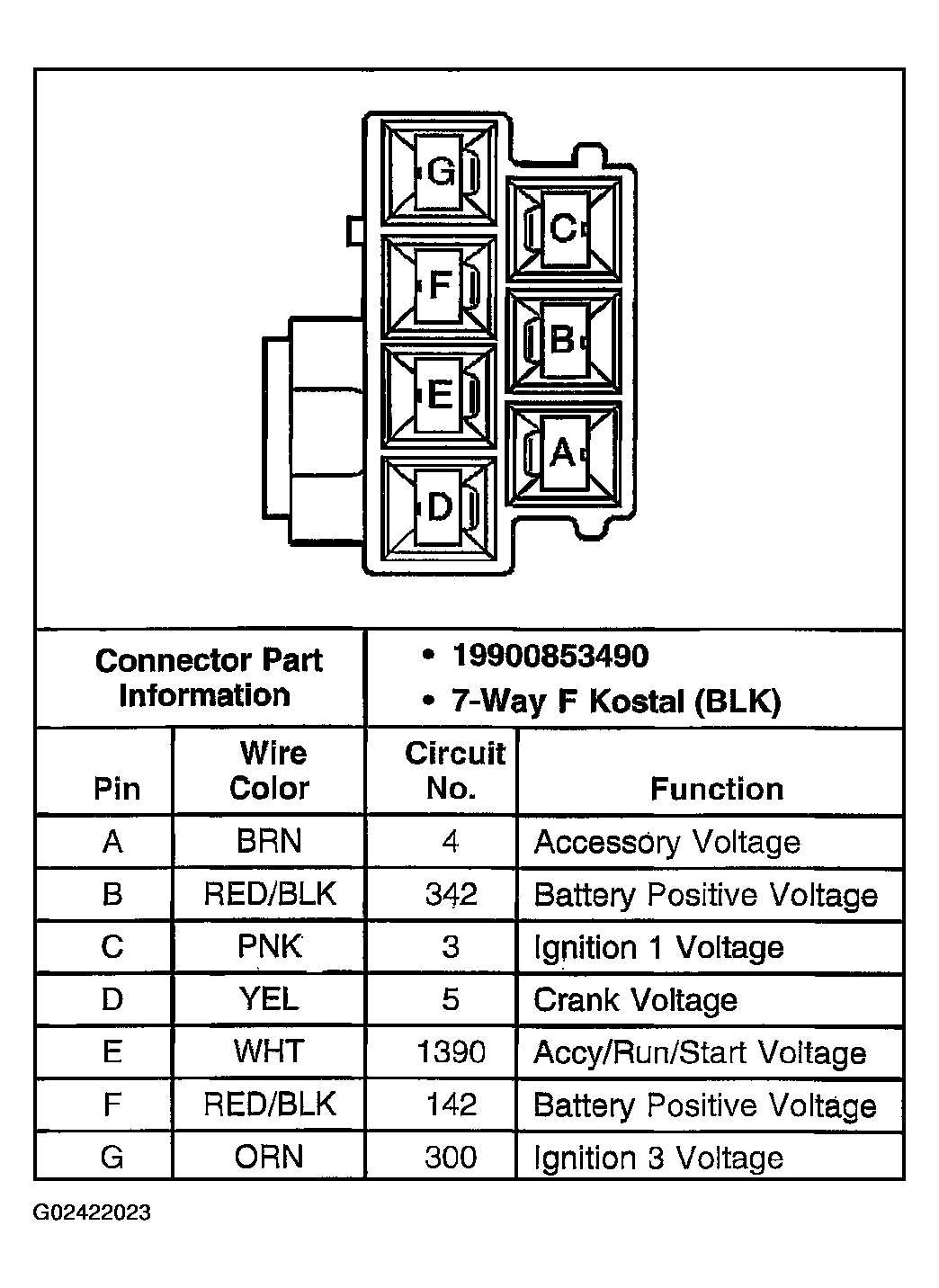

Fig 1: Ignition Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
