Manifold Absolute Pressure Sensor Connector End View

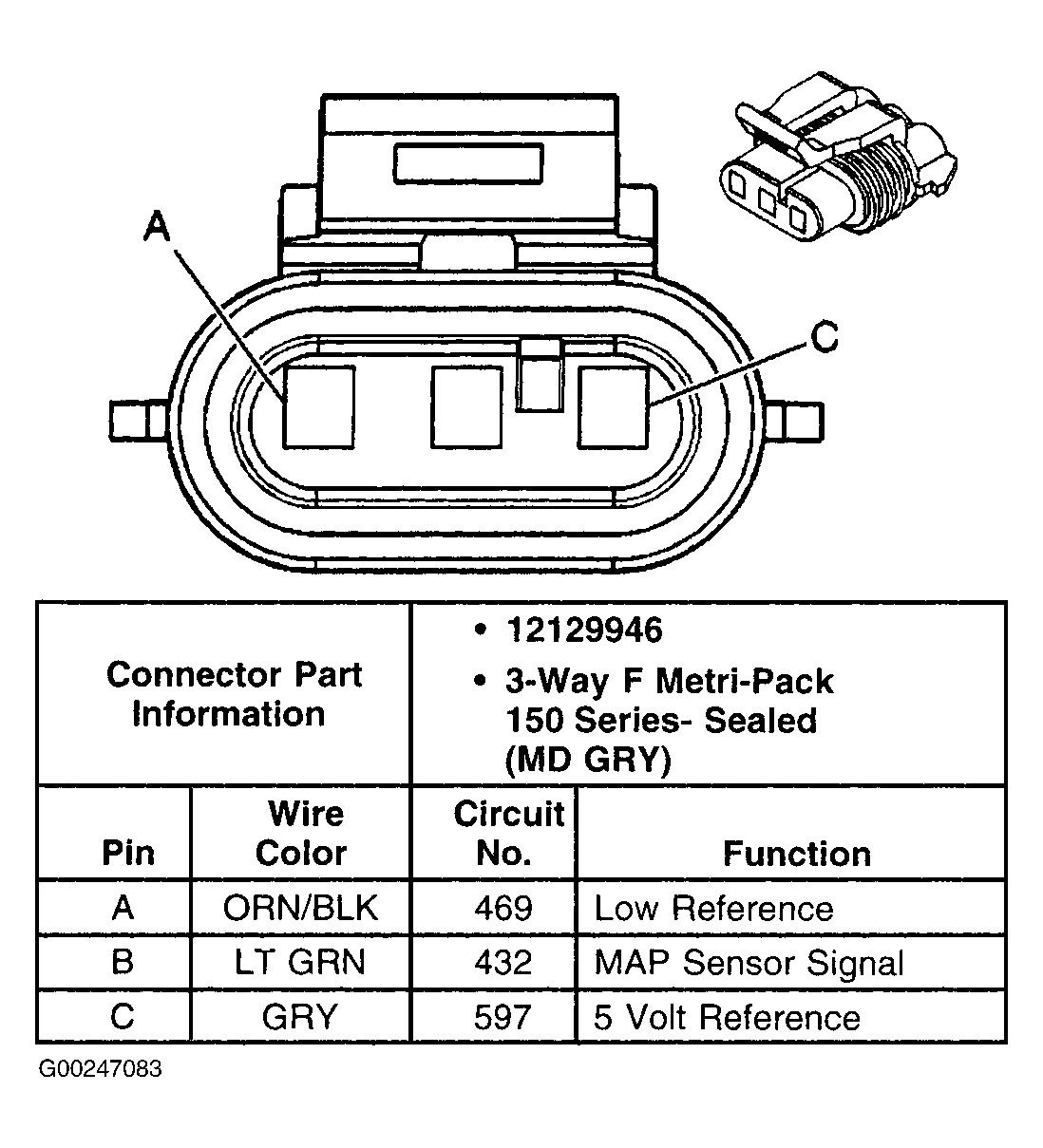

Fig 1: Manifold Absolute Pressure Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 1: Manifold Absolute Pressure Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
