Throttle Position Sensor Connector End View

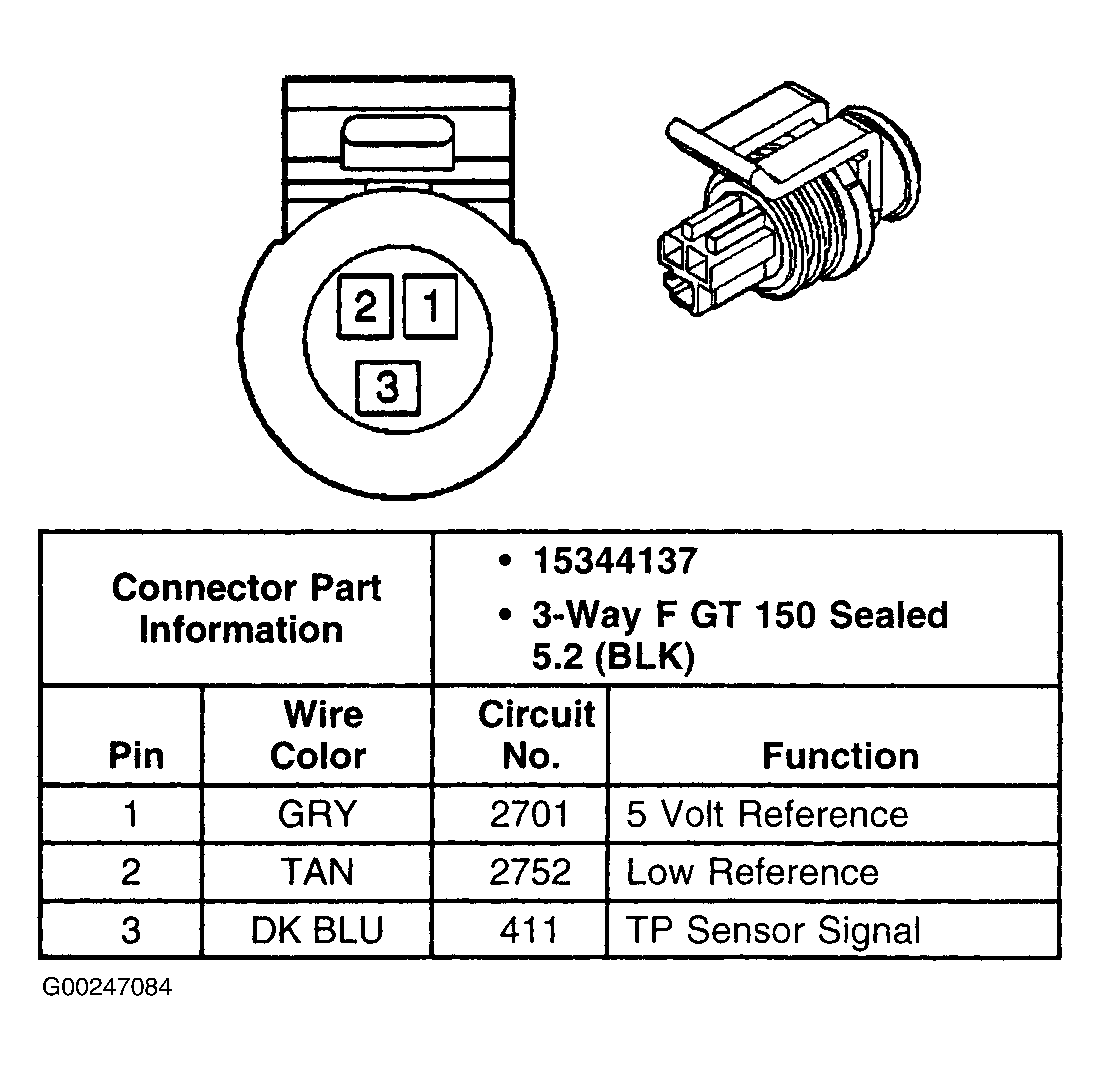

Fig 1: Throttle Position Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 1: Throttle Position Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
