Installation Procedure

CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Route the hose in the same position the hose occupied prior to removal.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the power brake booster outlet hose (1) to the power brake booster (2).

    Tighten

    Tighten the hose fitting to 33 N.m (24 lb ft).

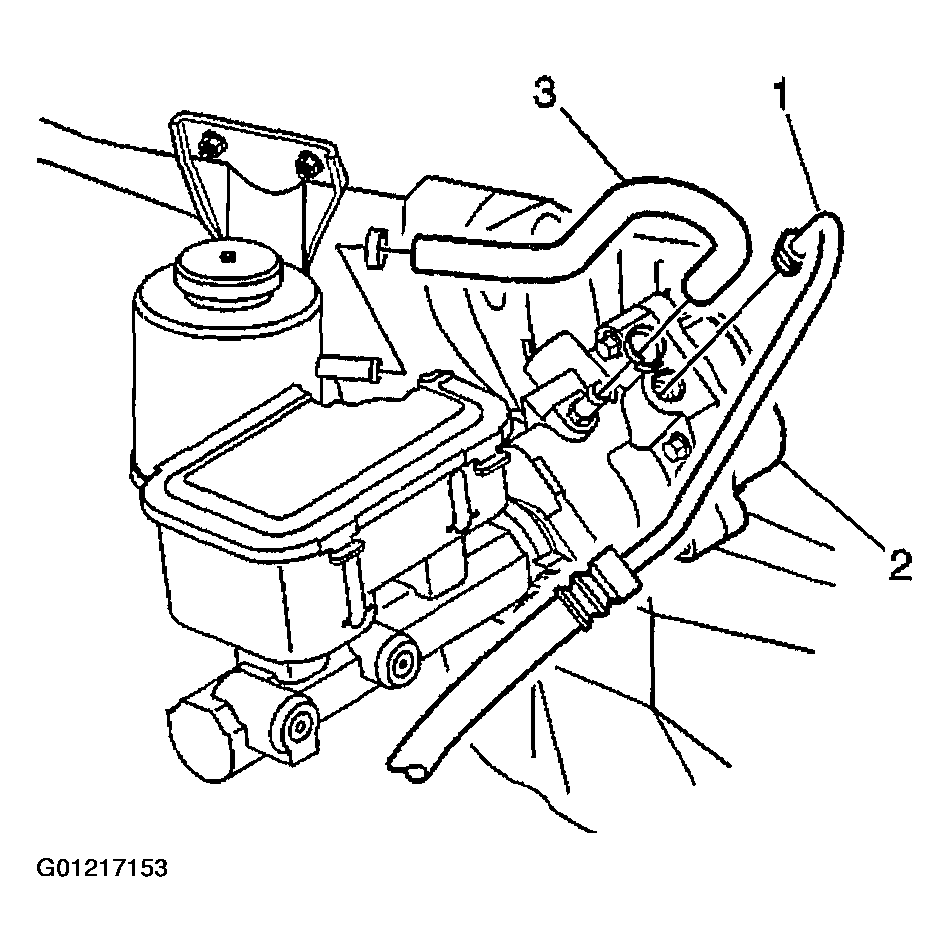

    Fig 1: Installing Power Brake Booster Outlet Hose To Power Brake Booster
    G01217153Courtesy of GENERAL MOTORS CORP.
  3. Install the power brake booster outlet hose to the power steering gear (2).

    Tighten

    Tighten the hose fitting to 33 N.m (24 lb ft).

  4. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  5. Remove the drain pan from under the vehicle.

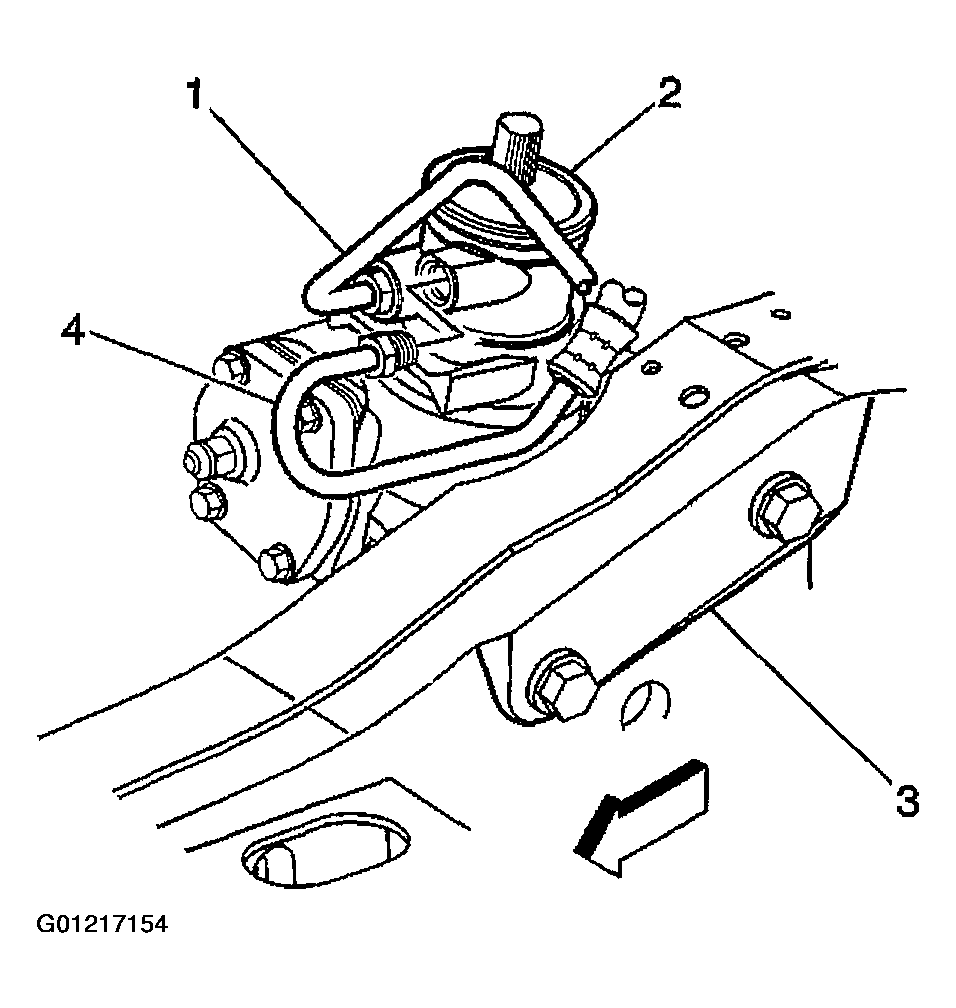

    Fig 2: Installing Power Brake Booster Outlet Hose To Power Steering Gear
    G01217154Courtesy of GENERAL MOTORS CORP.
