Installation Procedure

  1. Place the power steering pump pulley on the end of the power steering pump shaft.
  2. Install the power steering pump pulley using J-25033-C  .

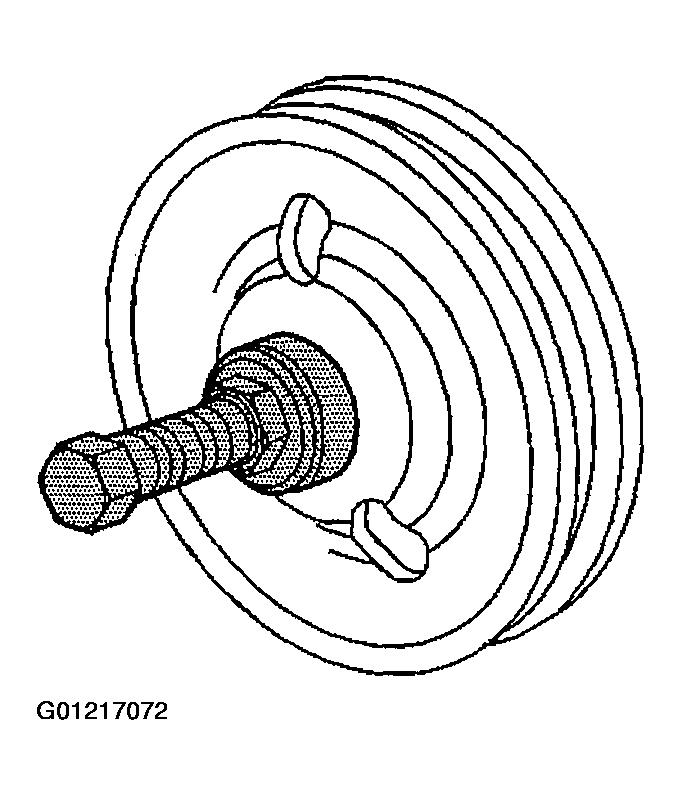

    Fig 1: Installing Power Steering Pump Pulley Using J-25033-C
    G01217072Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the power steering pump pulley is flush against the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 in).

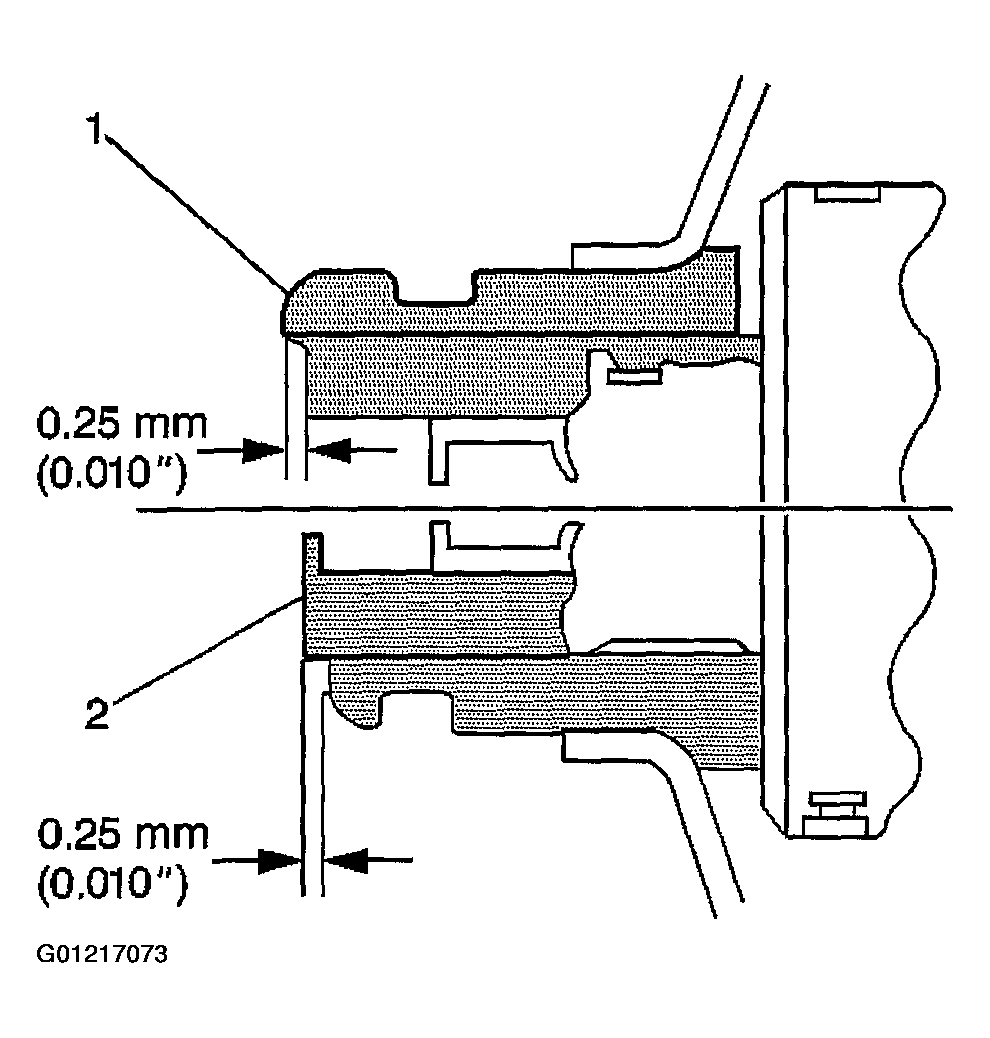

    Fig 2: Ensuring Power Steering Pump Pulley & Power Steering Pump Shaft Are Flush
    G01217073Courtesy of GENERAL MOTORS CORP.
  4. Install the drive belt. Refer to Drive Belt Replacement in ENGINE MECHANICAL - 4.3L or Drive Belt Replacement - Accessory or Drive Belt Replacement - Air Conditioning in ENGINE MECHANICAL - 4.8L, 5.3L & 6.0L .
  5. Install the upper fan shroud. Refer to Fan Shroud Replacement in Engine Cooling .
