Electronic Brake Control Module (EBCM)

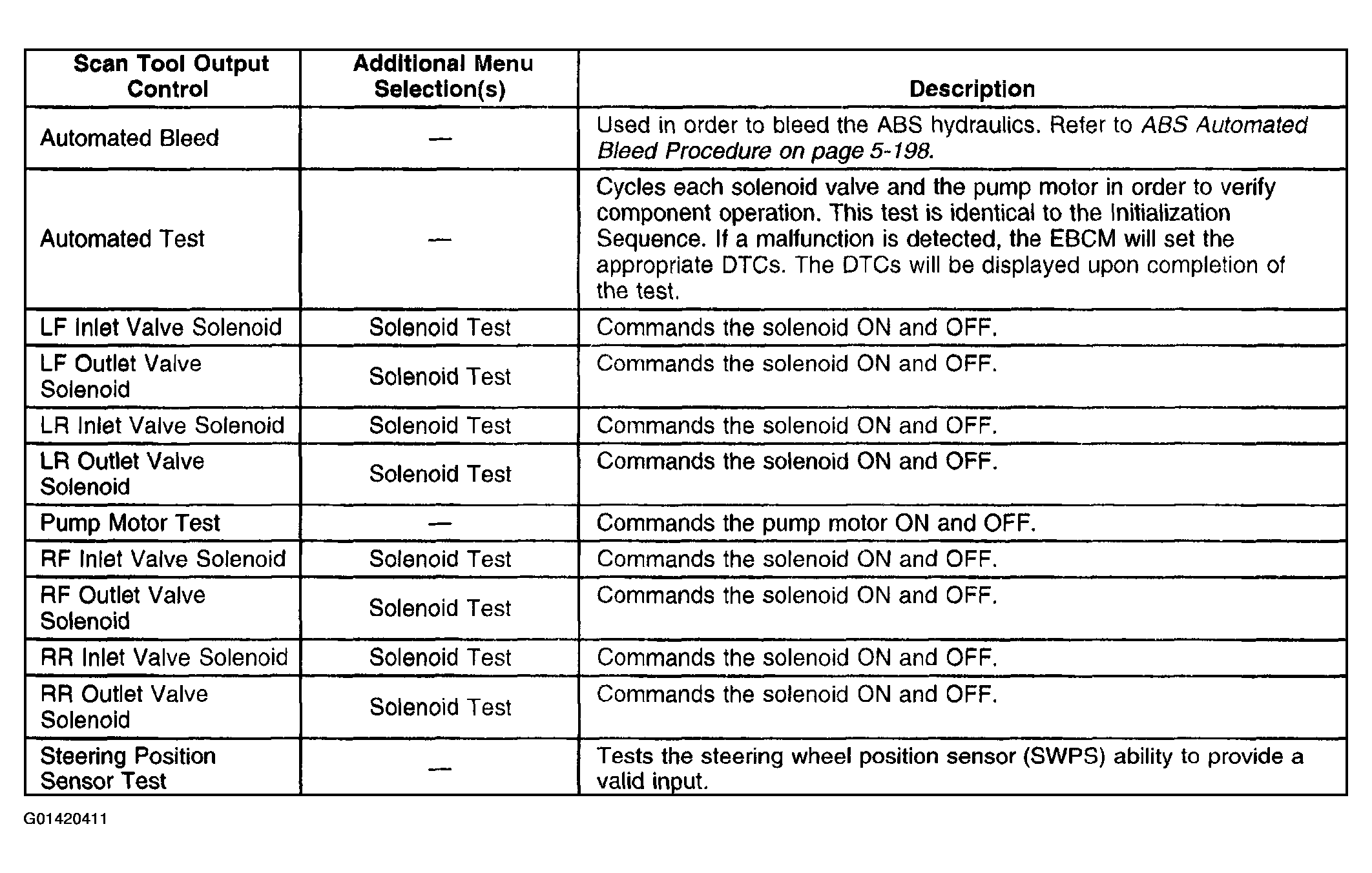

Fig 1: Electronic Brake Control Module (EBCM) Scan Tool Output And Description
G01420411Courtesy of GENERAL MOTORS CORP.
