Removal Procedure

  1. Turn the ignition OFF.
  2. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  3. Disconnect and remove the radiator inlet hose.

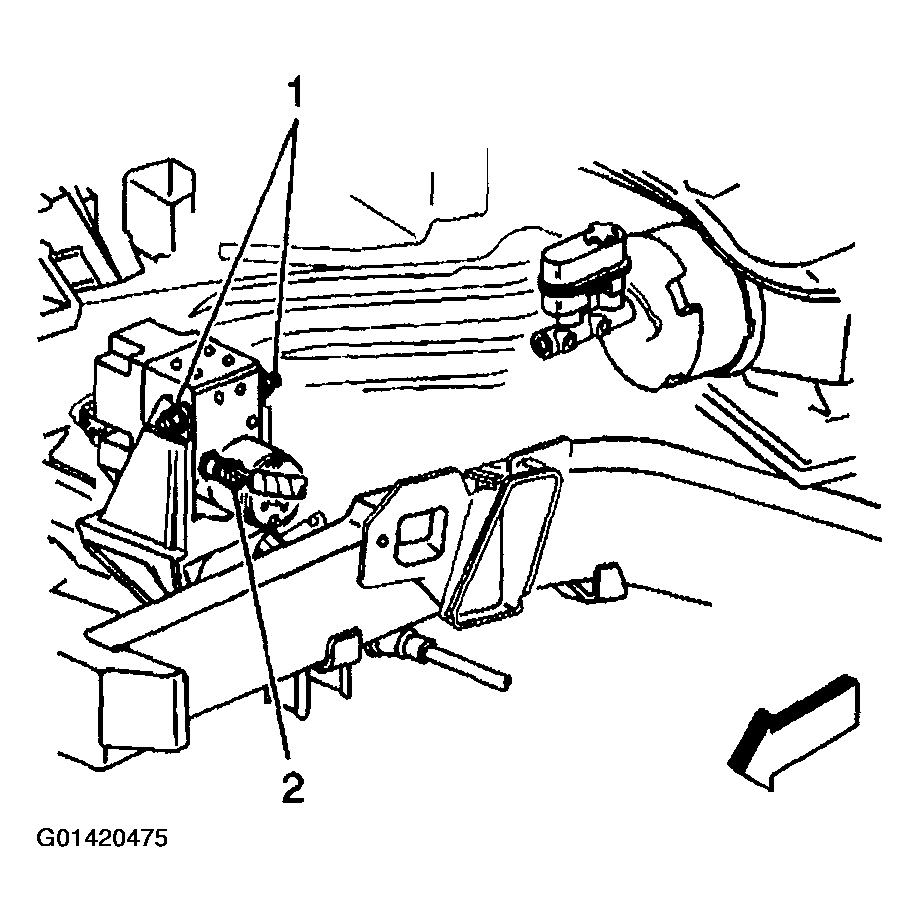

  4. Loosen the two retaining nuts (1) and carefully reposition the EBCM to access the brake pressure sensor (2).
    Fig 1: Removing Brake Fluid Pressure Sensor
    G01420475Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the brake pressure sensor electrical connector.
  6. Remove the brake pressure sensor from the vehicle.
