Disassembled Views

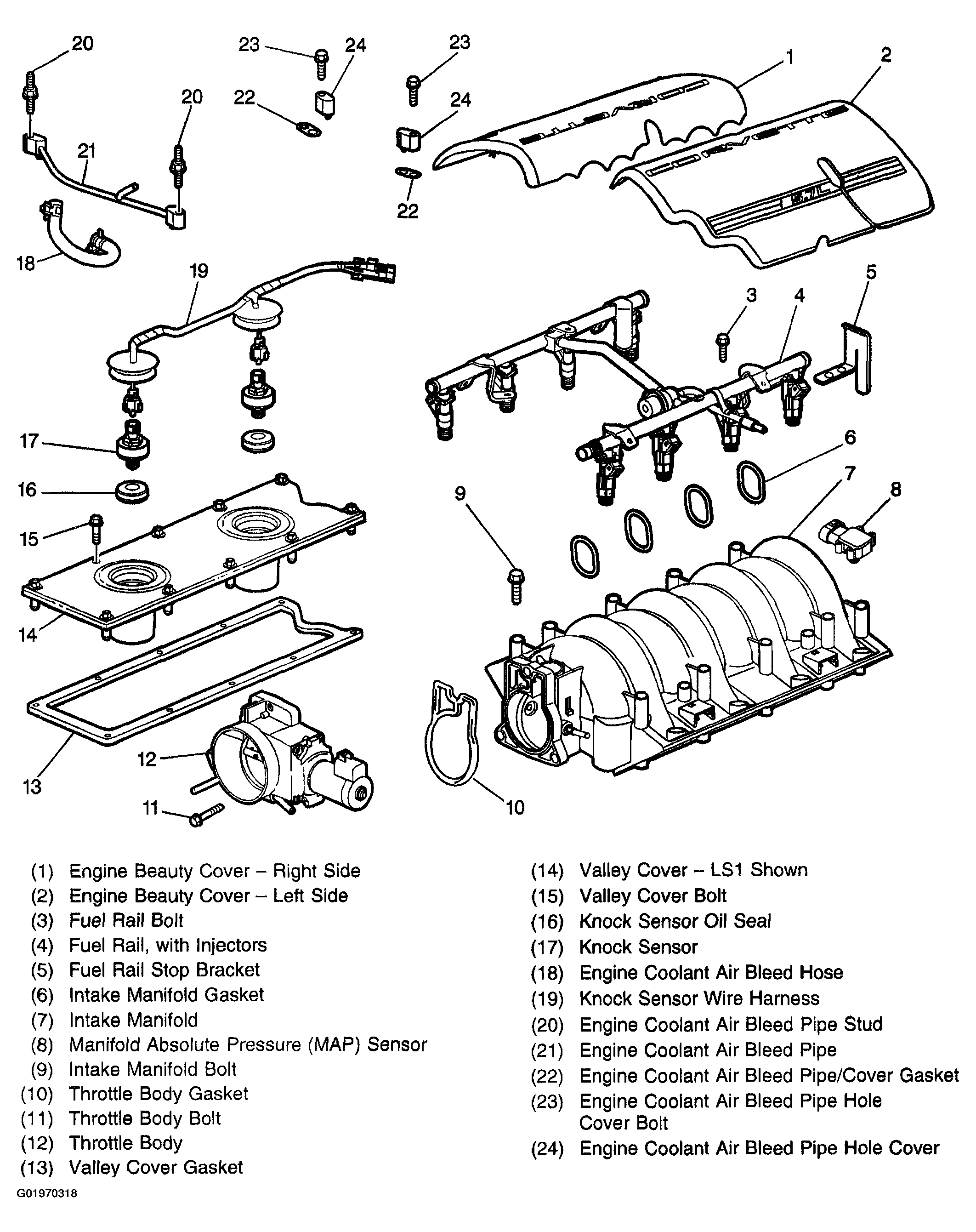

Fig 1: Intake Manifold/Upper Engine Disassembled View
G01970318Courtesy of GENERAL MOTORS CORP.

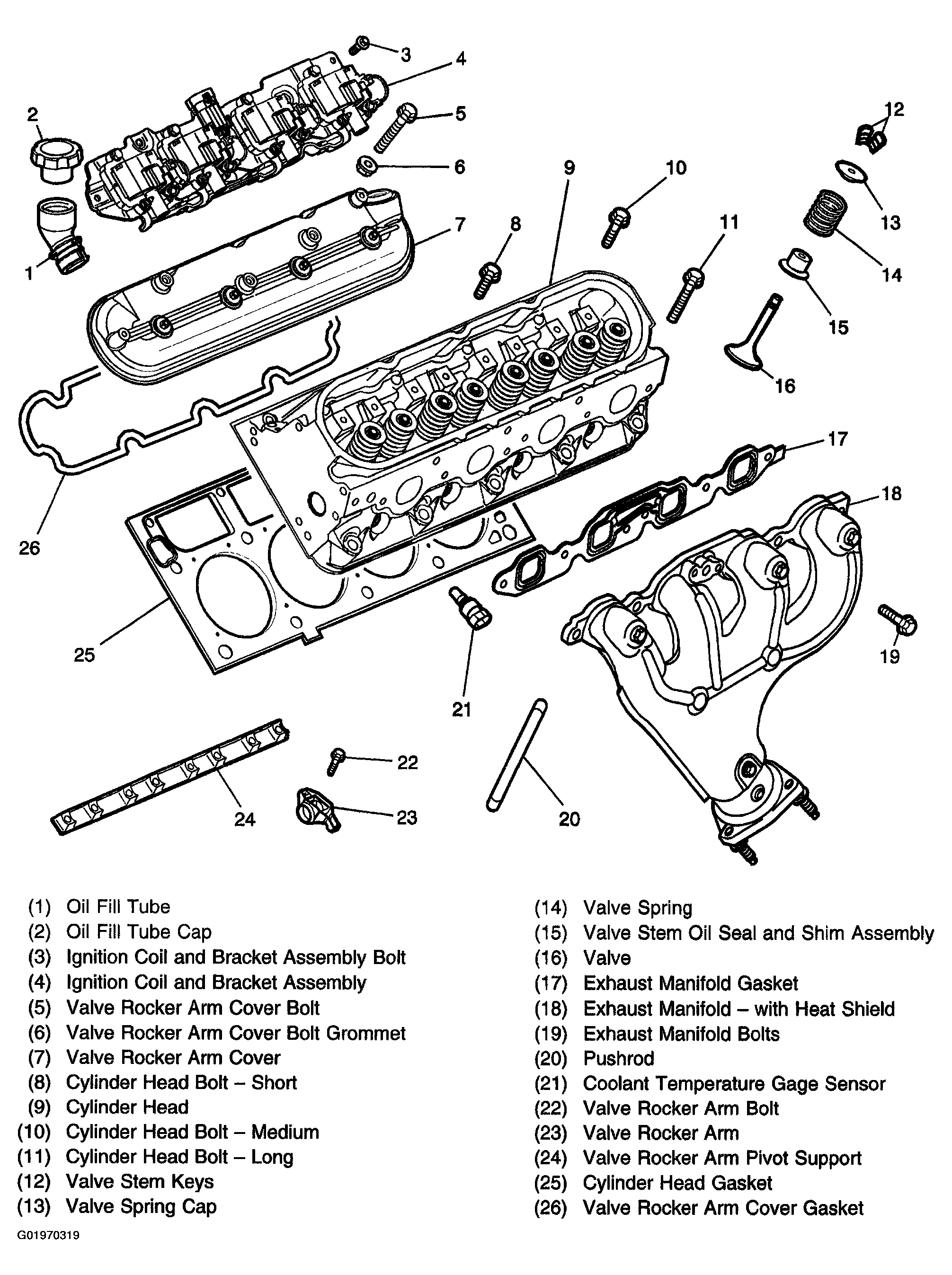

Fig 2: Cylinder Head/Upper Engine Disassembled View
G01970319Courtesy of GENERAL MOTORS CORP.

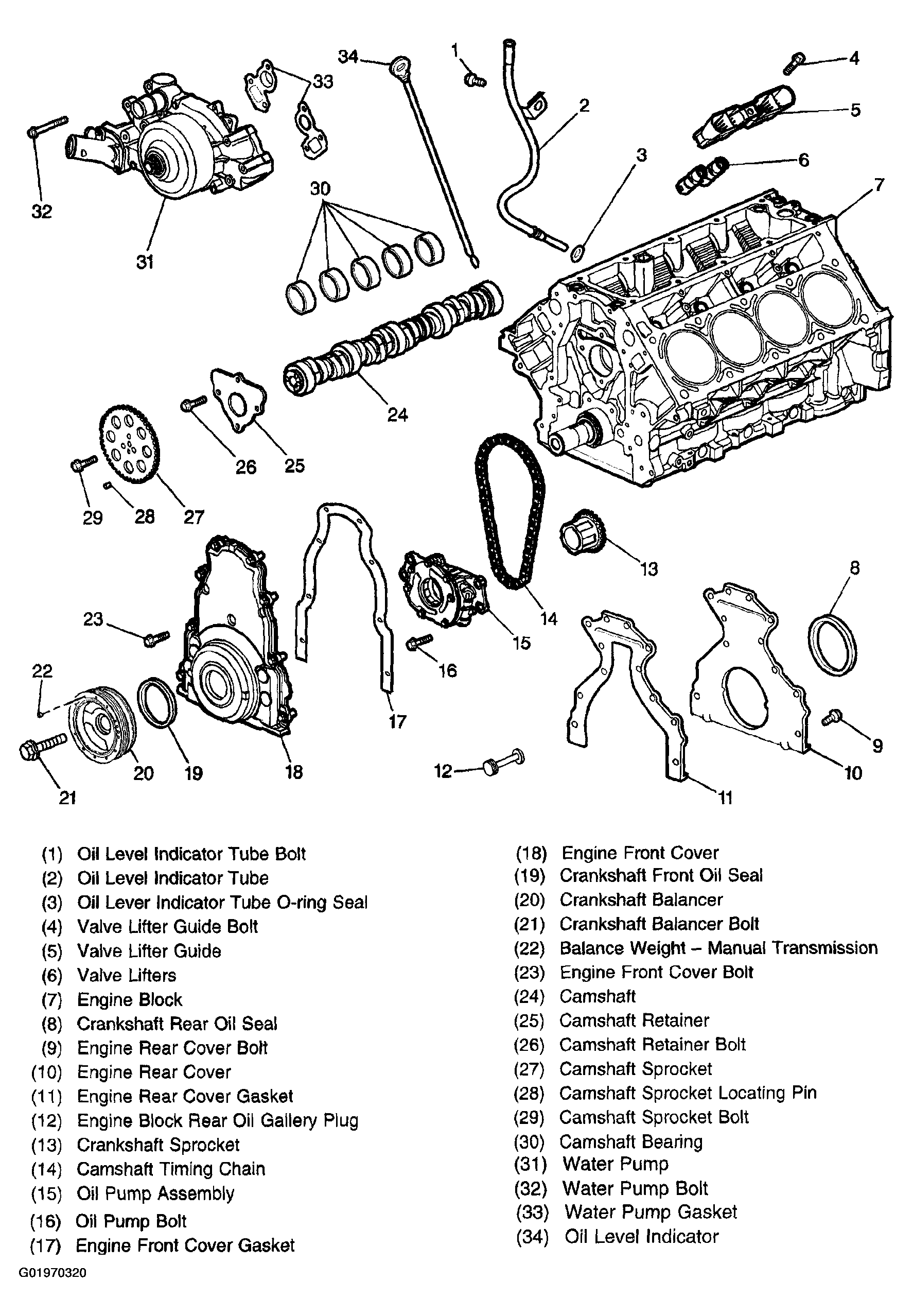

Fig 3: Lower Front Of Engine Disassembled View
G01970320Courtesy of GENERAL MOTORS CORP.

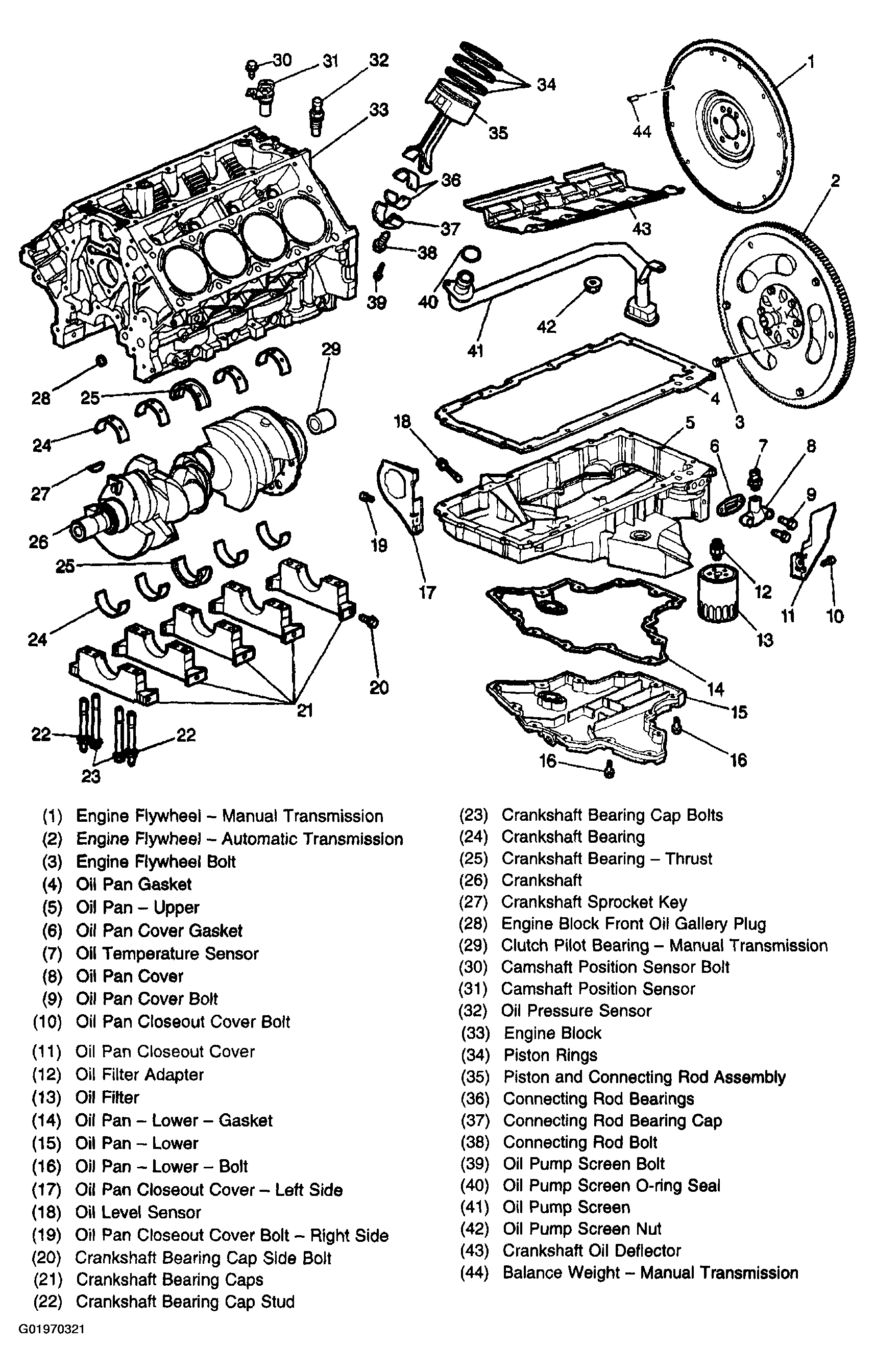

Fig 4: Lower Engine Assembly Disassembled View
G01970321Courtesy of GENERAL MOTORS CORP.

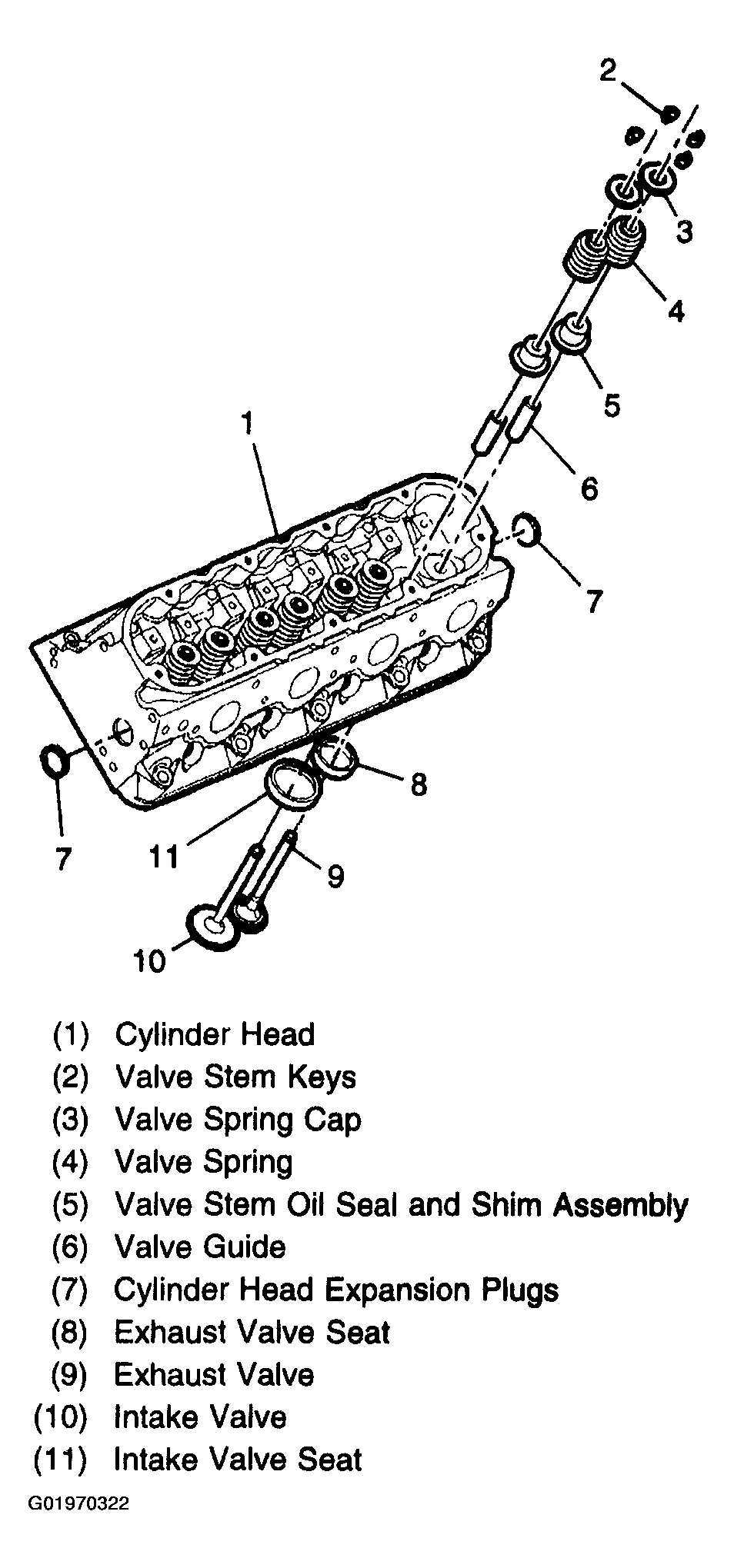

Fig 5: Cylinder Head Assembly - Aluminum Disassembled View
G01970322Courtesy of GENERAL MOTORS CORP.

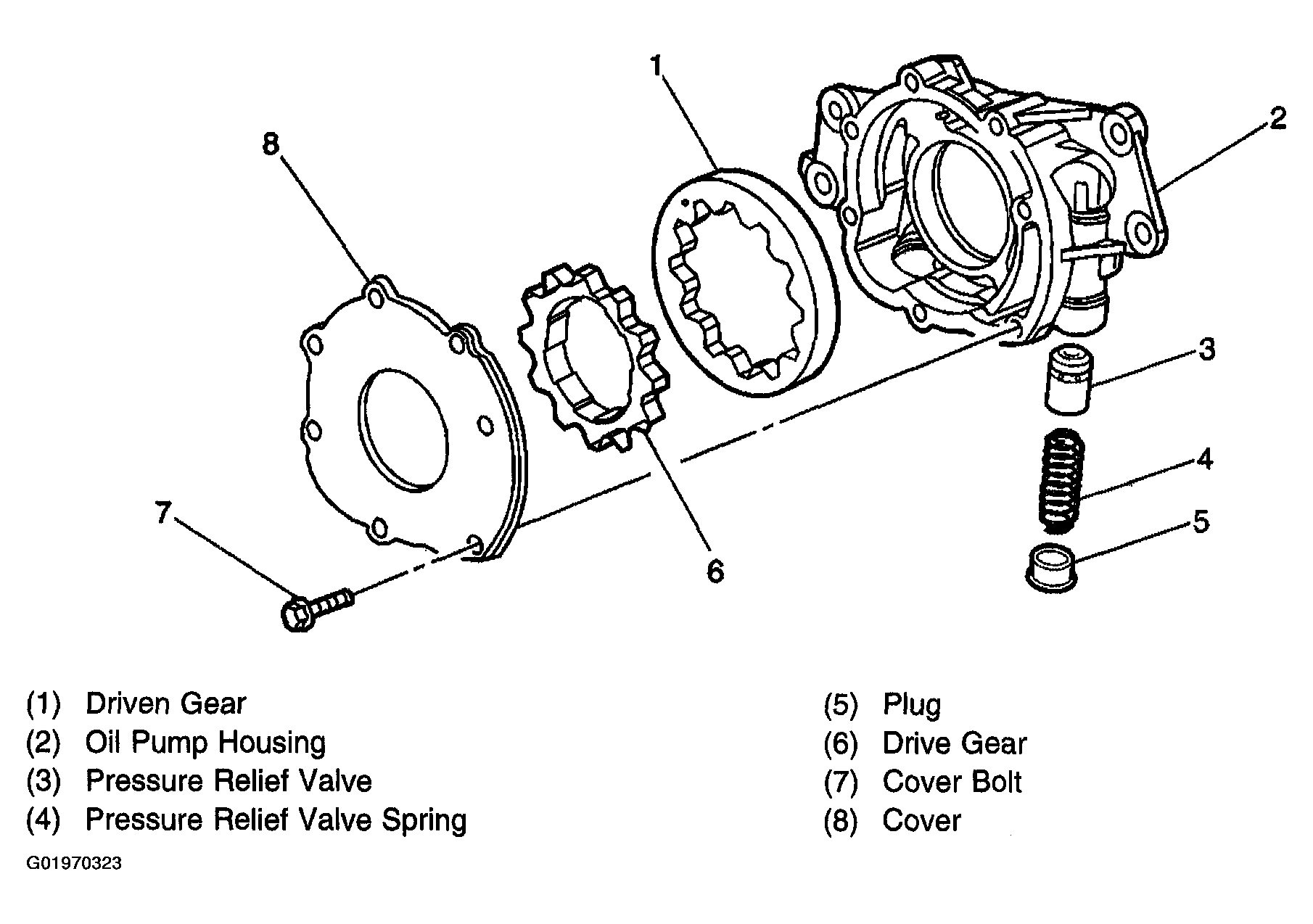

Fig 6: Oil Pump Assembly Disassembled View
G01970323Courtesy of GENERAL MOTORS CORP.
