Cylinder Head-End View

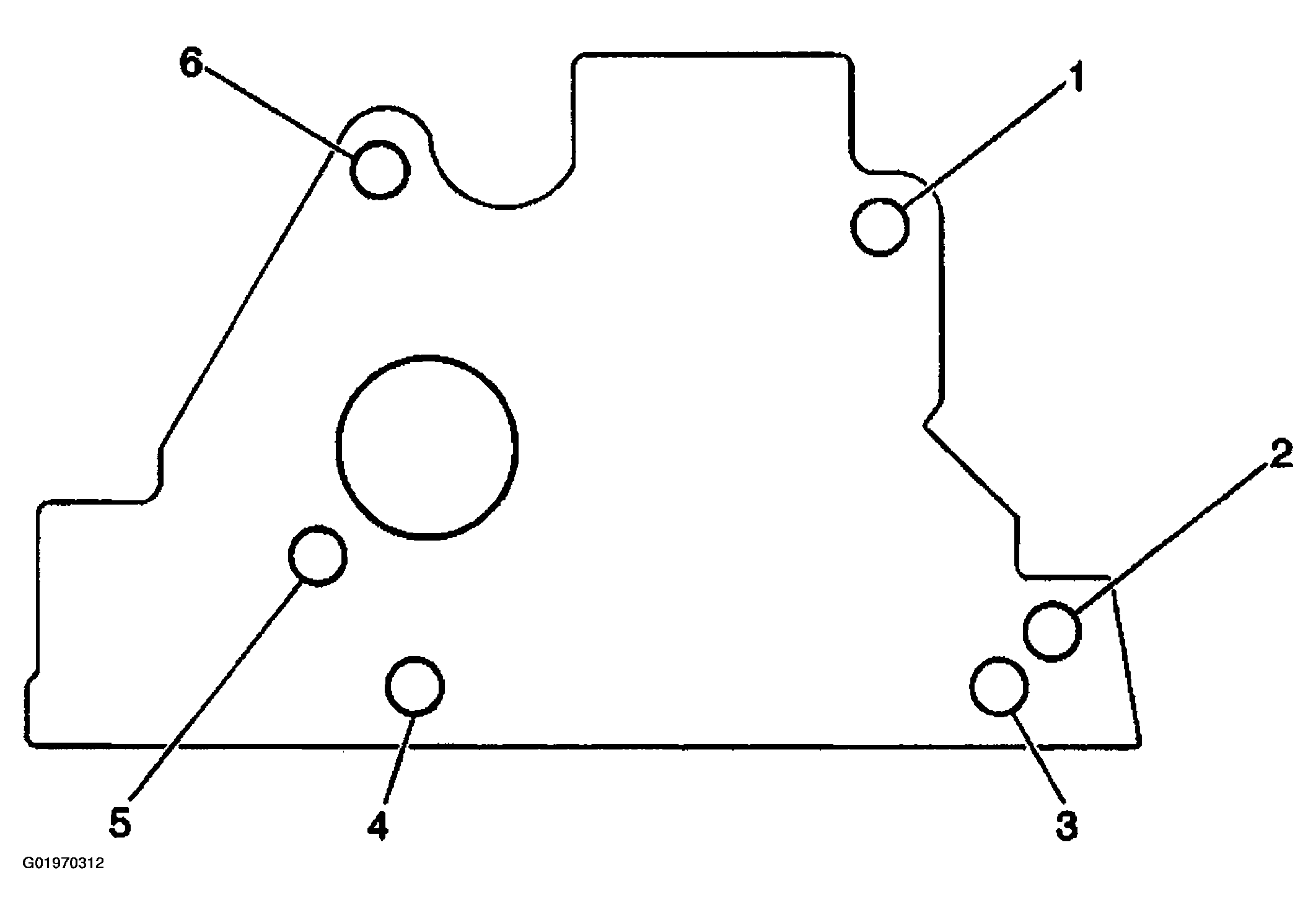

Fig 1: Component Location And Specifications - Cylinder Head-End View
G01970312Courtesy of GENERAL MOTORS CORP.
Fig 2: Component Location And Specifications - Cylinder Head-End View (Callouts)
G01970313Courtesy of GENERAL MOTORS CORP.
