Cylinder Head-Top View

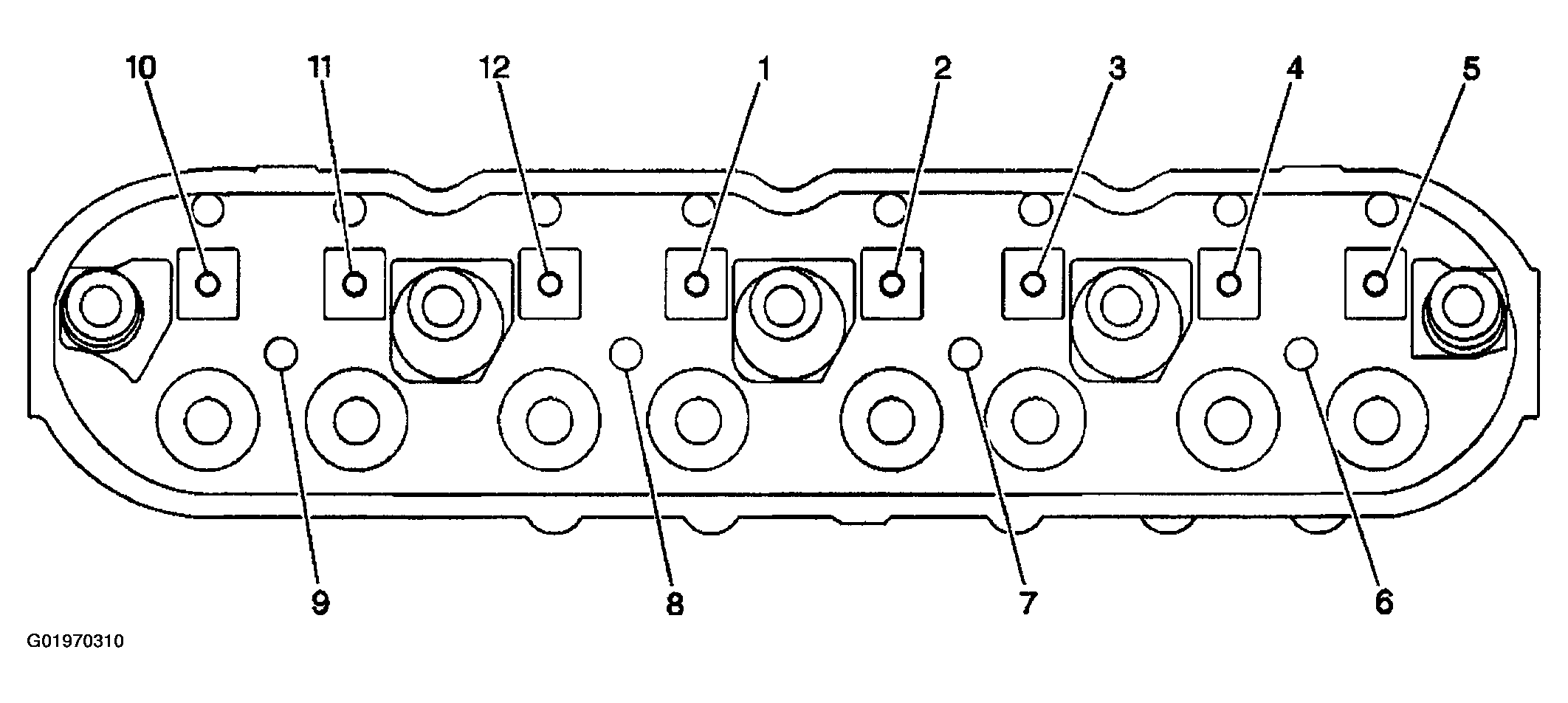

Fig 1: Component Location And Specifications - Cylinder Head-Top View
G01970310Courtesy of GENERAL MOTORS CORP.

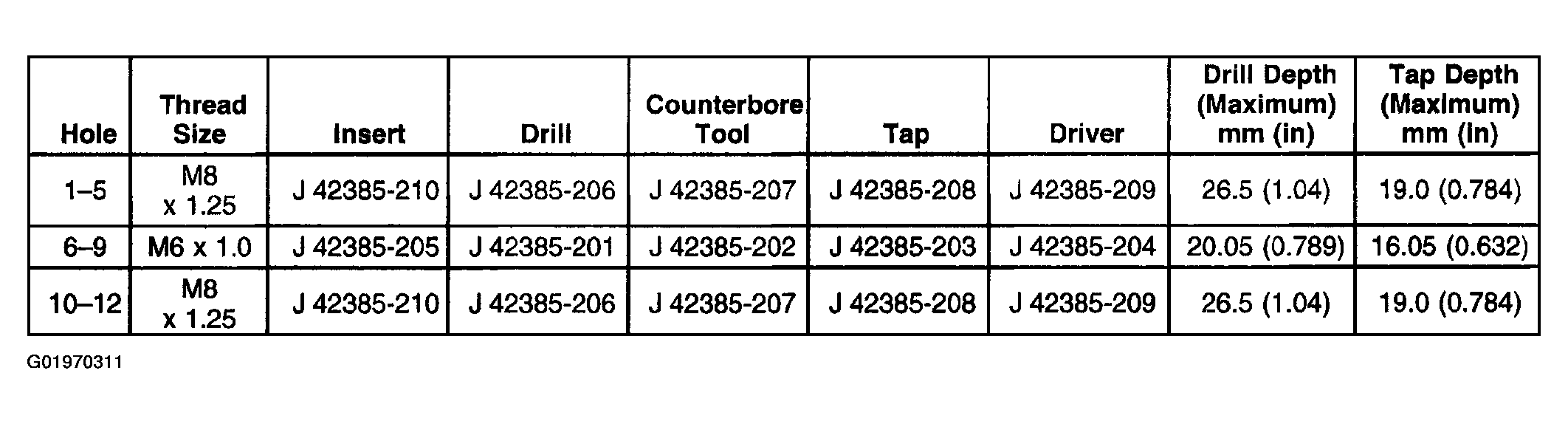

Fig 2: Component Location And Specifications - Cylinder Head-Top View (Callouts)
G01970311Courtesy of GENERAL MOTORS CORP.
