Removal Procedure

  1. Remove the folding top. Refer to FOLDING TOP REPLACEMENT in Roof.

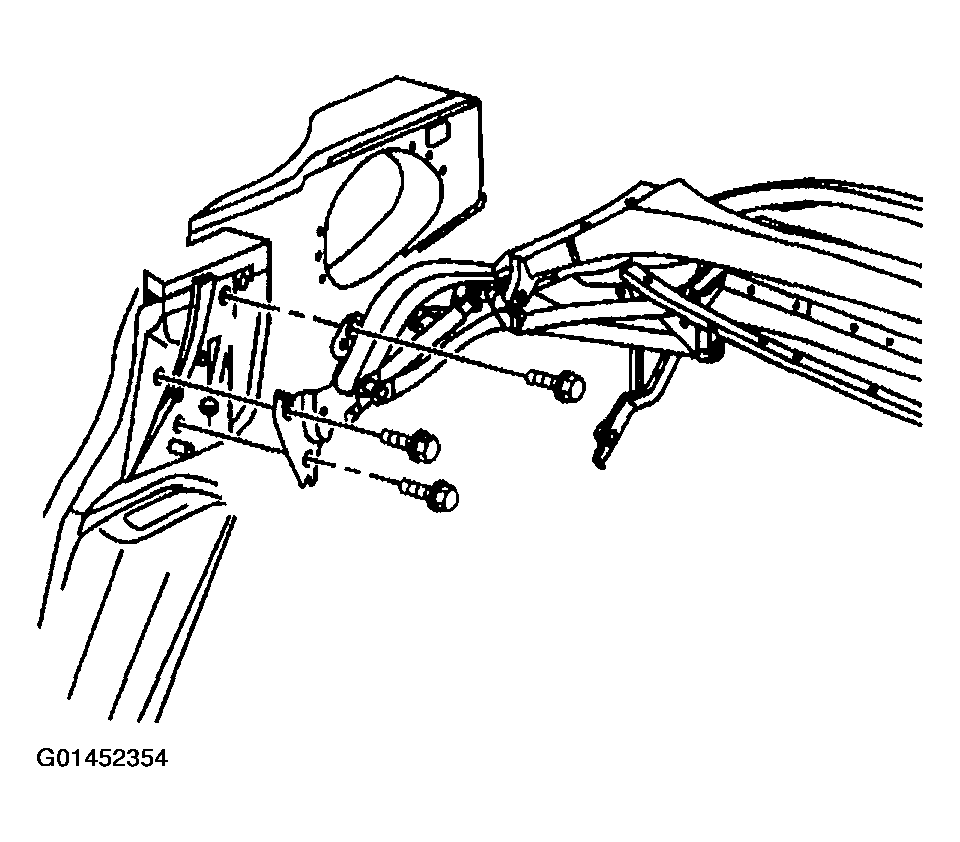

    Fig 1: Removing Folding Top
    G01452354Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts attaching the shoulder harness guide bracket.

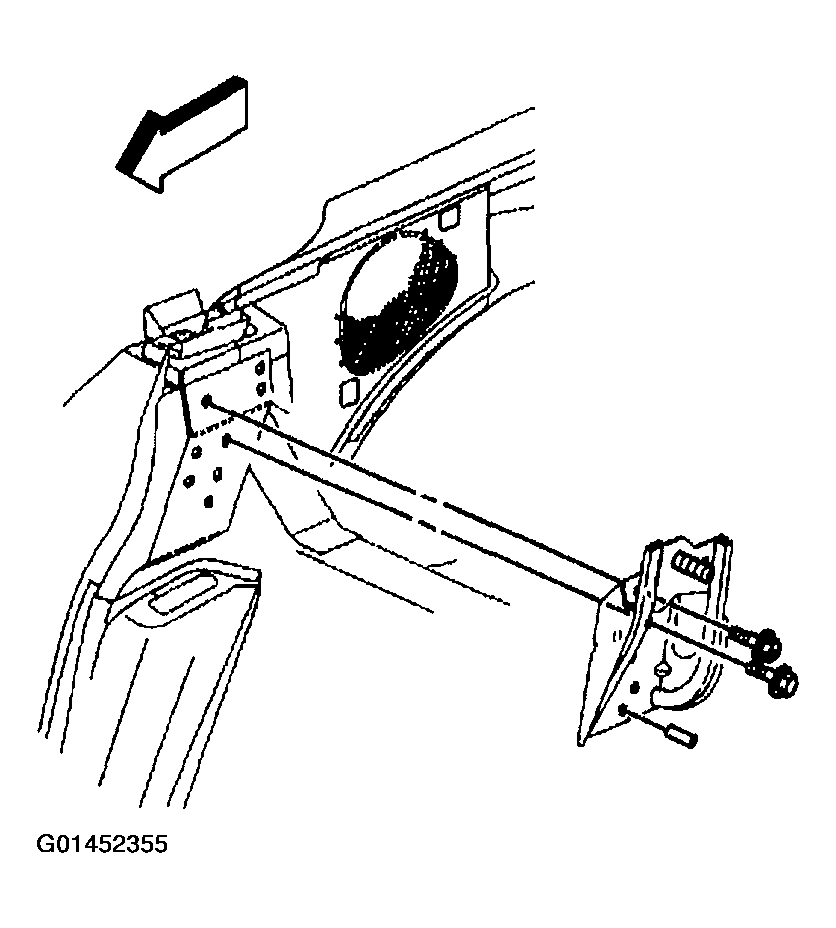

    Fig 2: Removing Bolts Attaching Shoulder Harness Guide Bracket
    G01452355Courtesy of GENERAL MOTORS CORP.
  3. Remove the bracket.
