Installation Procedure

Install the power steering pressure hose (2) to the vehicle.

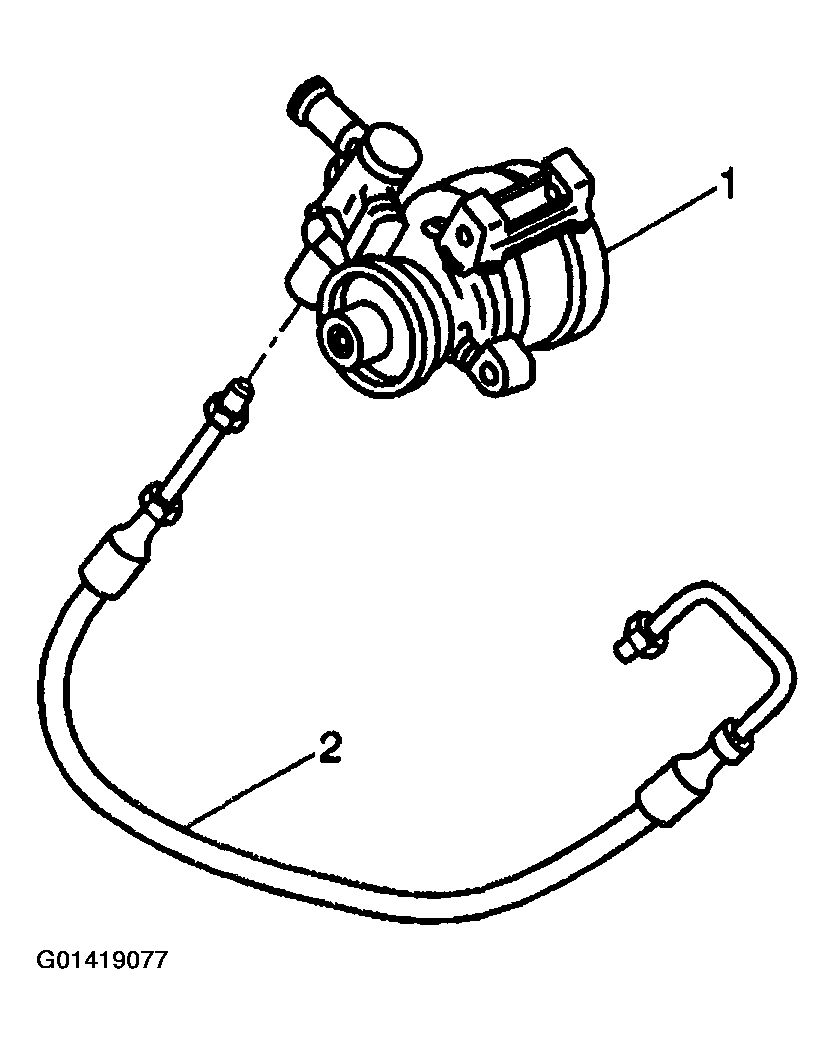

Fig 1: Installing Power Steering Pressure Hose
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the power steering pressure hose (2) to the power steering gear.
Tighten

Tighten the fitting to 27 N.m (20 lb ft)
Install the power steering pressure hose (2) to the power steering pump (1).
Tighten

Tighten the fitting to 27 N.m (20 lb ft)
Lower the vehicle.
Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
