Installation Procedure

Install the power steering fluid reservoir bracket (5) into the vehicle.

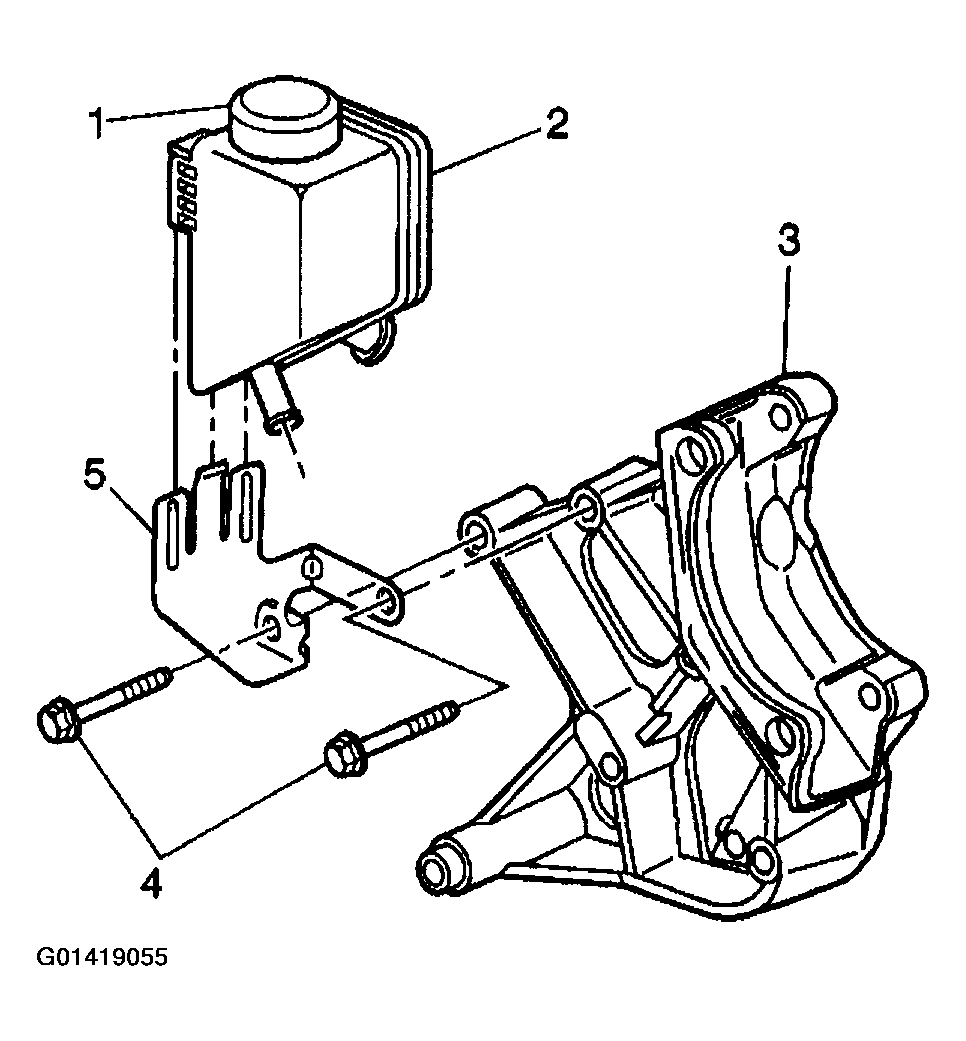

Fig 1: Installing Power Steering Fluid Reservoir Bracket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts (4) to the power steering fluid reservoir bracket (5).
Tighten

Tighten the bolts to 50 N.m (37 lb ft)
Install the power steering fluid reservoir. Refer to REMOTE POWER STEERING FLUID RESERVOIR REPLACEMENT .
Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
