Removal Procedure

  1. Remove the upper and lower steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (TELESCOPING)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL)  .

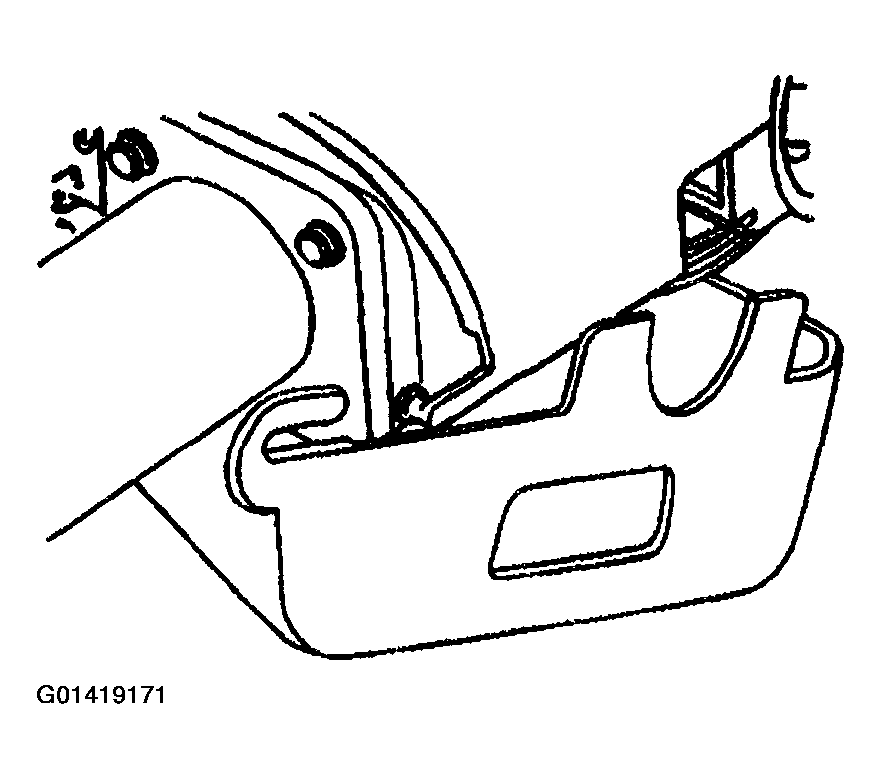

    Fig 1: Removing Lower Steering Column Trim Cover
    G01419171Courtesy of GENERAL MOTORS CORP.
  2. Remove the wire harness straps (2) from the steering column tilt head assembly (1) and the column.

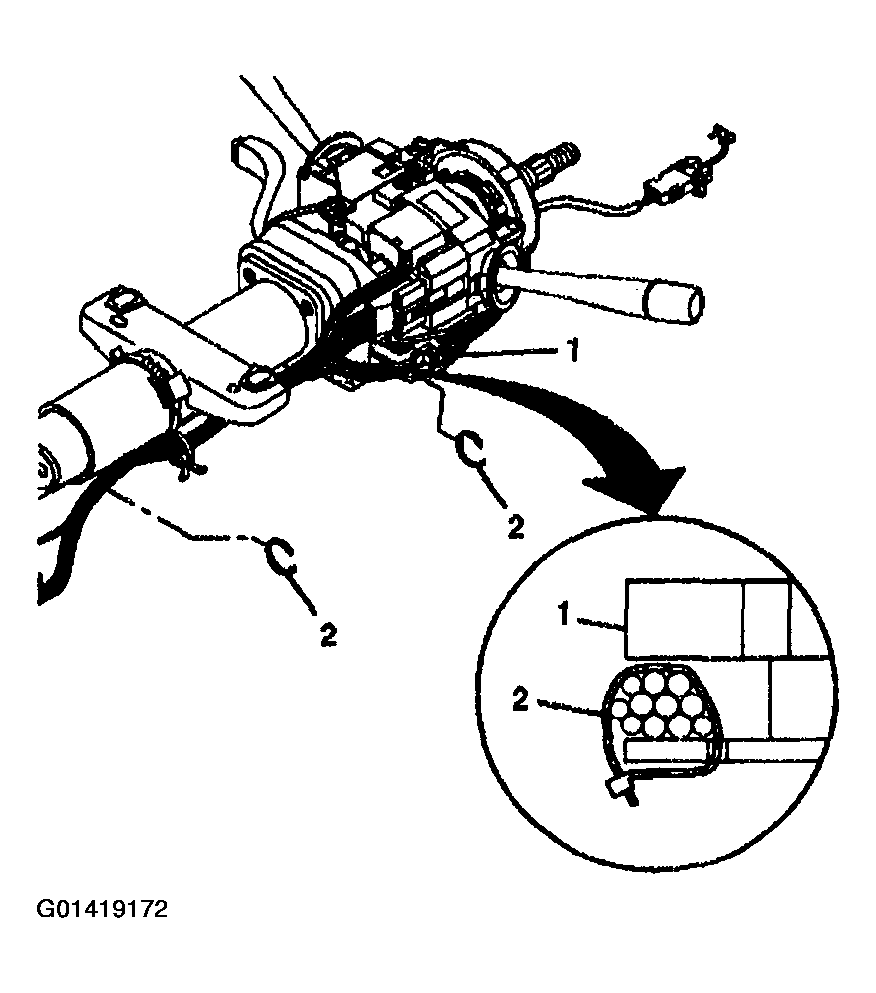

    Fig 2: Removing Wire Harness Straps From Steering Column Tilt Head Assembly
    G01419172Courtesy of GENERAL MOTORS CORP.
  3. Remove the wire harness assembly (1) from the wire harness strap (2).

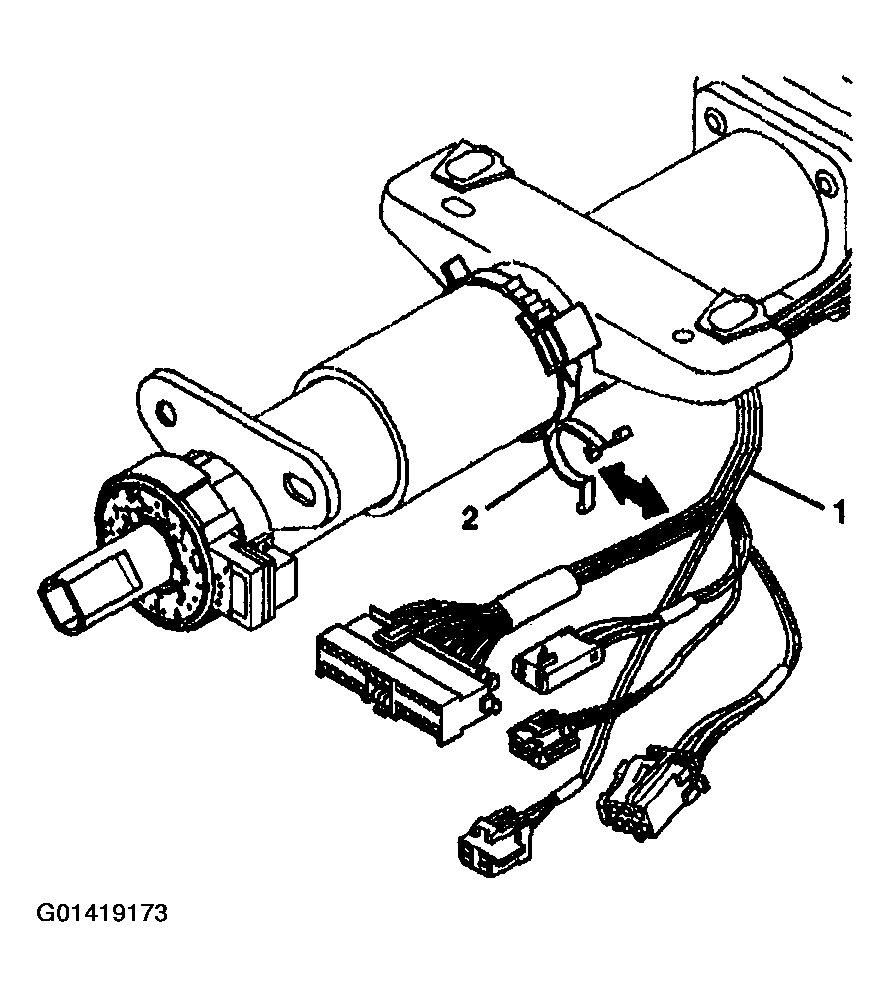

    Fig 3: Removing Wire Harness Assembly From Wire Harness Strap
    G01419173Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 pan head tapping screws (1).

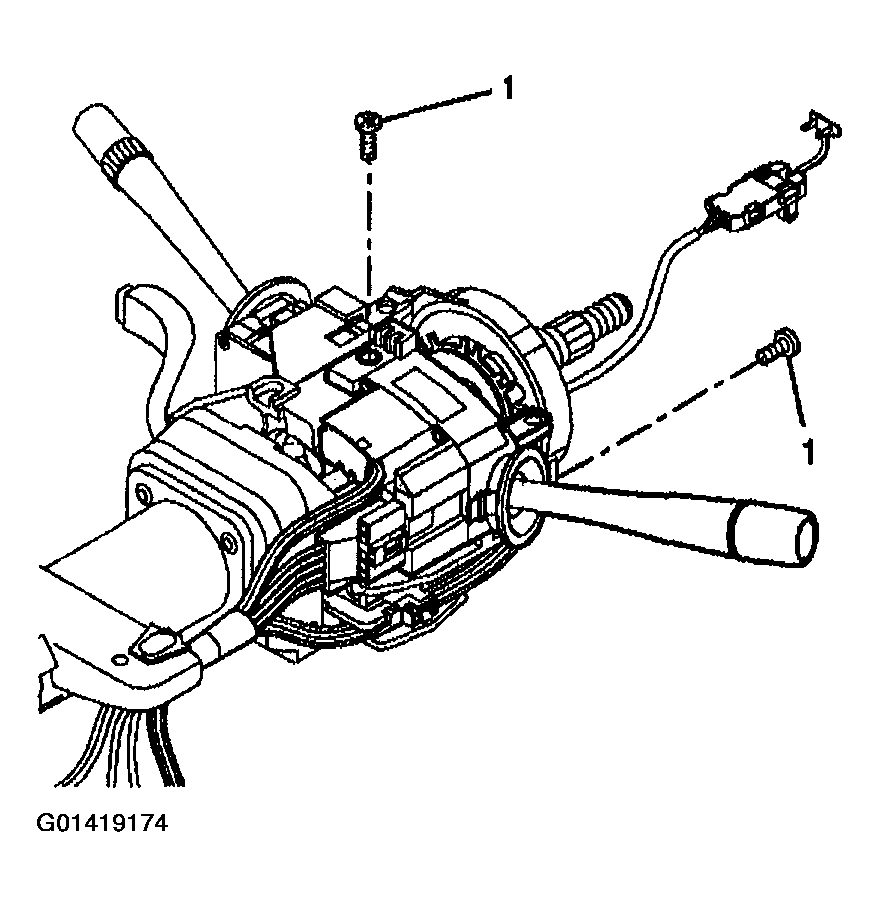

    Fig 4: Removing Pan Head Tapping Screws
    G01419174Courtesy of GENERAL MOTORS CORP.
  5. Remove the multifunction turn signal switch assembly (1).

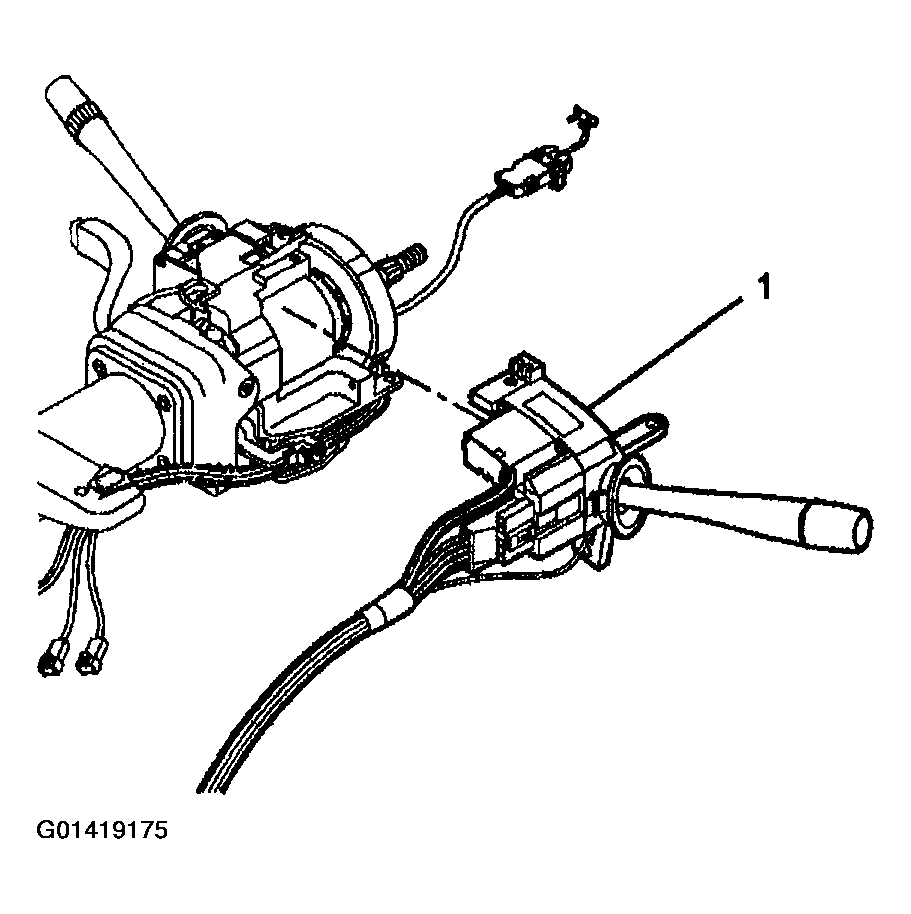

    Fig 5: Removing Multifunction Turn Signal Switch Assembly
    G01419175Courtesy of GENERAL MOTORS CORP.
