Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views

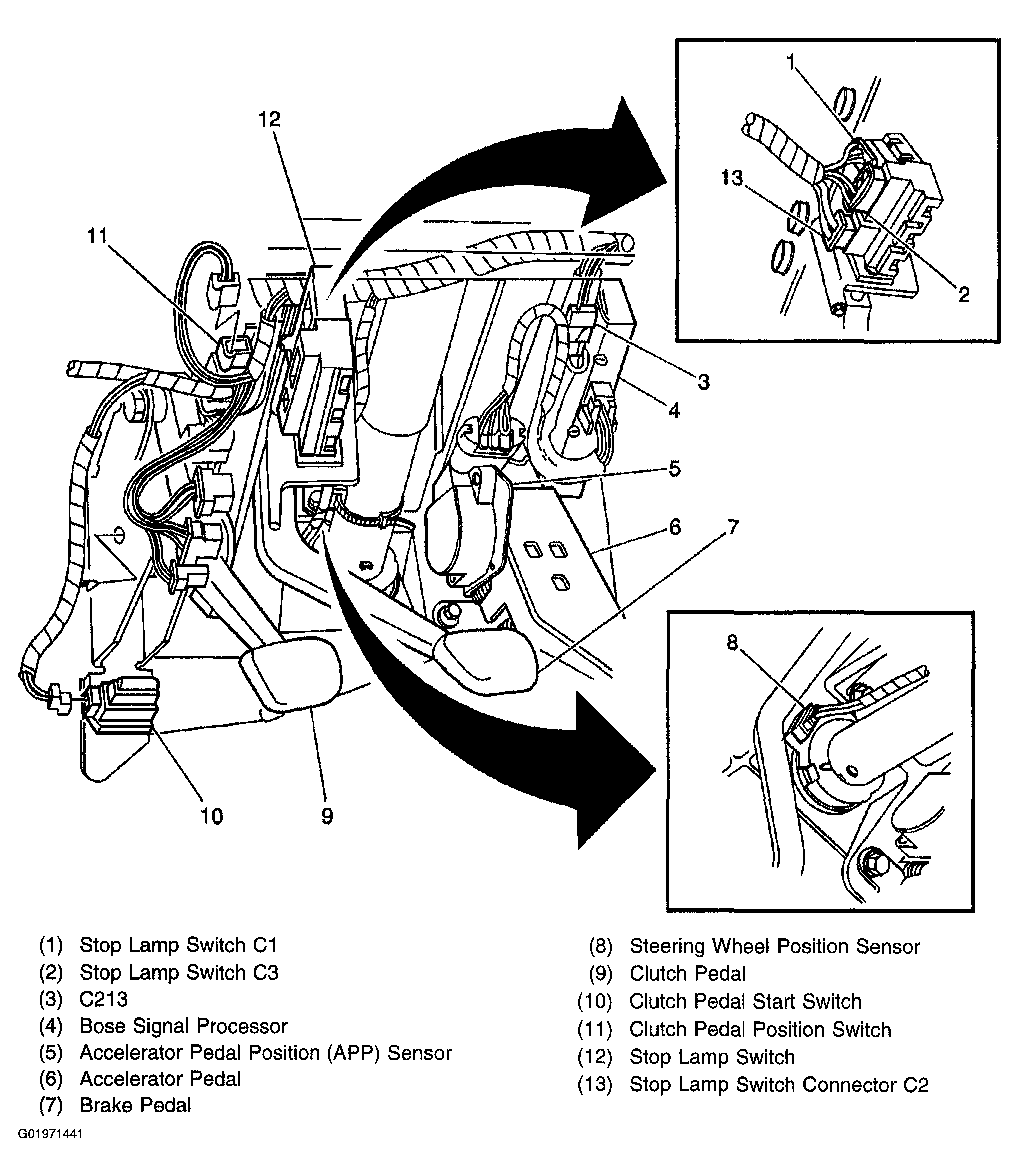

Fig 1: Under Side Of Dash-Left
Courtesy of GENERAL MOTORS CORP.

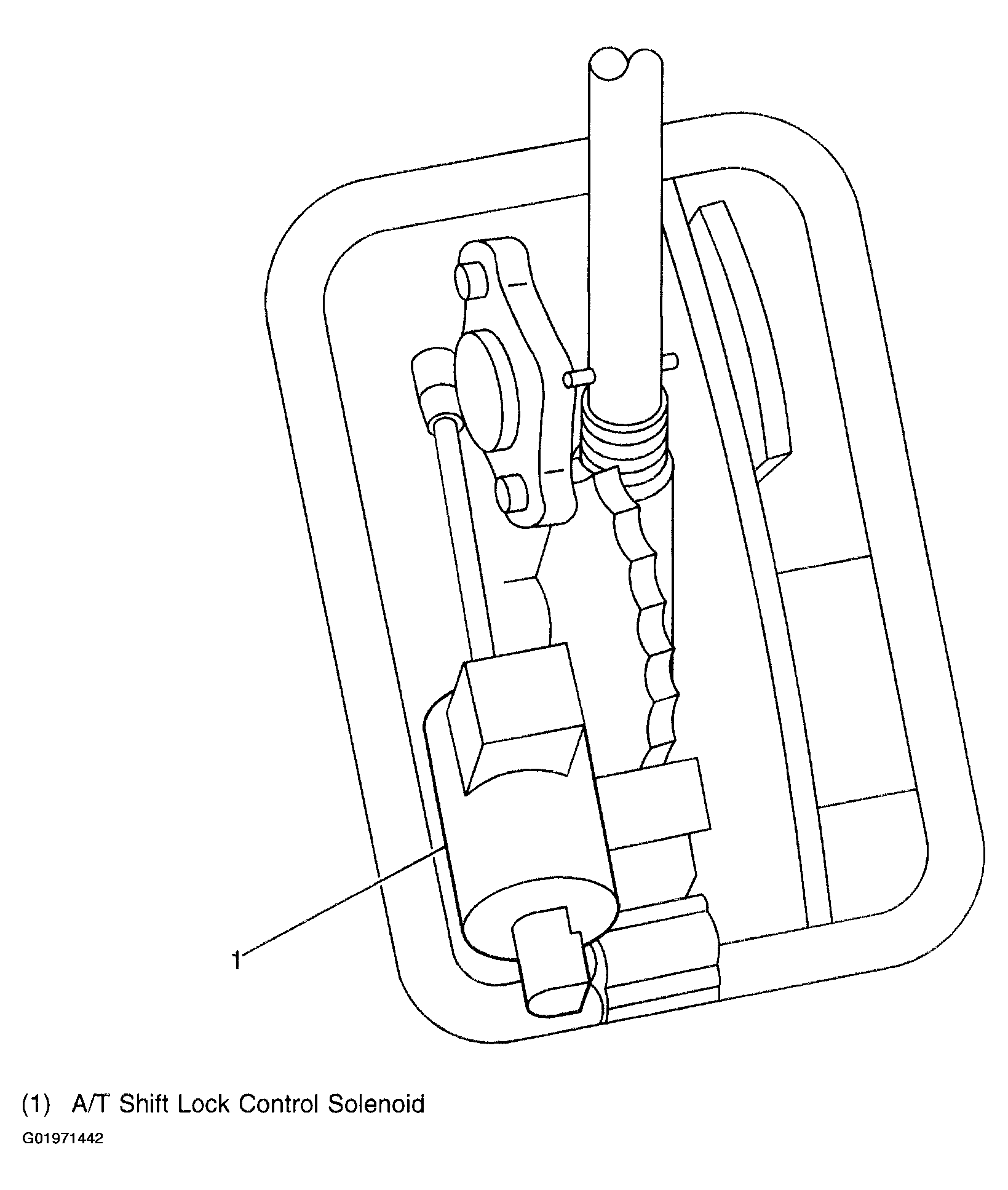

Fig 2: A/T Shift Lock Control Solenoid (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
