Engine Block-Bottom View

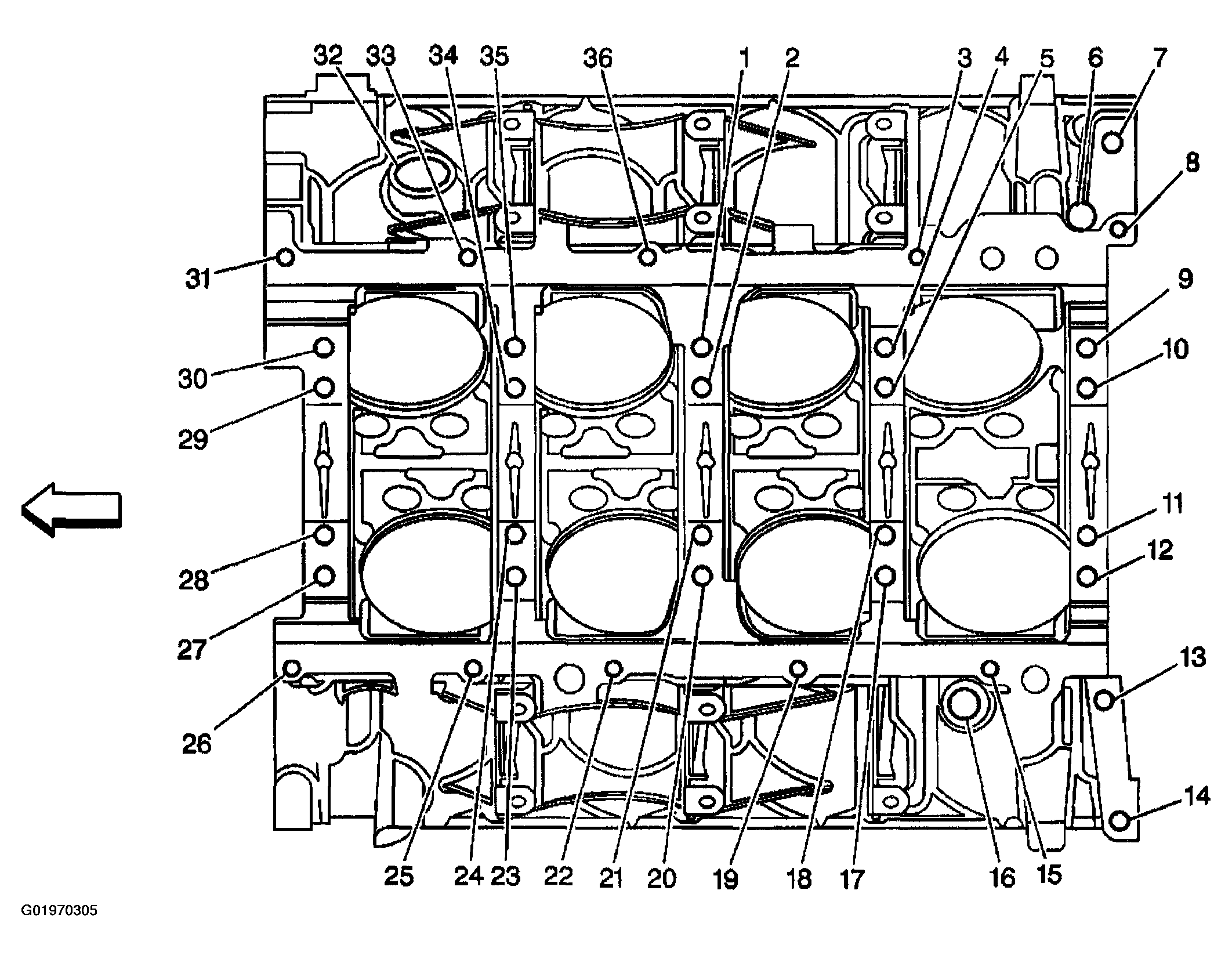

Fig 1: Component Location And Specifications - Engine Block-Bottom View
G01970305Courtesy of GENERAL MOTORS CORP.

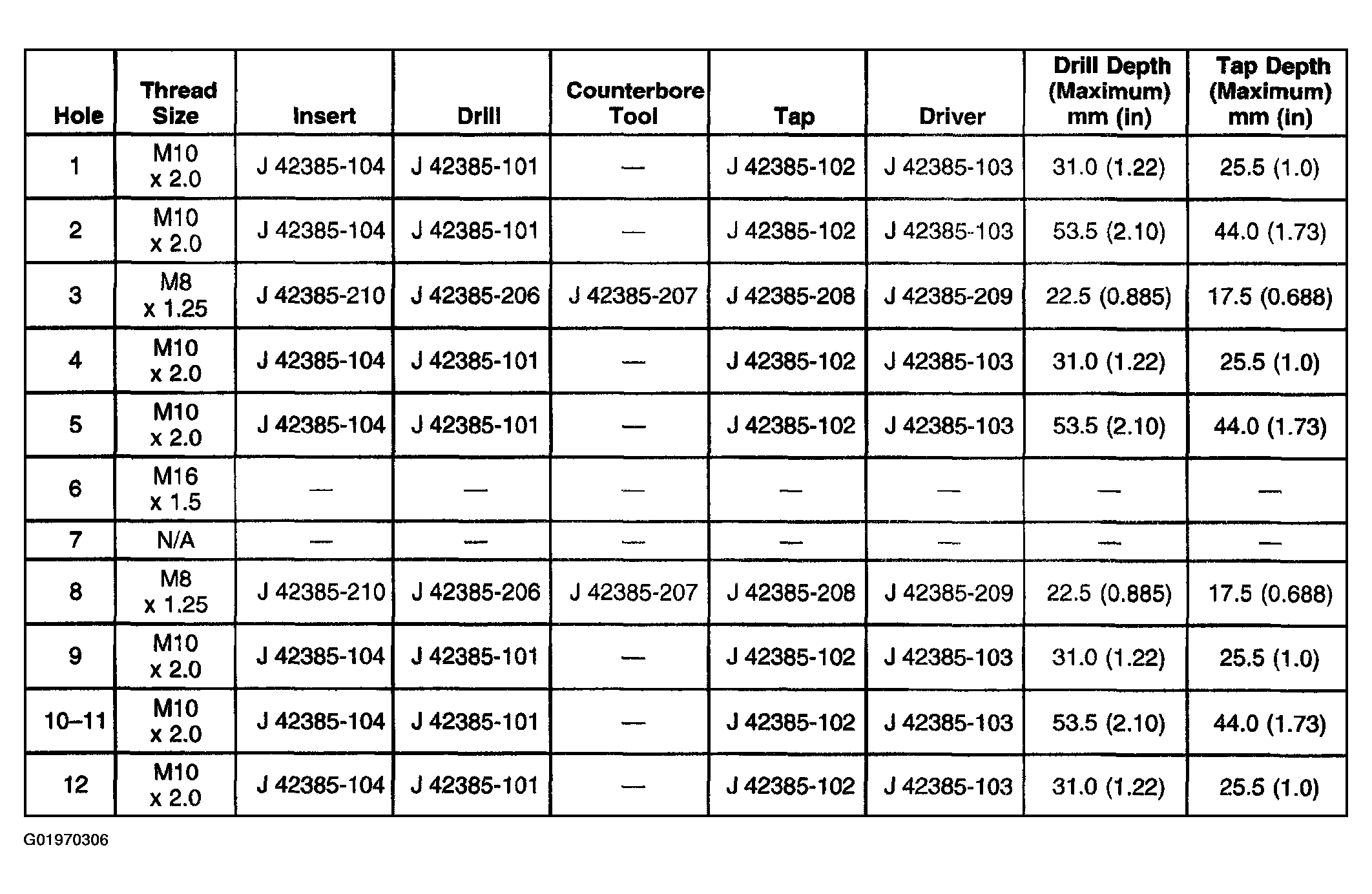

Fig 2: Component Location And Specifications - Engine Block-Bottom View (Callouts 1-12)
G01970306Courtesy of GENERAL MOTORS CORP.

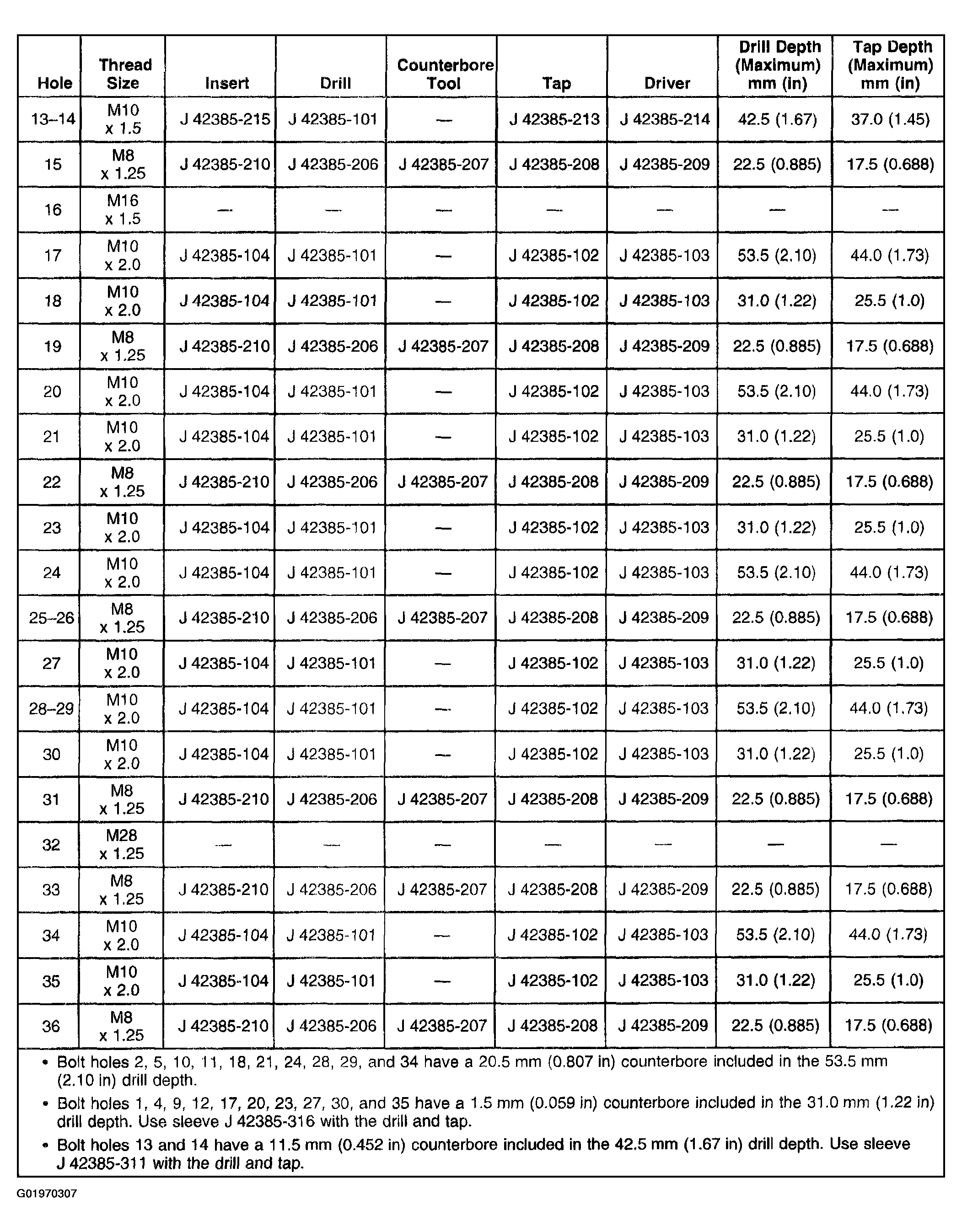

Fig 3: Component Location And Specifications - Engine Block-Bottom View (Callouts 13-36)
G01970307Courtesy of GENERAL MOTORS CORP.
