Engine Block-Front View

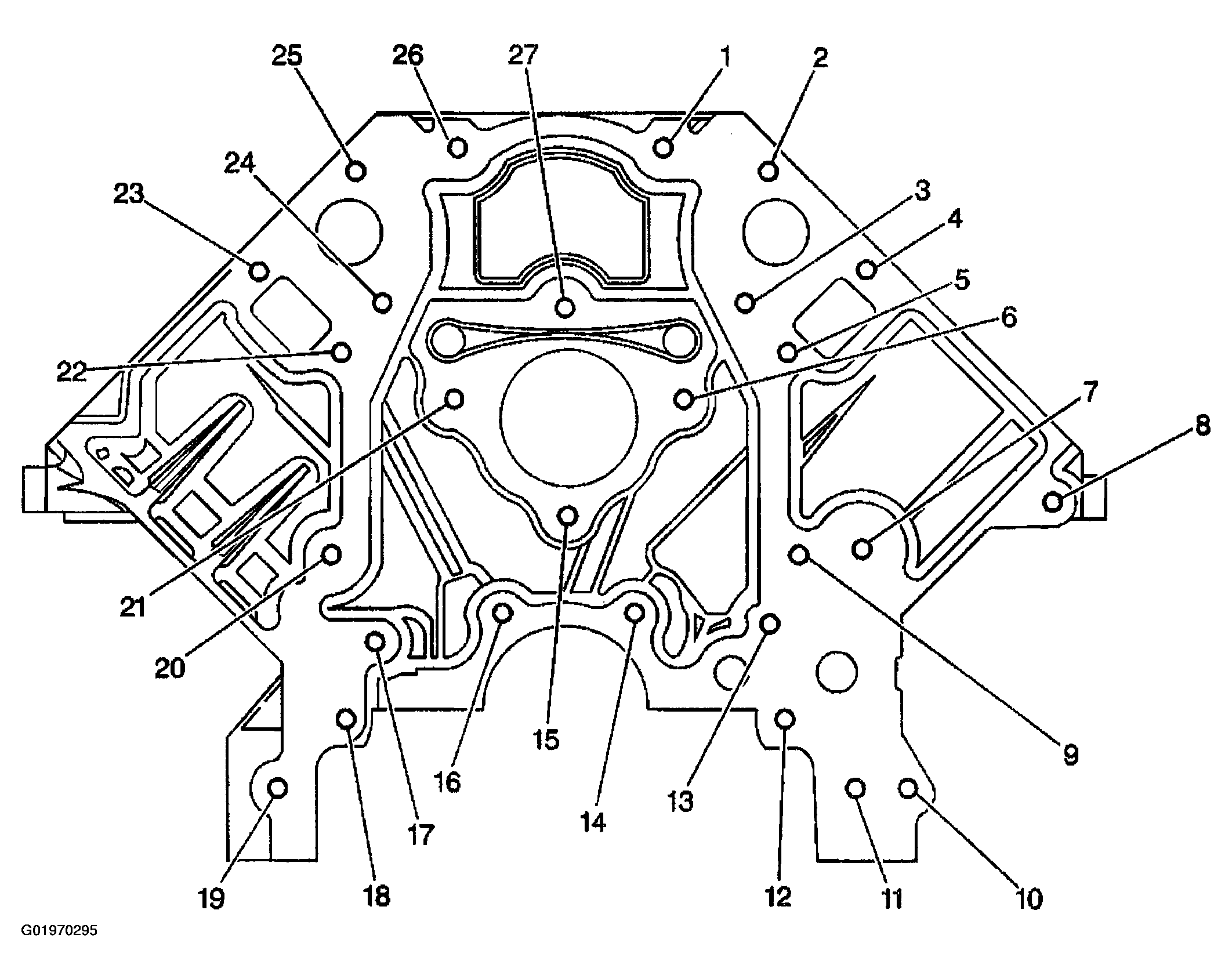

Fig 1: Component Location And Specifications - Engine Block-Front View
G01970295Courtesy of GENERAL MOTORS CORP.

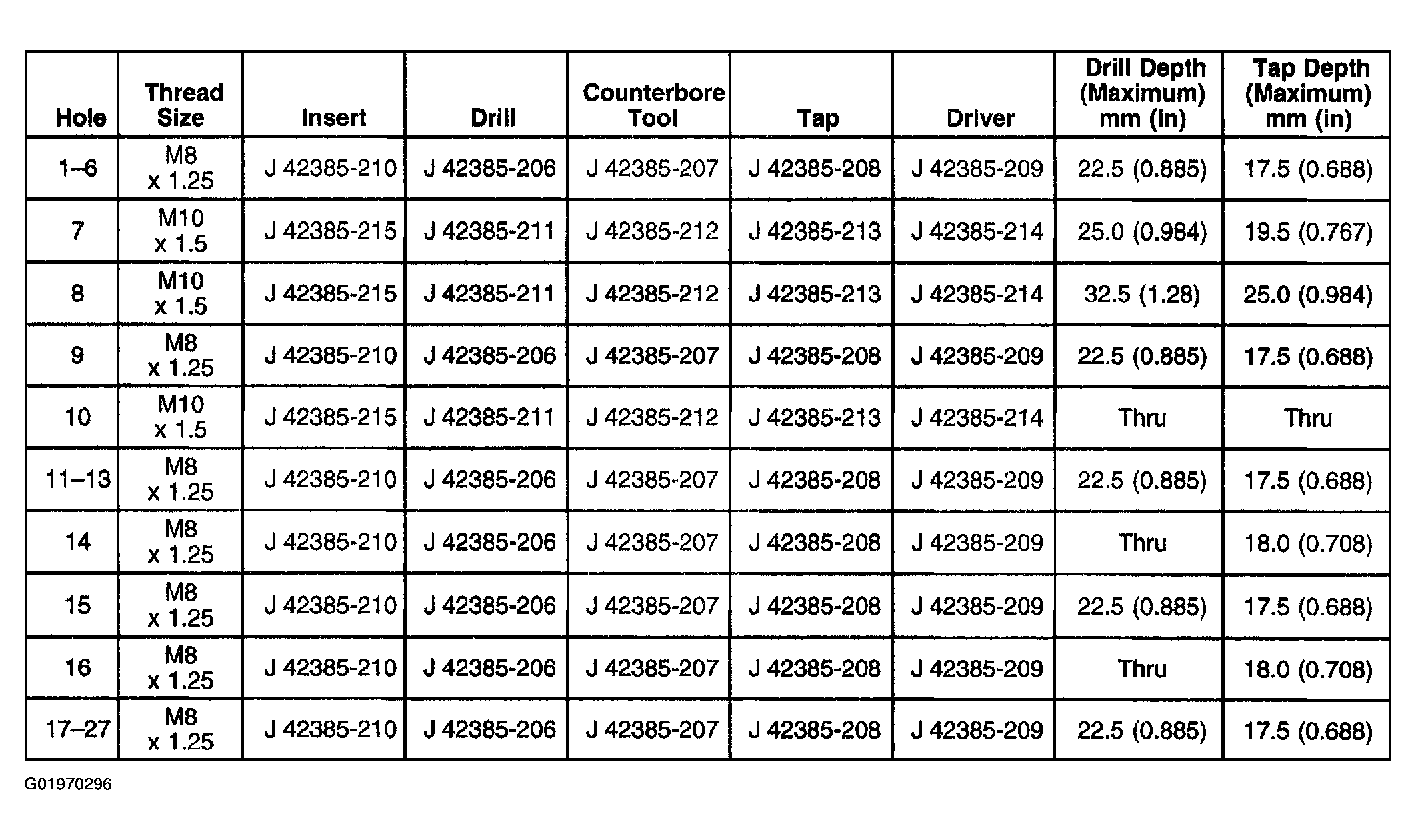

Fig 2: Component Location And Specifications - Engine Block-Front View (Callouts)
G01970296Courtesy of GENERAL MOTORS CORP.
