Engine Block-Left Side View

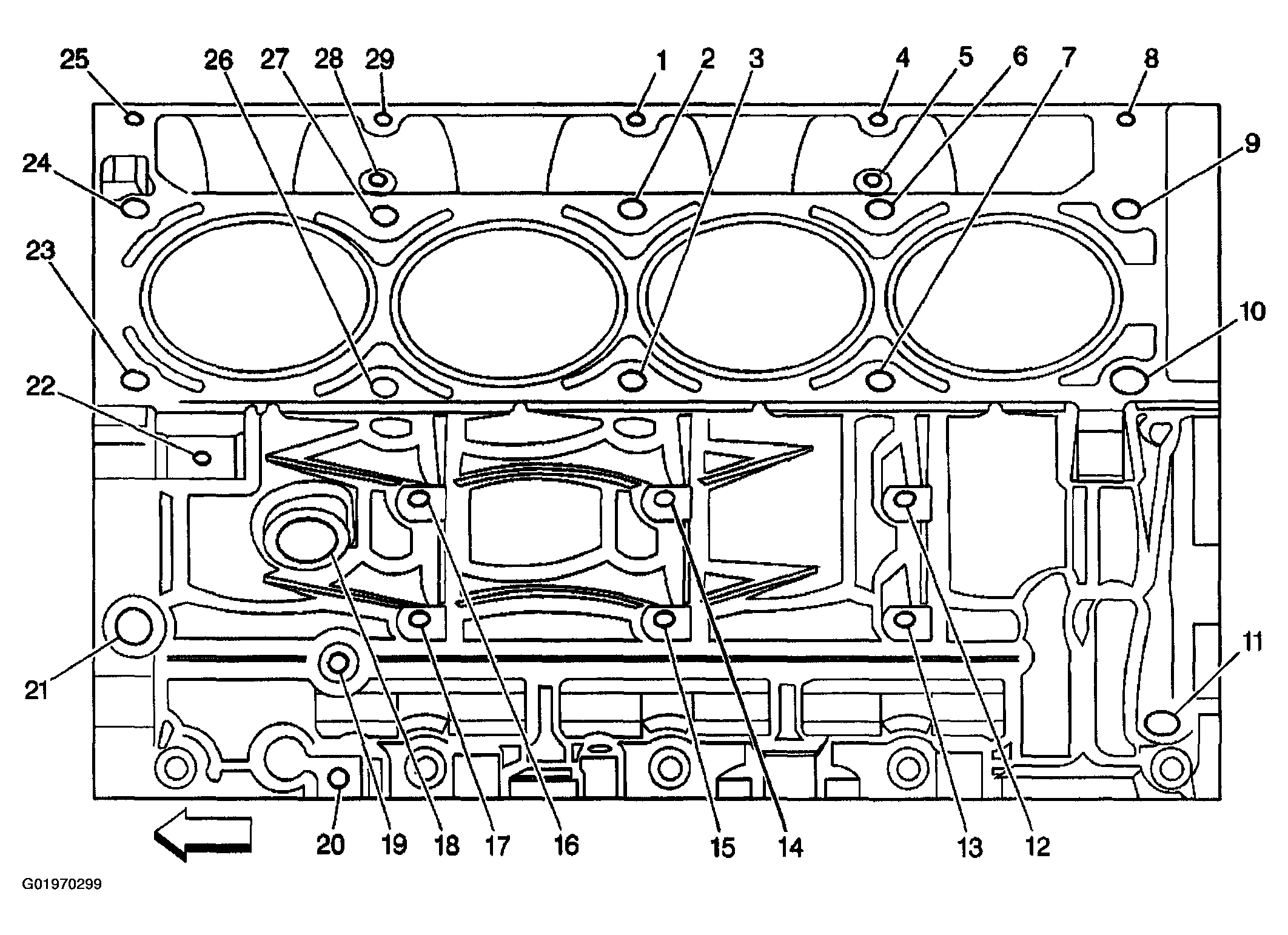

Fig 1: Component Location And Specifications - Engine Block-Left Side View
G01970299Courtesy of GENERAL MOTORS CORP.

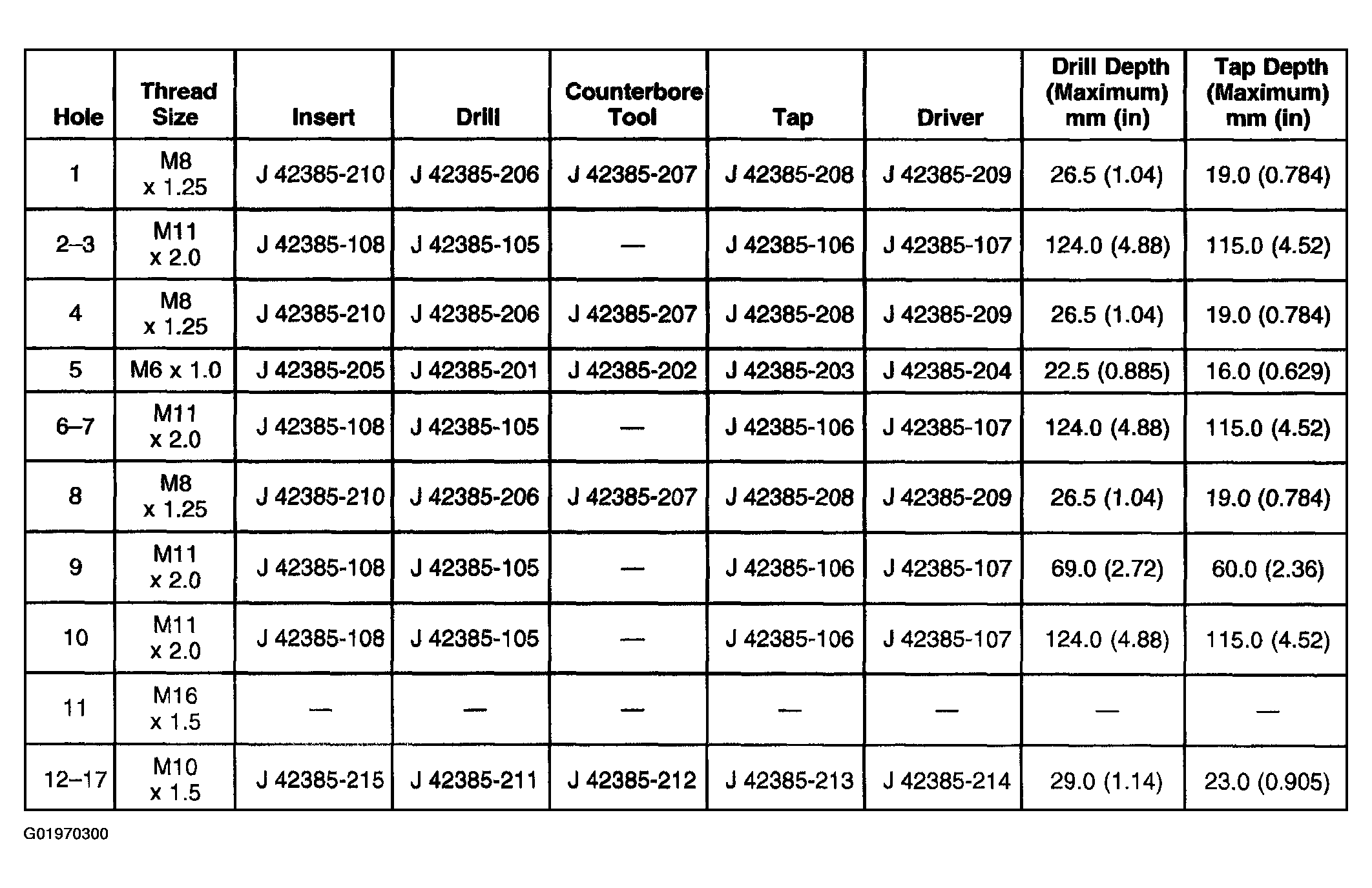

Fig 2: Component Location And Specifications - Engine Block-Left Side View (Callouts)
G01970300Courtesy of GENERAL MOTORS CORP.
