Engine Block-Right Side View

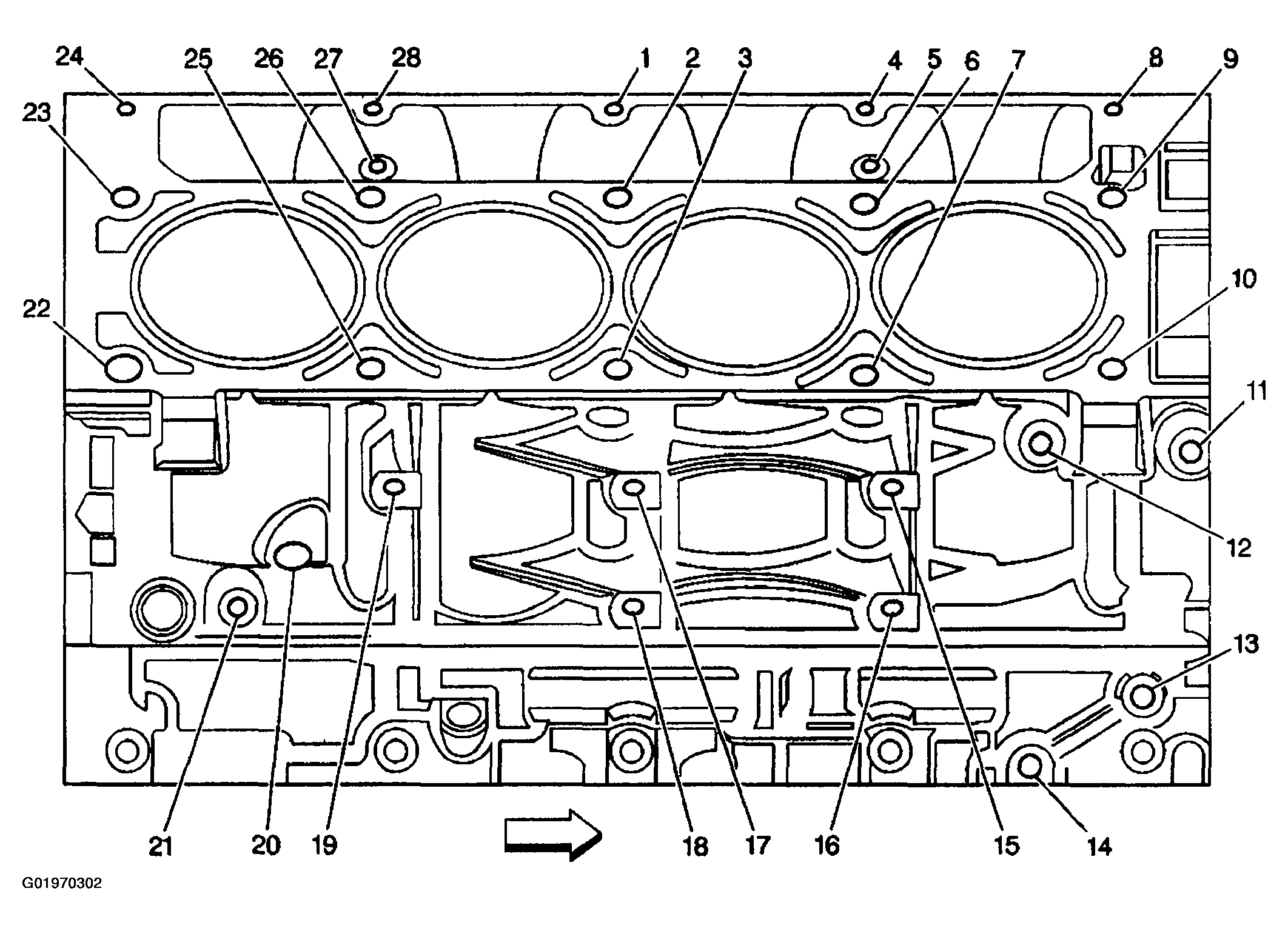

Fig 1: Component Location And Specifications - Engine Block-Right Side View
G01970302Courtesy of GENERAL MOTORS CORP.

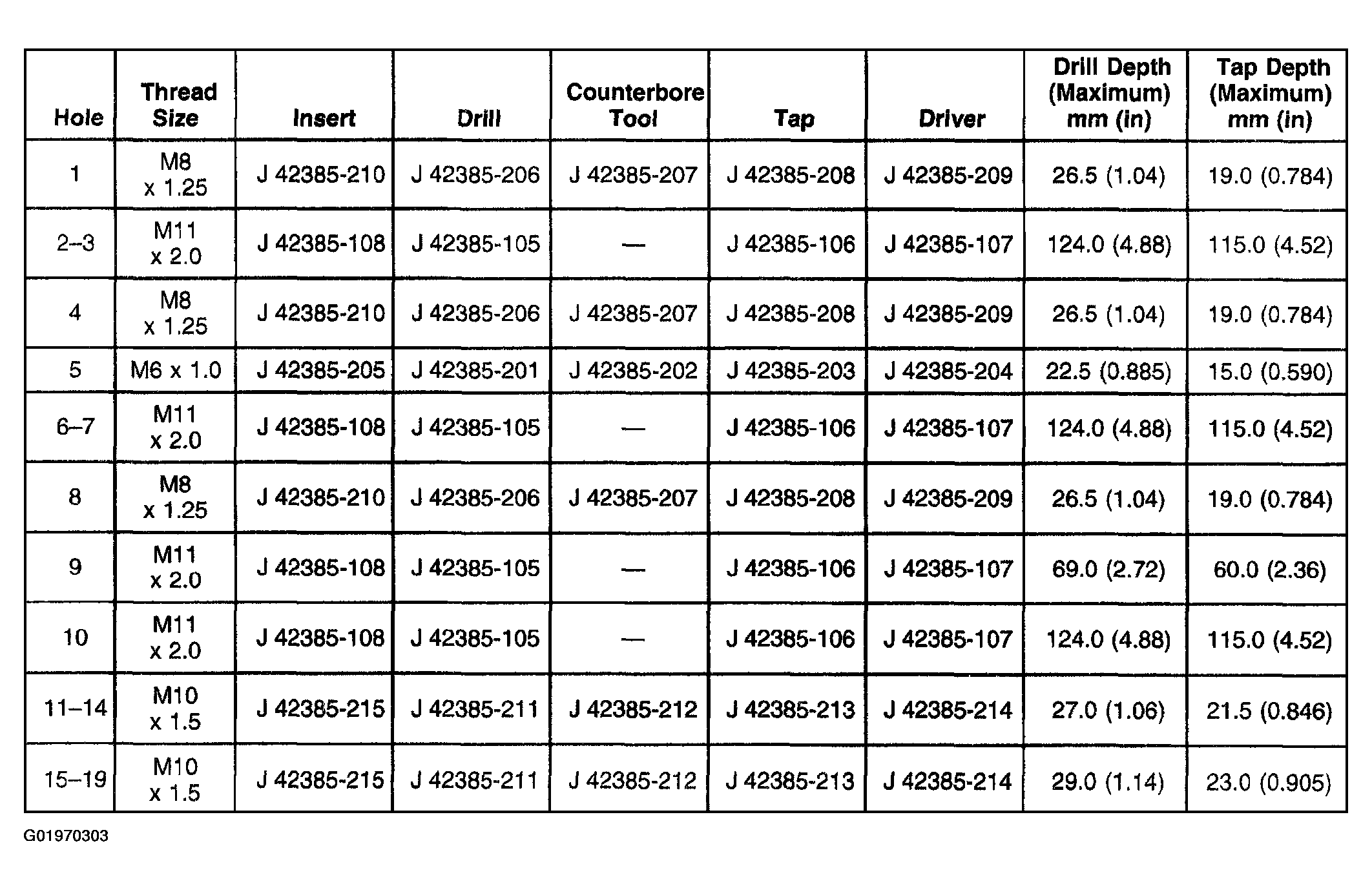

Fig 2: Component Location And Specifications - Engine Block-Right Side View (Callouts)
G01970303Courtesy of GENERAL MOTORS CORP.
