Engine Block-Top View

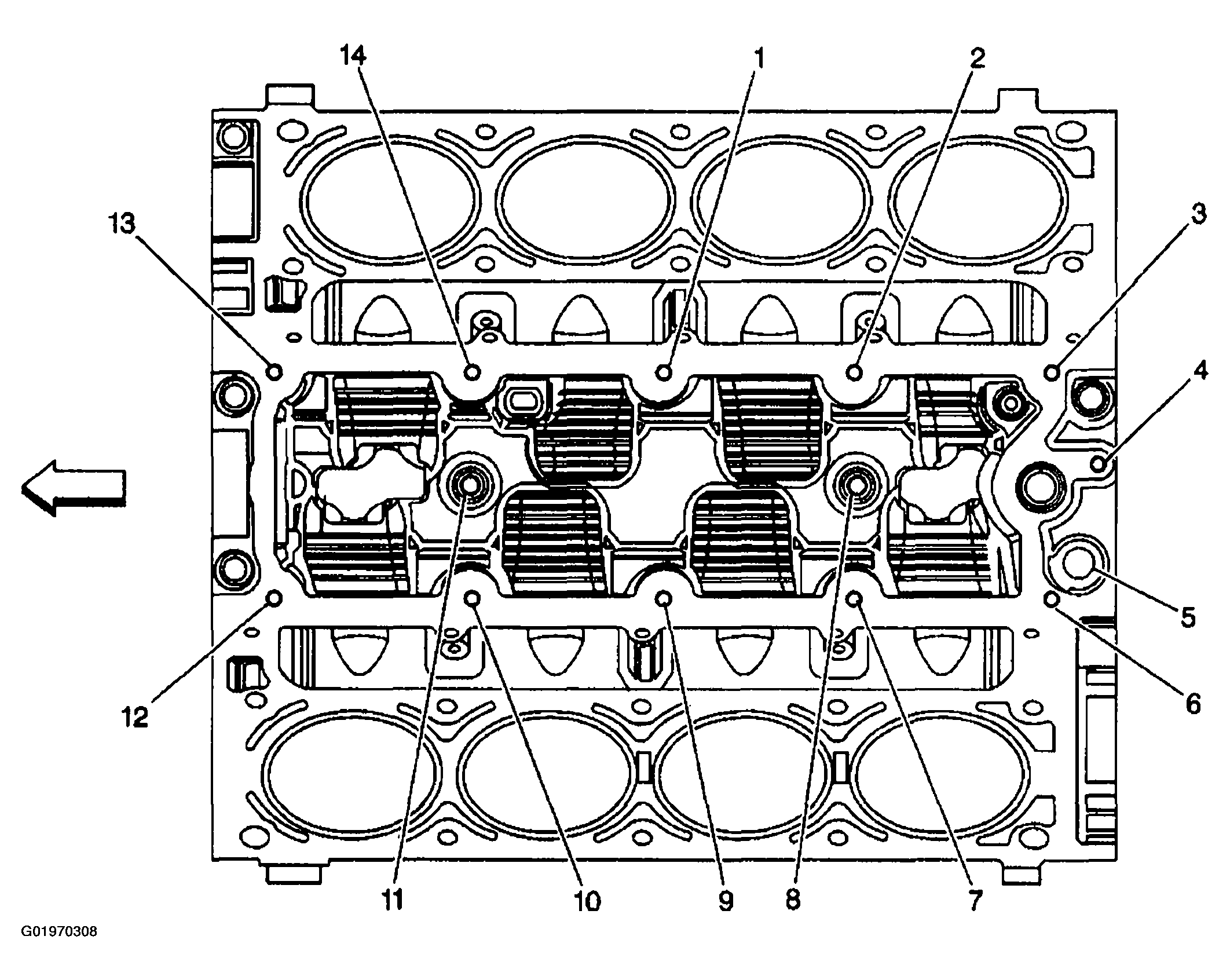

Fig 1: Component Location And Specifications - Engine Block-Top View
G01970308Courtesy of GENERAL MOTORS CORP.

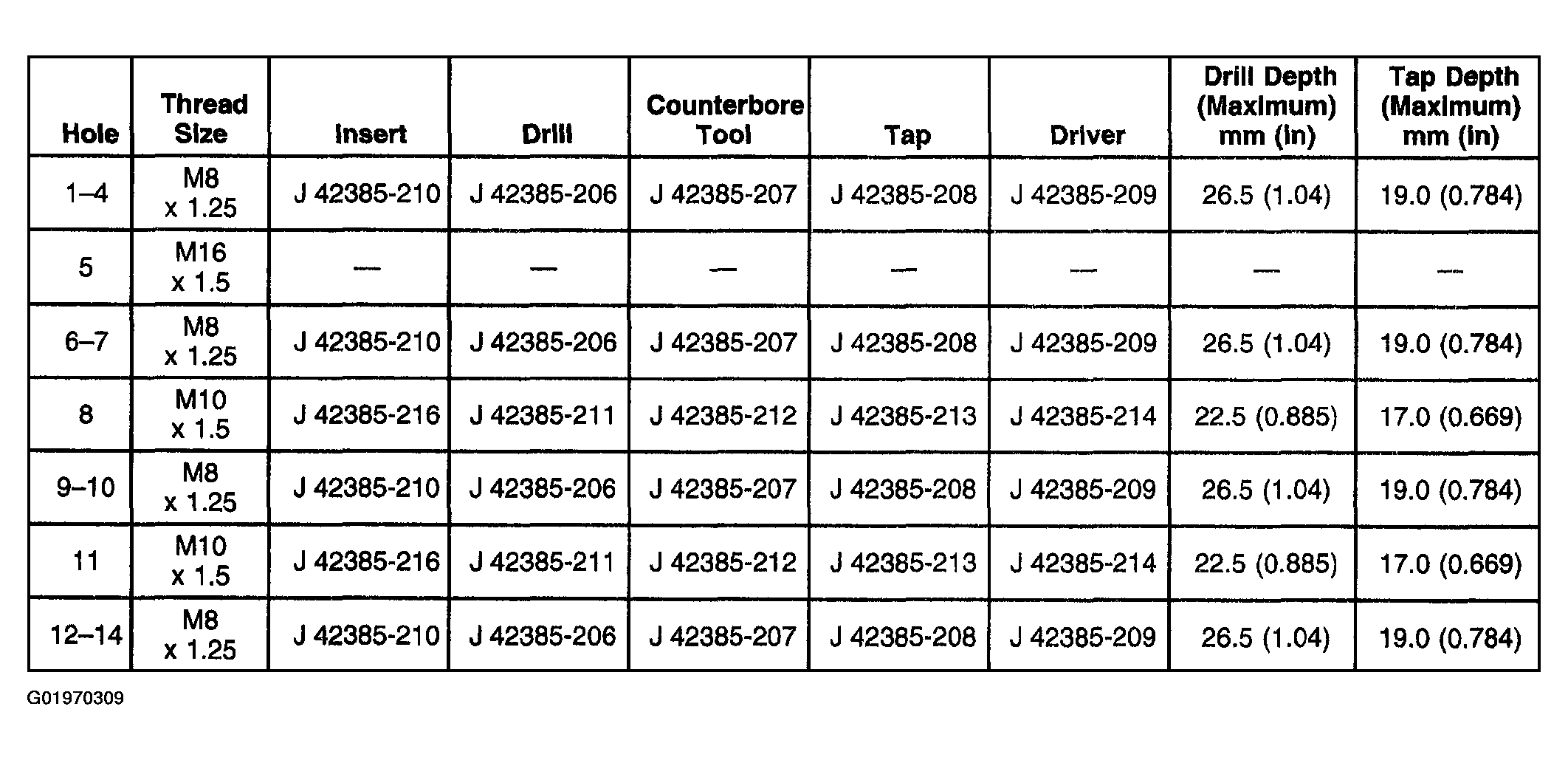

Fig 2: Component Location And Specifications - Engine Block-Top View (Callouts)
G01970309Courtesy of GENERAL MOTORS CORP.
