Cruise Control Schematics

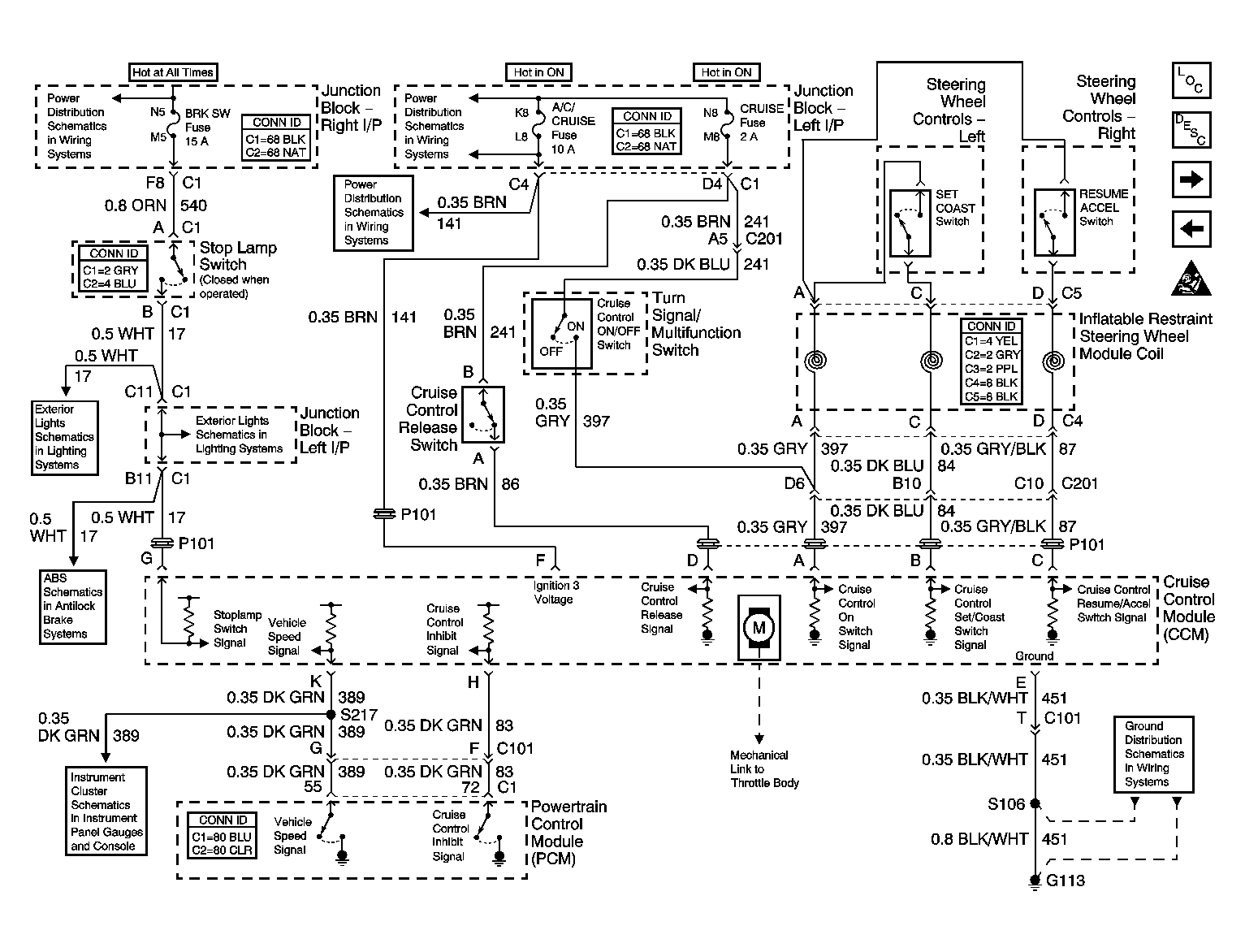

Fig 1: Cruise Control Schematic (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

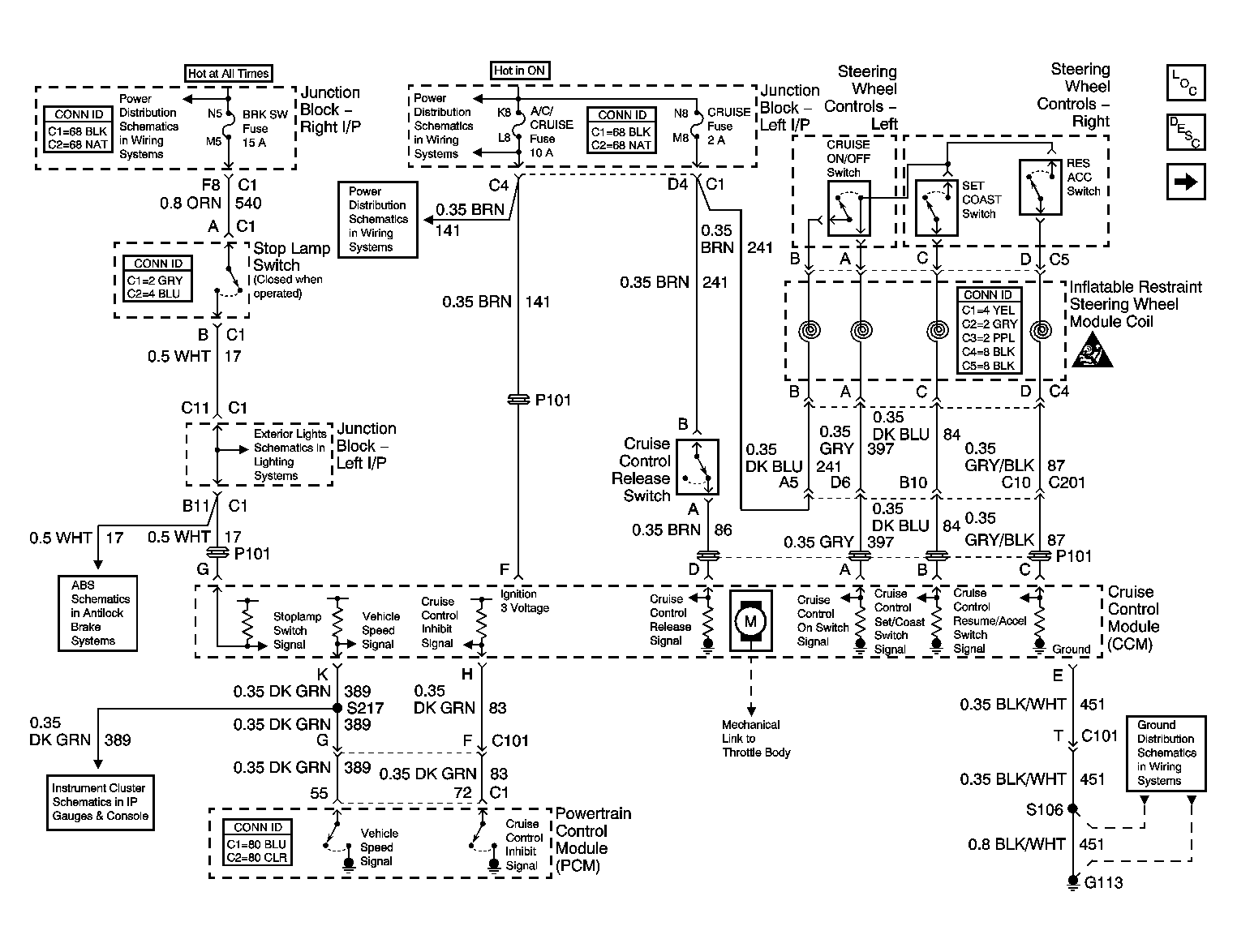

Fig 2: Cruise Control Schematic (Impala)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Indicator Control Schematic

Courtesy of GENERAL MOTORS CORP.
