Door Lock/Indicator Schematics

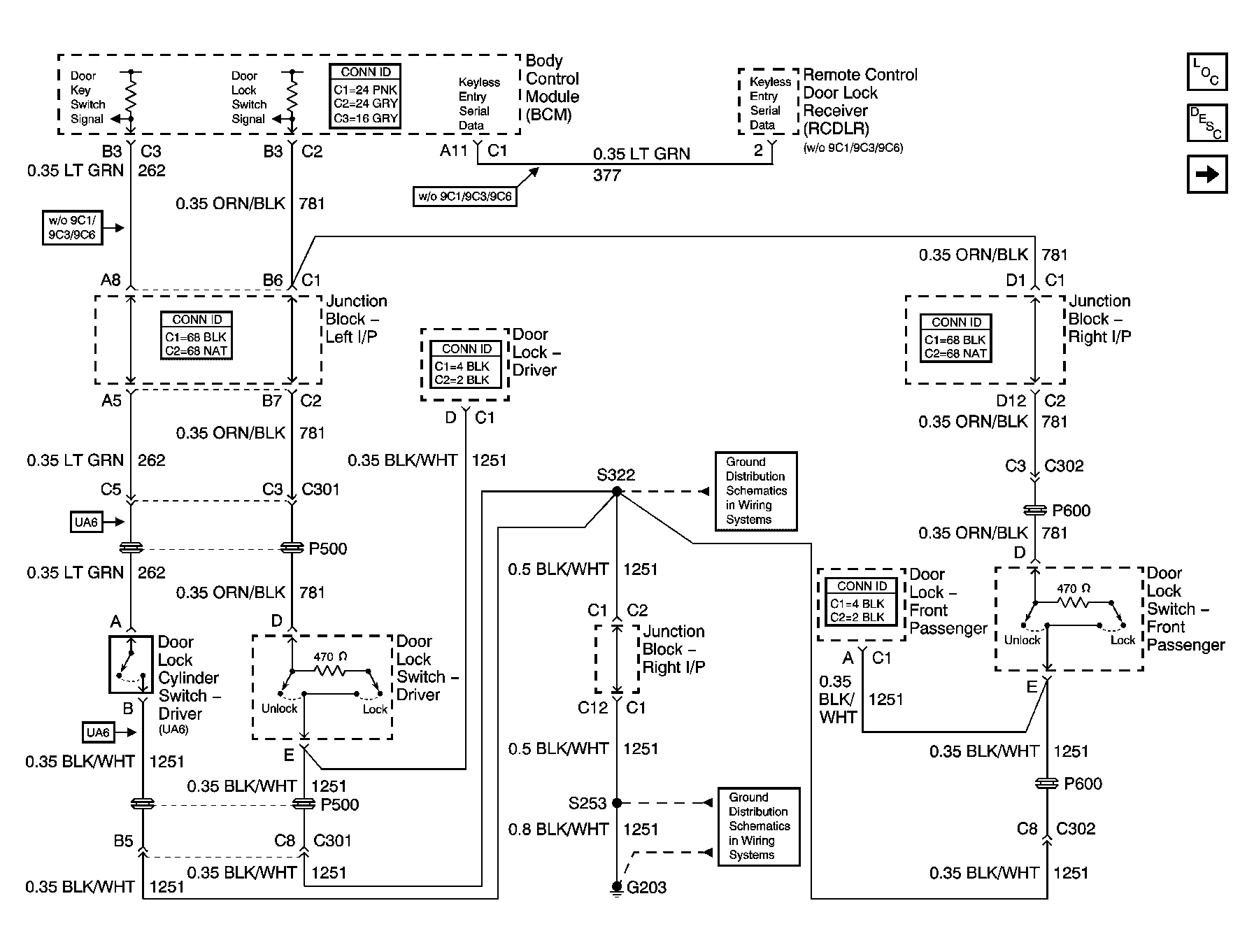

Fig 1: Lock Switches Schematic

Courtesy of GENERAL MOTORS CORP.

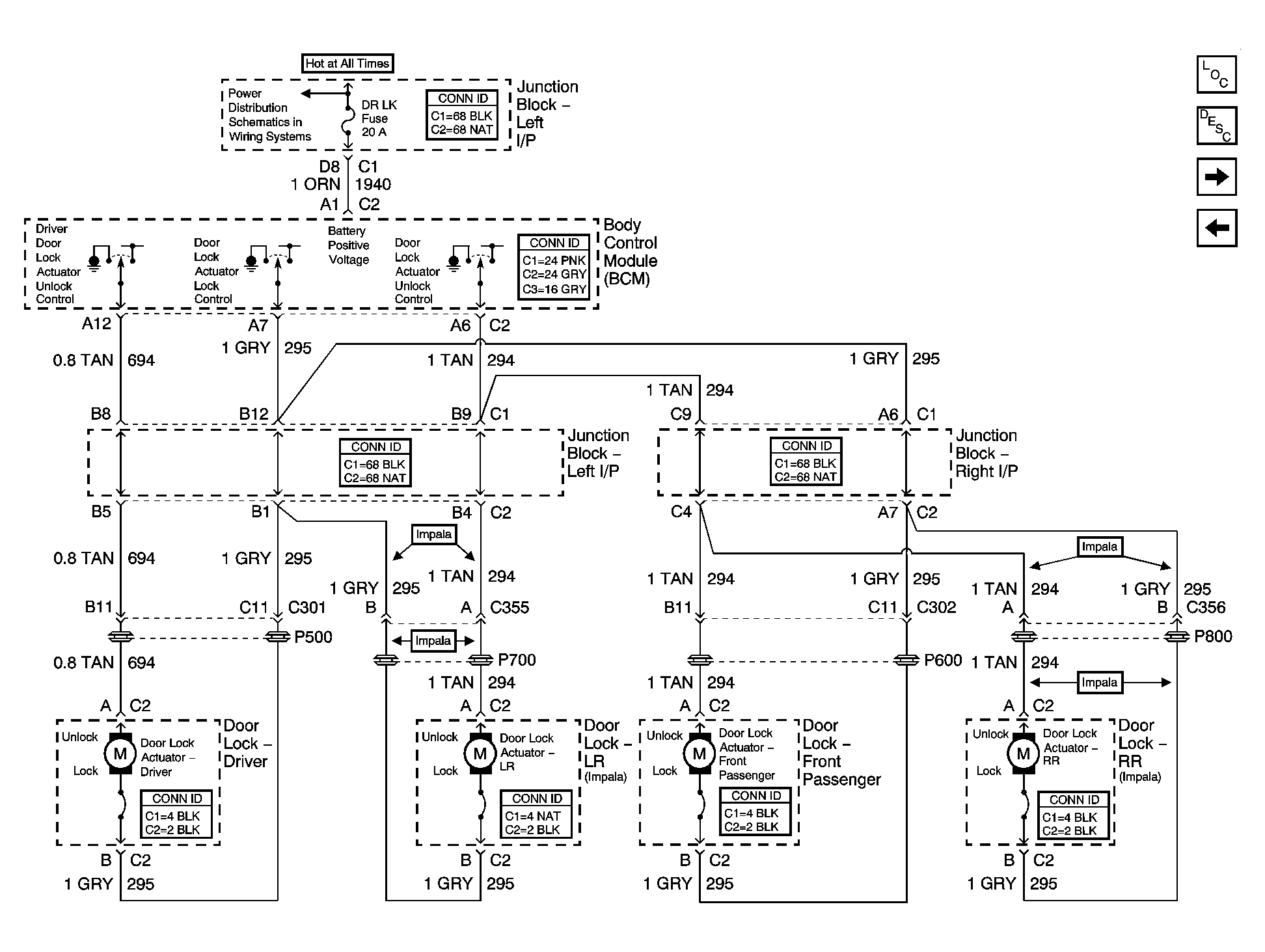

Fig 2: Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

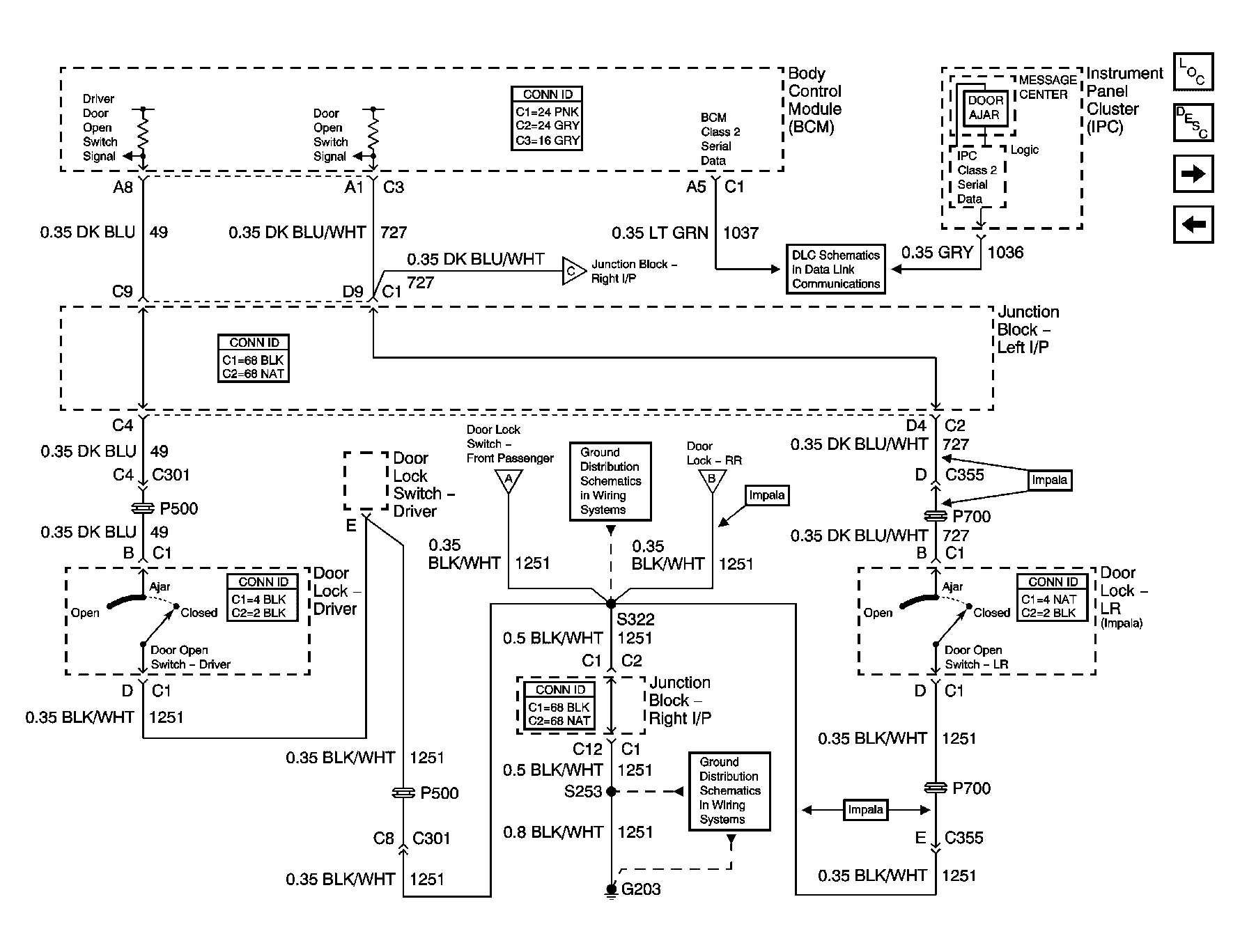

Fig 3: Door Open Switches Schematic (Left)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Open Switches Schematic (Right)

Courtesy of GENERAL MOTORS CORP.
