Outside Mirror Schematics

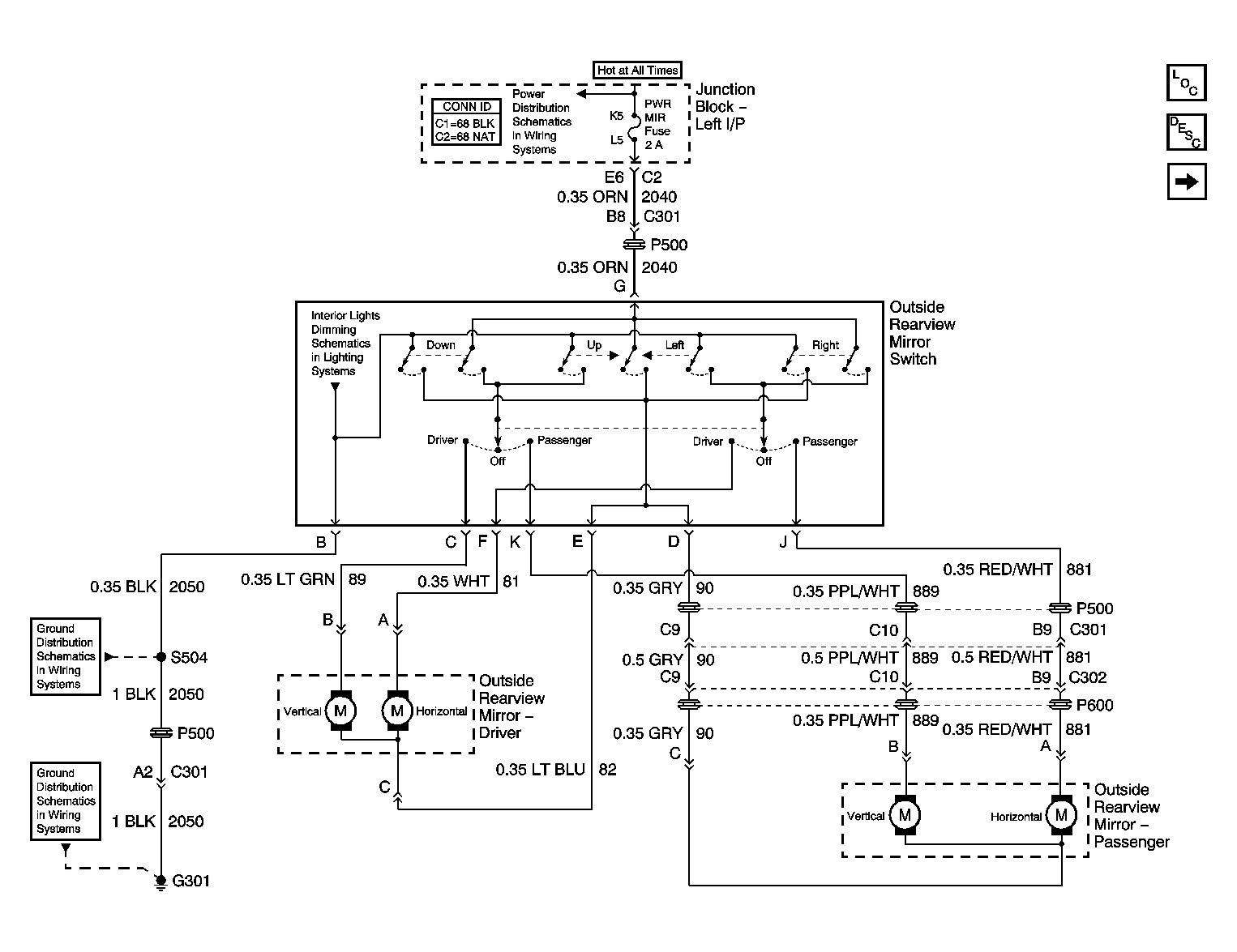

Fig 1: Power Mirrors Schematic
GM798574Courtesy of GENERAL MOTORS CORP.

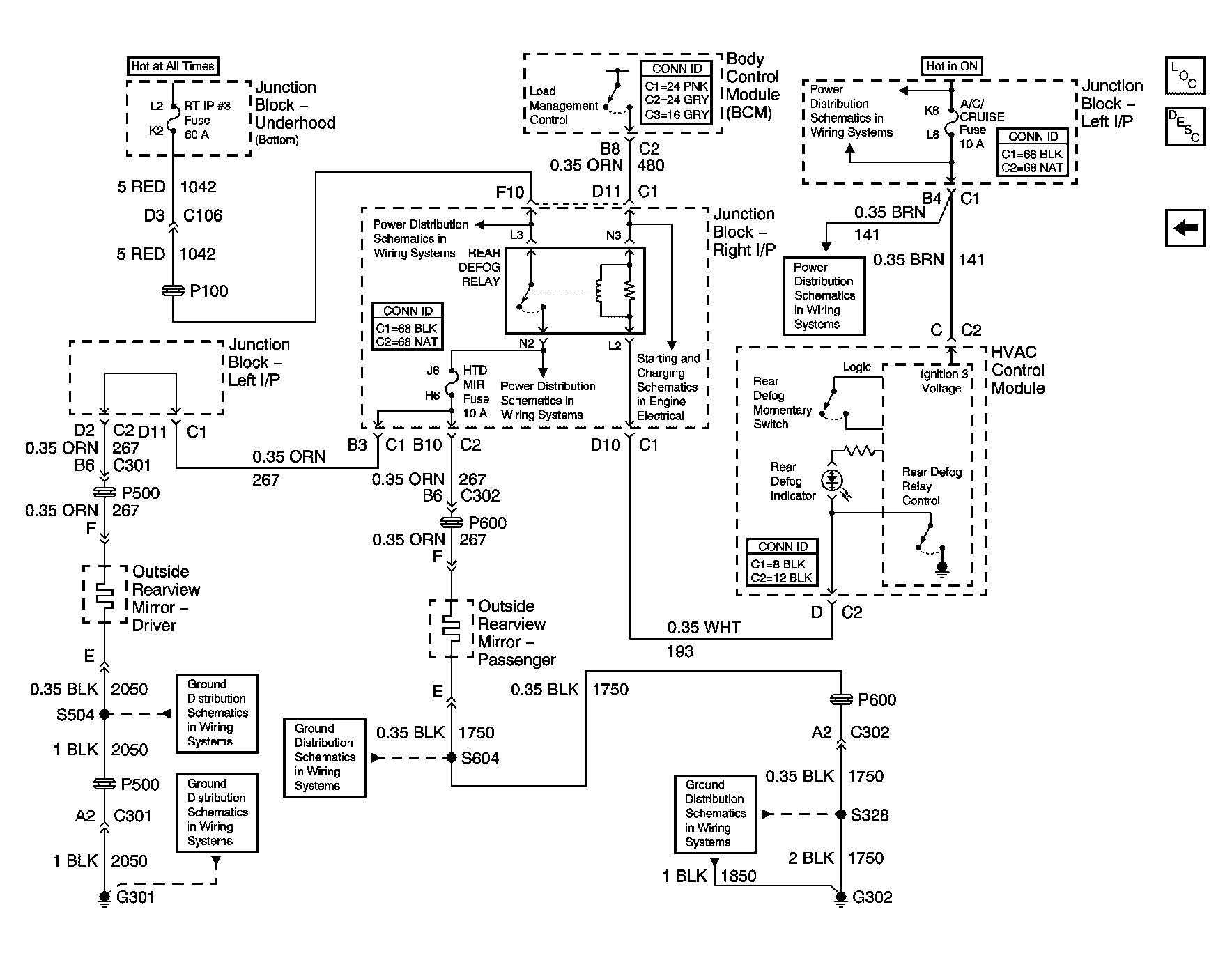

Fig 2: Heated Mirrors Schematic (DK5)
GM798575Courtesy of GENERAL MOTORS CORP.
