Power Window Schematics

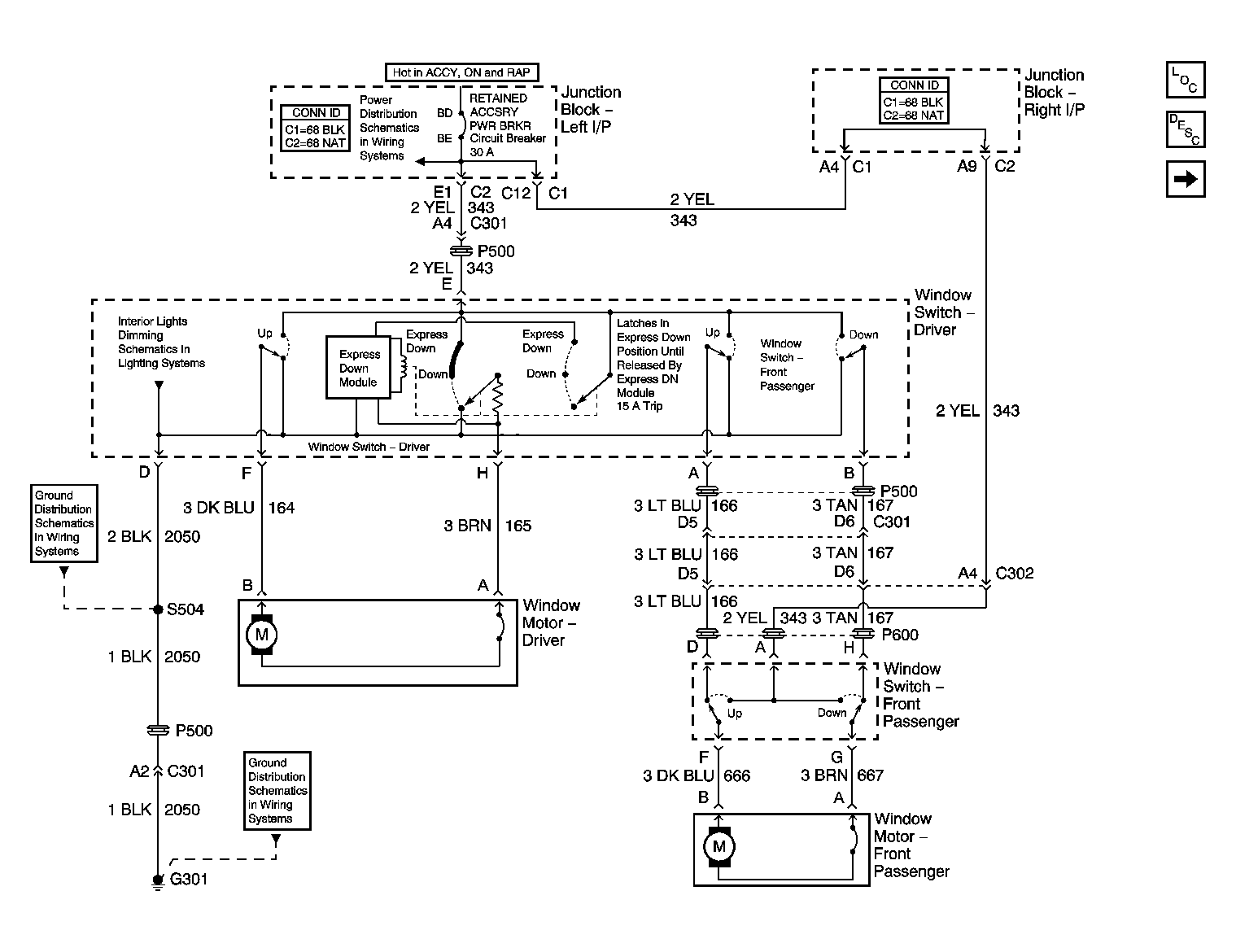

Fig 1: Power Window Schematic (Monte Carlo)
GM798564Courtesy of GENERAL MOTORS CORP.

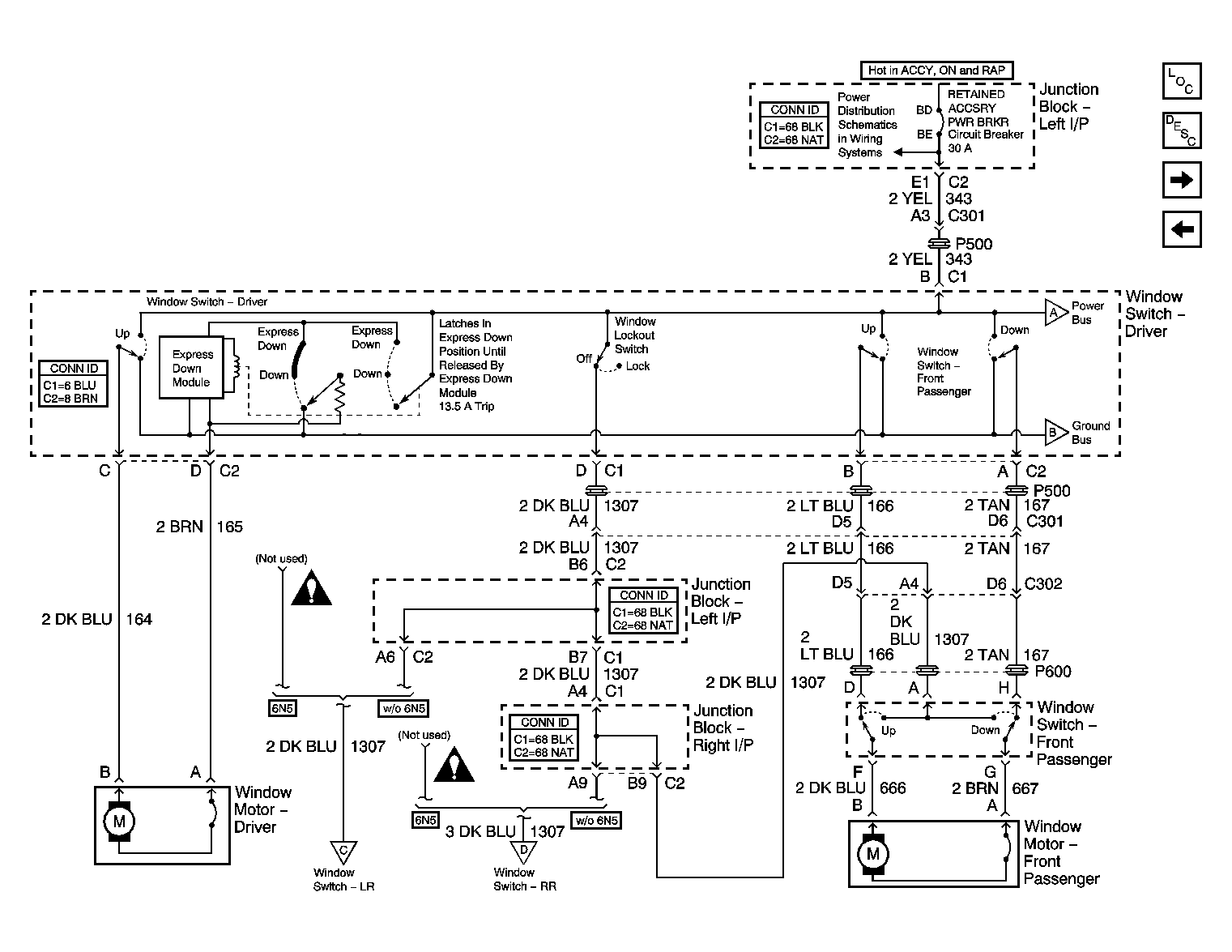

Fig 2: Power Window Schematic (Impala Front Doors)
GM798565Courtesy of GENERAL MOTORS CORP.

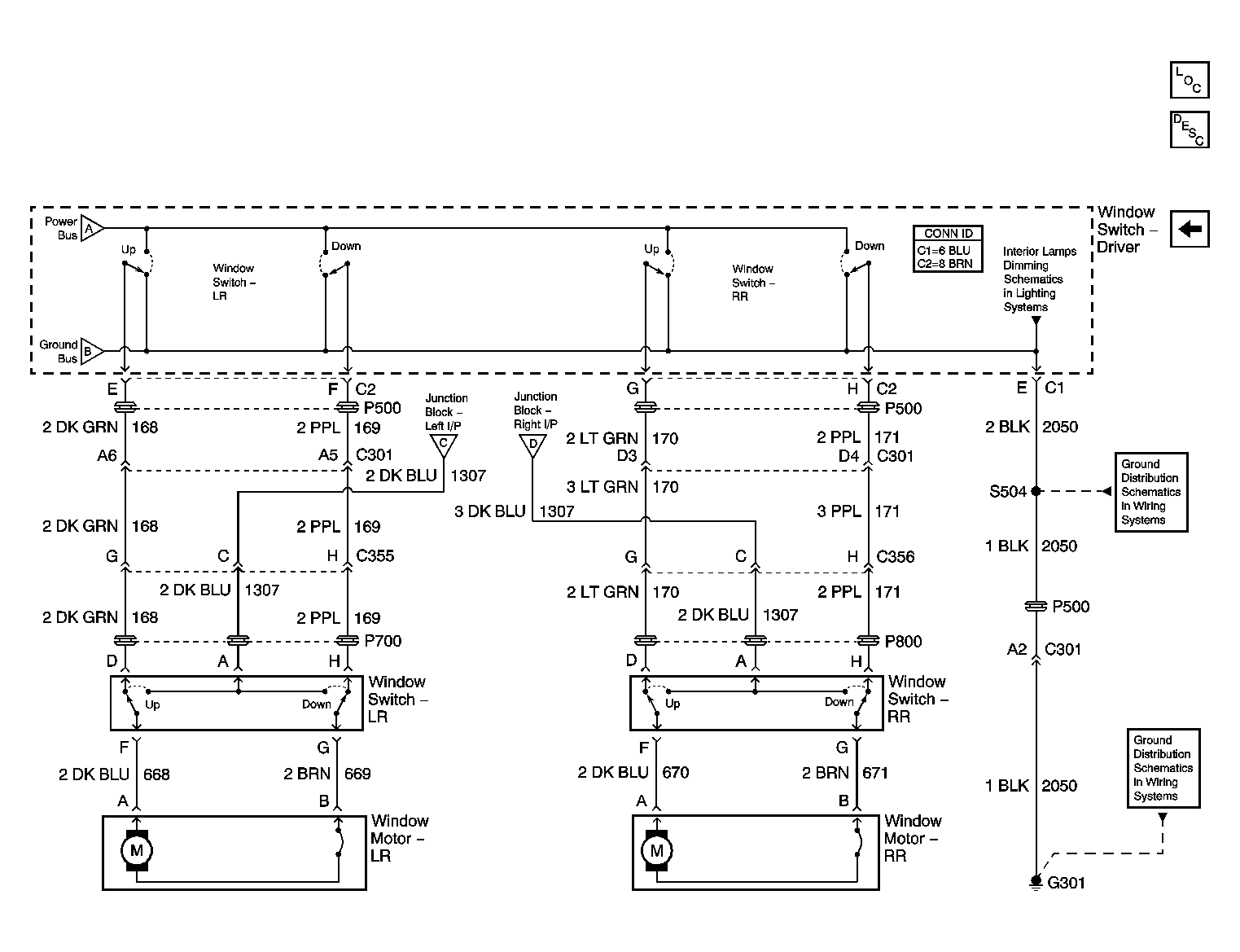

Fig 3: Power Window Schematic (Impala Rear Doors)
GM789085Courtesy of GENERAL MOTORS CORP.
