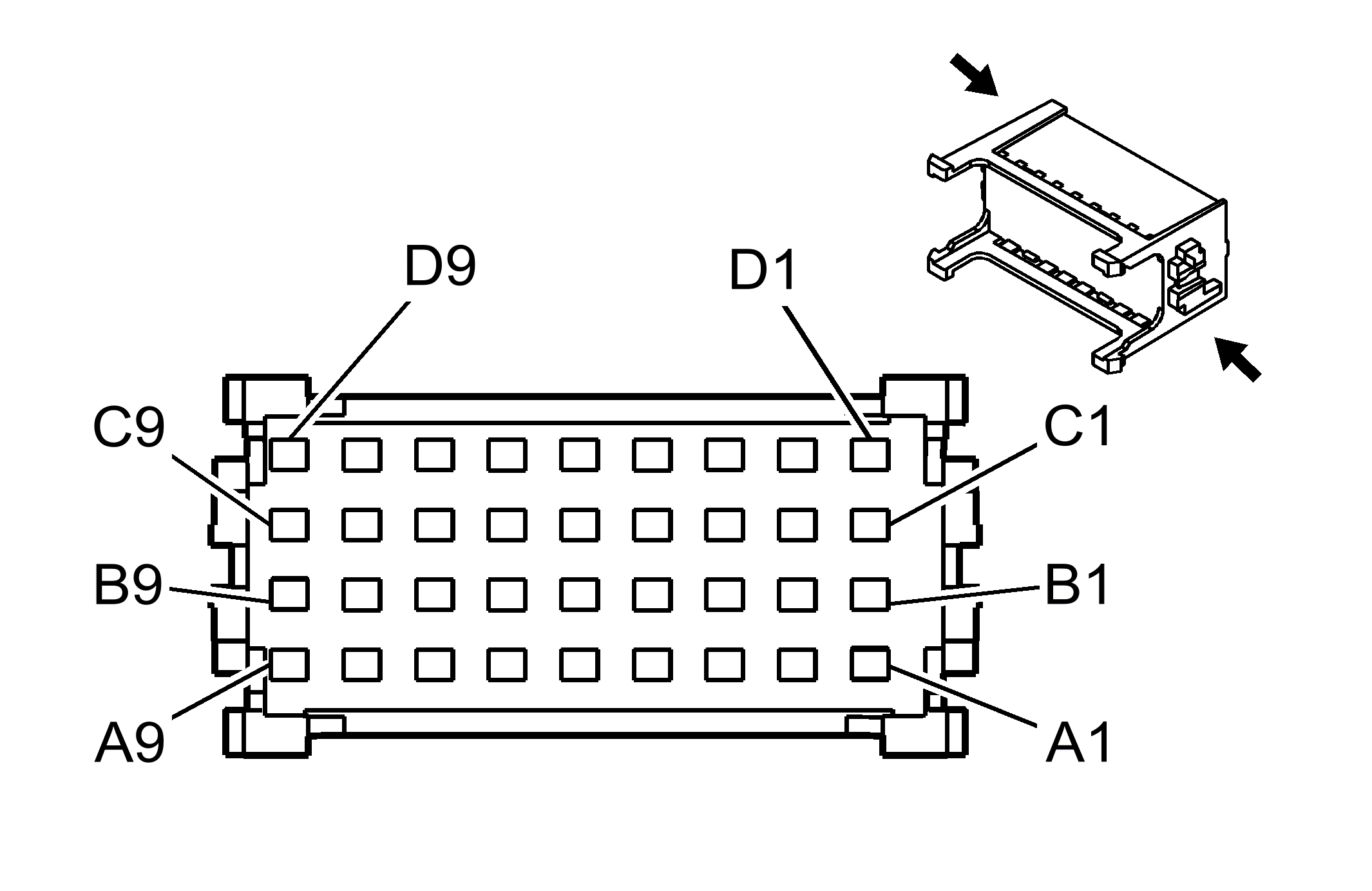

Fuse Block Connector End View - SEO
Fuse Block - SEO
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1-A9 | - | - | Not Used |
| B1 | LT GRN | 2236 | SEO Relay Supplied Voltage |
| B2 | - | - | Not Used |
| B3 | LT BLU | 2233 | SEO Relay Control |
| B4 | - | - | Not Used |
| B5 | DK GRN | 2237 | SEO Relay Supplied Voltage |
| B6 | - | - | Not Used |
| B7 | DK BLU | 2235 | SEO Relay Control |
| B8-B9 | - | - | Not Used |
| C1 | BLK | 1050 | Ground |
| C2 | - | - | Not Used |
| C3 | ORN | 3840 | Battery Positive Voltage |
| C4 | - | - | Not Used |
| C5 | BLK | 1050 | Ground |
| C6 | - | - | Not Used |
| C7 | ORN | 3940 | Battery Positive Voltage |
| C8-C9 | - | - | Not Used |
| D1-D9 | - | - | Not Used |
