Engine Electrical Component Views

Fig 1: Right Front Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Positive Battery Cable
2	Negative Battery Cable
3	Junction Block-Underhood (Top and Bottom)
4	G100
5	Battery

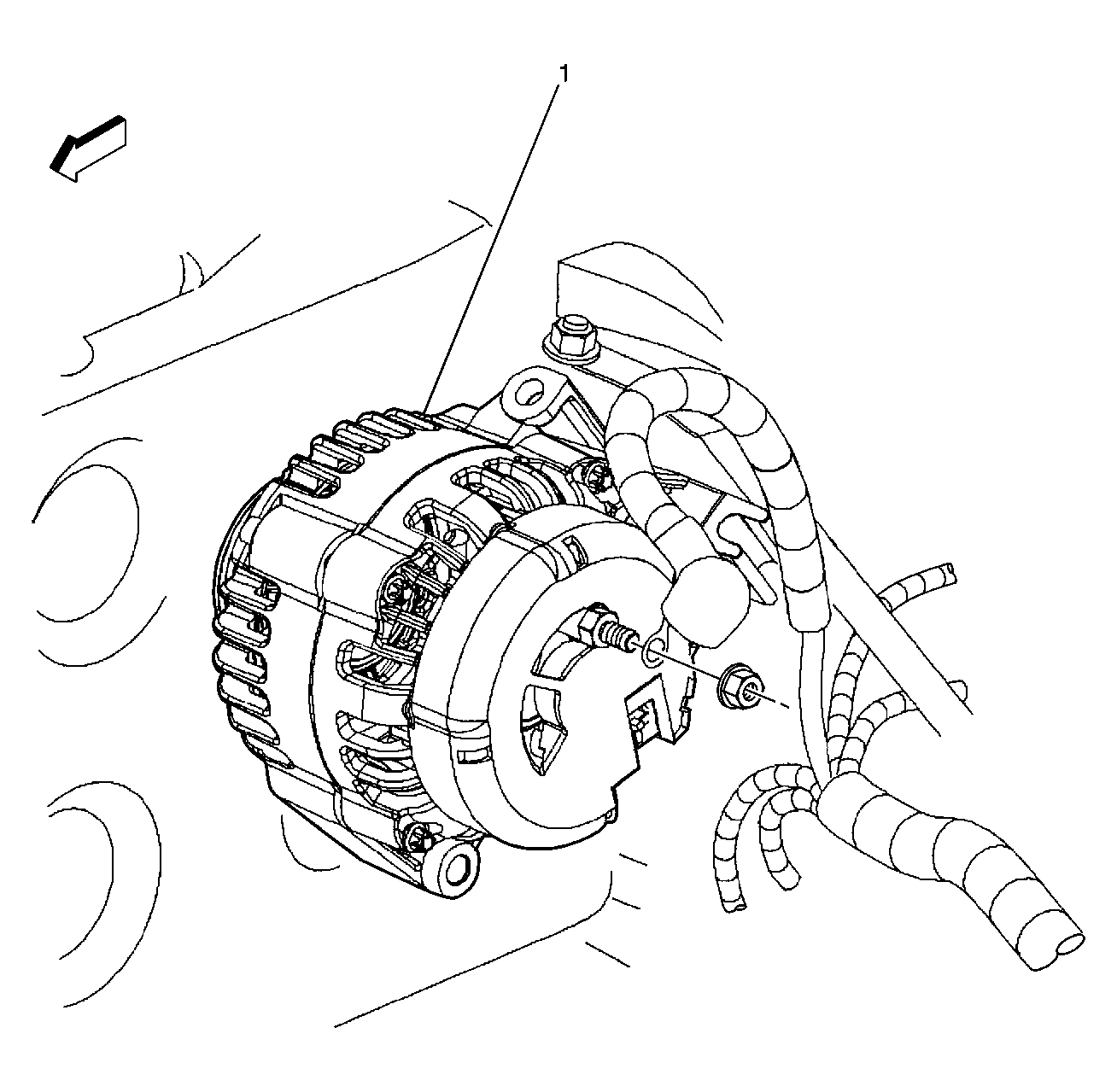

Fig 2: Upper Right Rear Of Engine Component View (LA1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator

Fig 3: Upper Right Front Of Engine Component View (L36)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator

Fig 4: Lower Left Front Of Engine Component View (LA1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter

Fig 5: Lower Left Front Of Engine Component View (L36)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
