Diagnostic Procedures

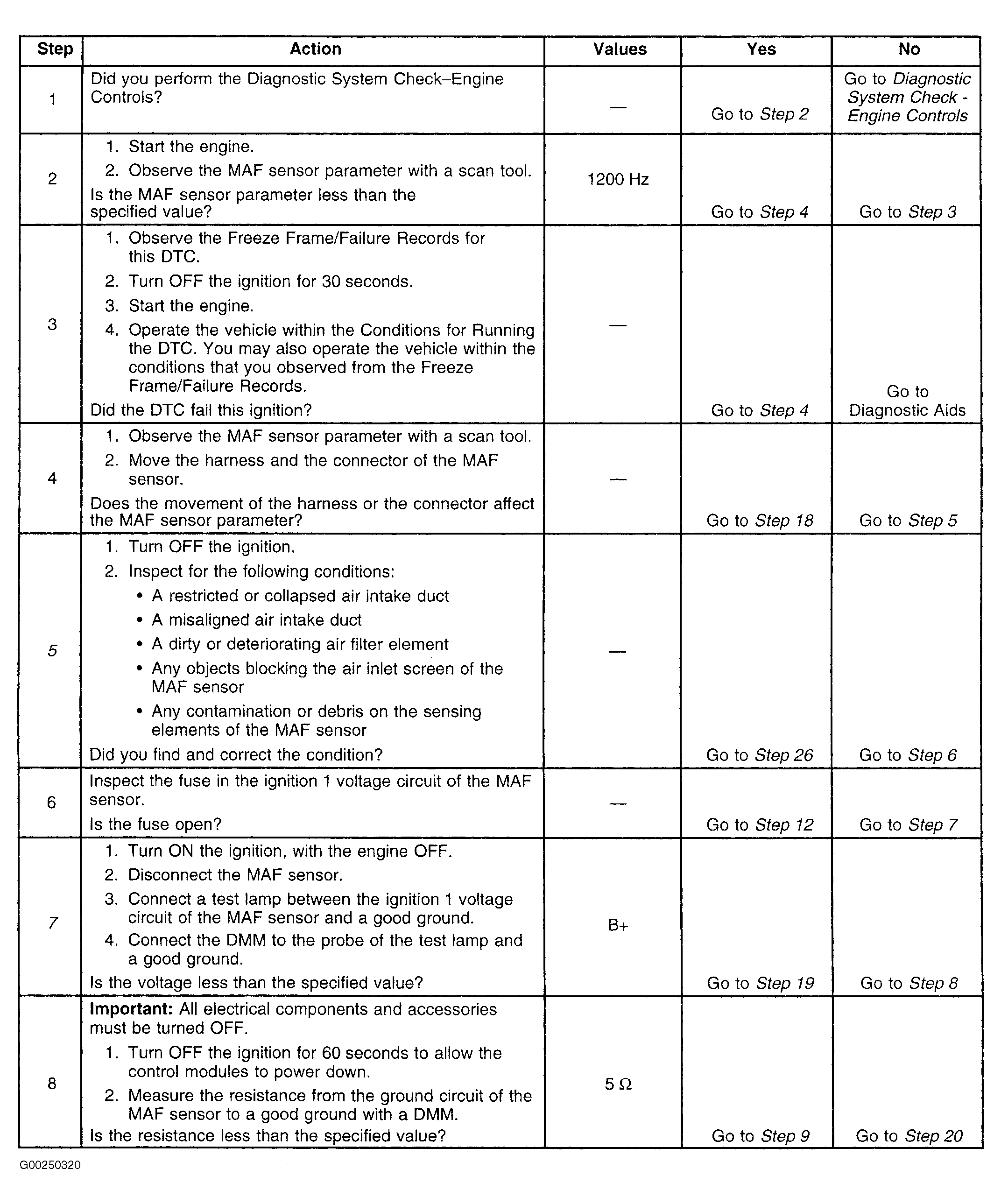

Fig 1: DTC P0102: MAF Sensor Circuit - Low Frequency (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

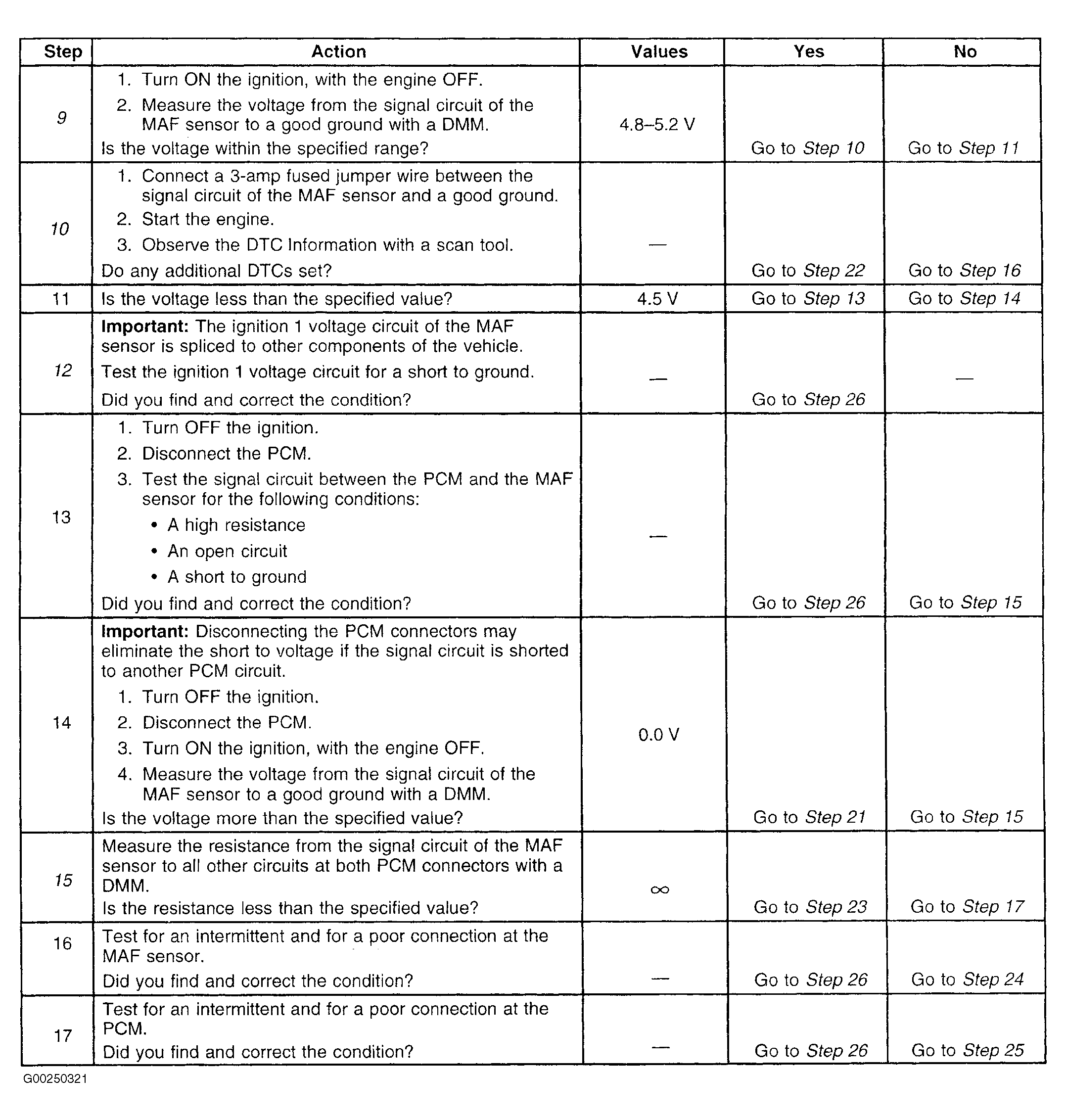

Fig 2: DTC P0102: MAF Sensor Circuit - Low Frequency (Steps 9-17)

Courtesy of GENERAL MOTORS CORP.

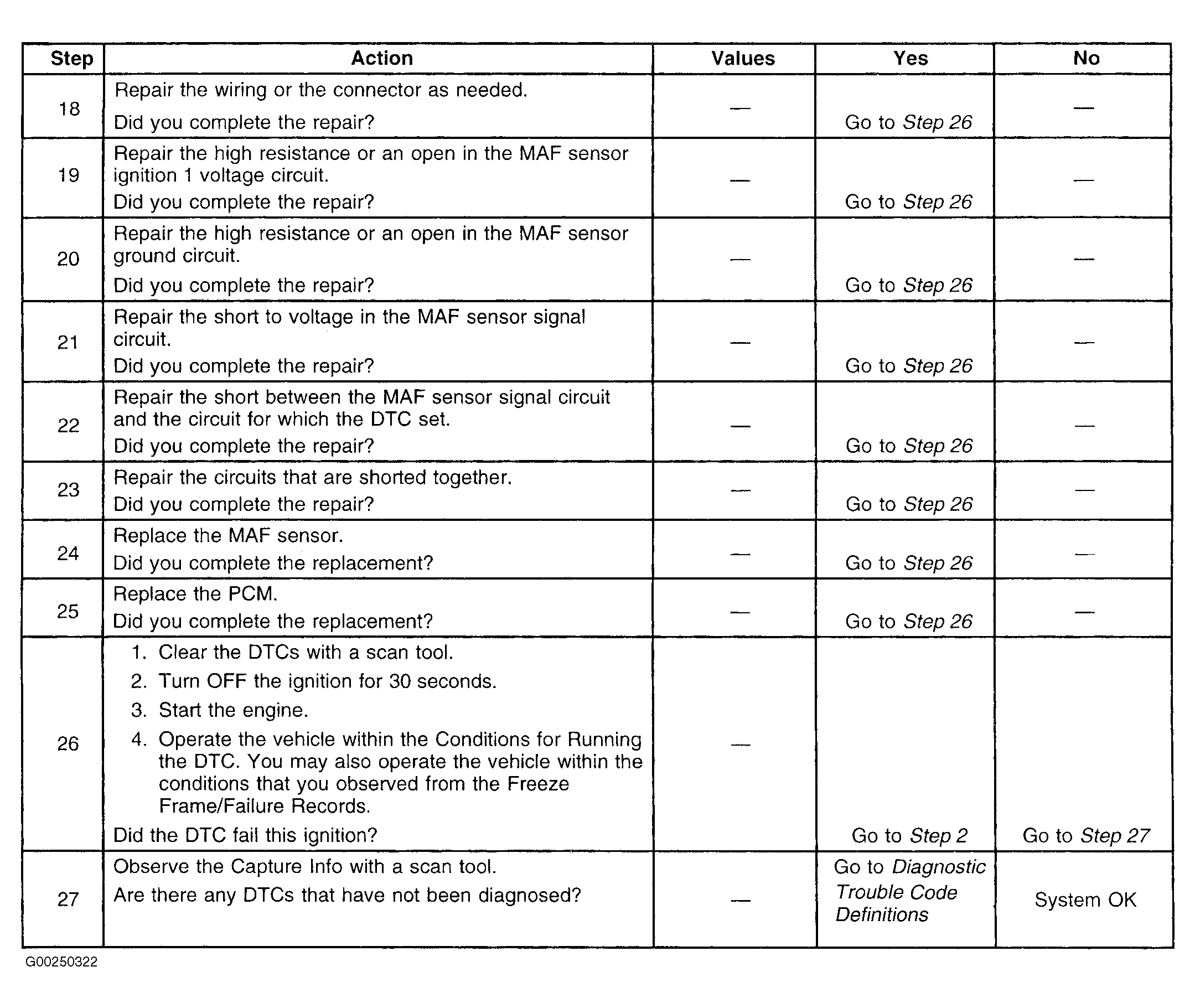

Fig 3: DTC P0102: MAF Sensor Circuit - Low Frequency (Steps 18-27)

Courtesy of GENERAL MOTORS CORP.
