Engine Control System Self-Diagnostics - 3.8L
›
Diagnostic Tests
›
DTC P0325: Knock Sensor Module Circuit
›
Diagnostic Procedures
Diagnostic Procedures

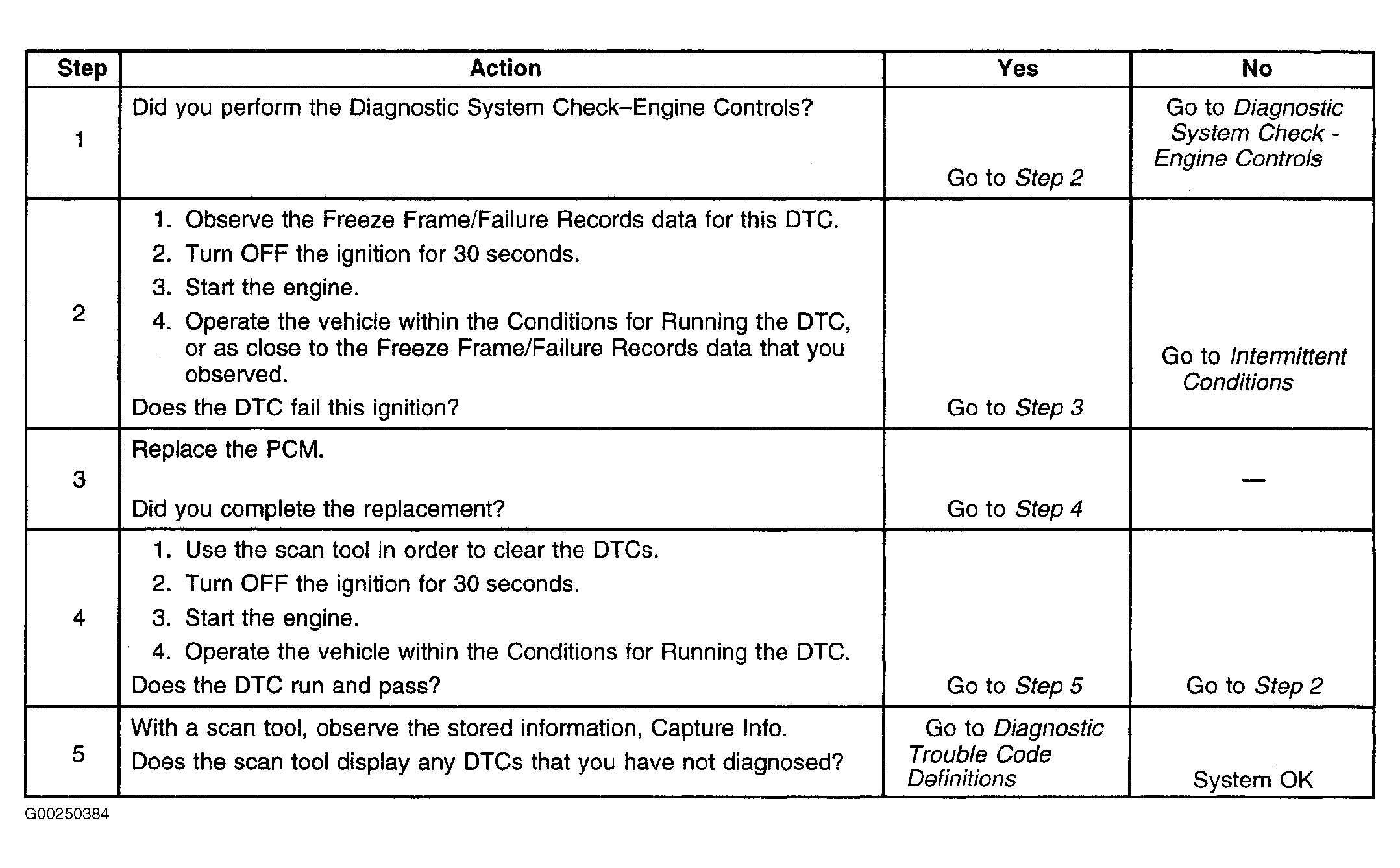

Fig 1: DTC P0325: Knock Sensor Module Circuit
Courtesy of GENERAL MOTORS CORP.
