Engine Control System Self-Diagnostics - 3.8L
›
Diagnostic Tests
›
DTC P0404: EGR Open Position Performance
›
Diagnostic Procedures
Diagnostic Procedures

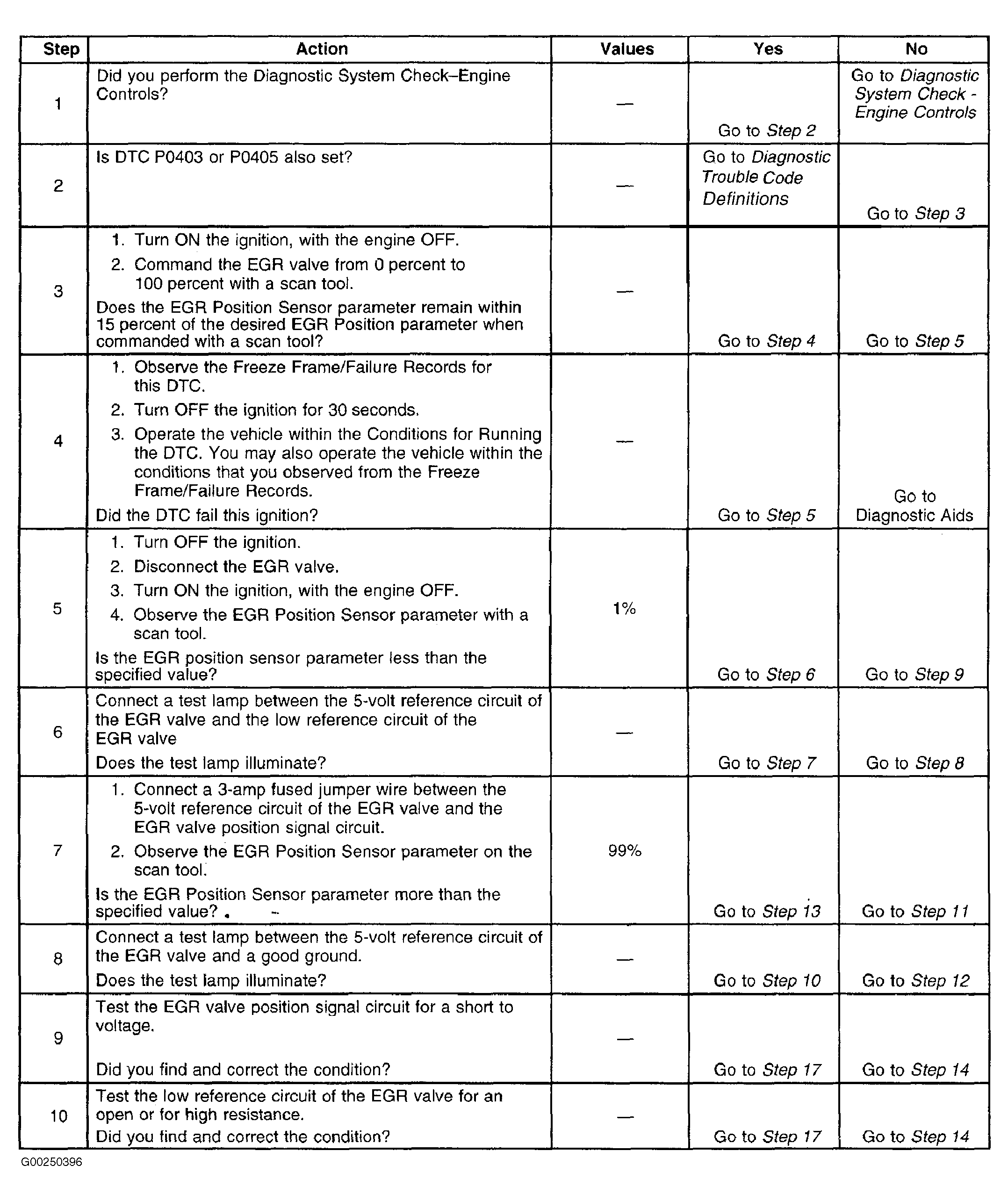

Fig 1: DTC P0404: Exhaust Gas Recirculation Open Position Performance (Steps 1-10)
Courtesy of GENERAL MOTORS CORP.

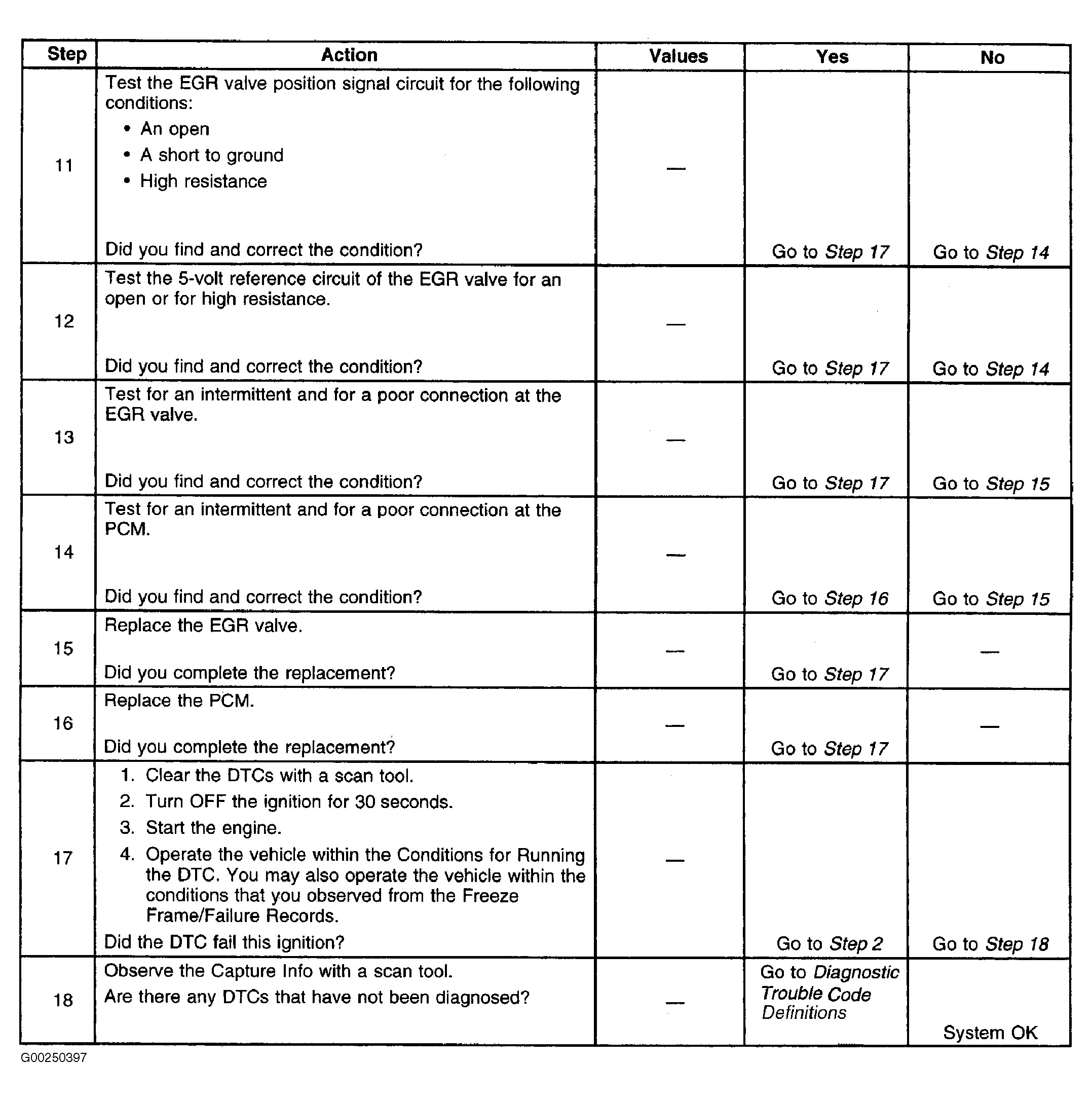

Fig 2: DTC P0404: Exhaust Gas Recirculation Open Position Performance (Steps 11-18)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
