Diagnostic Procedures

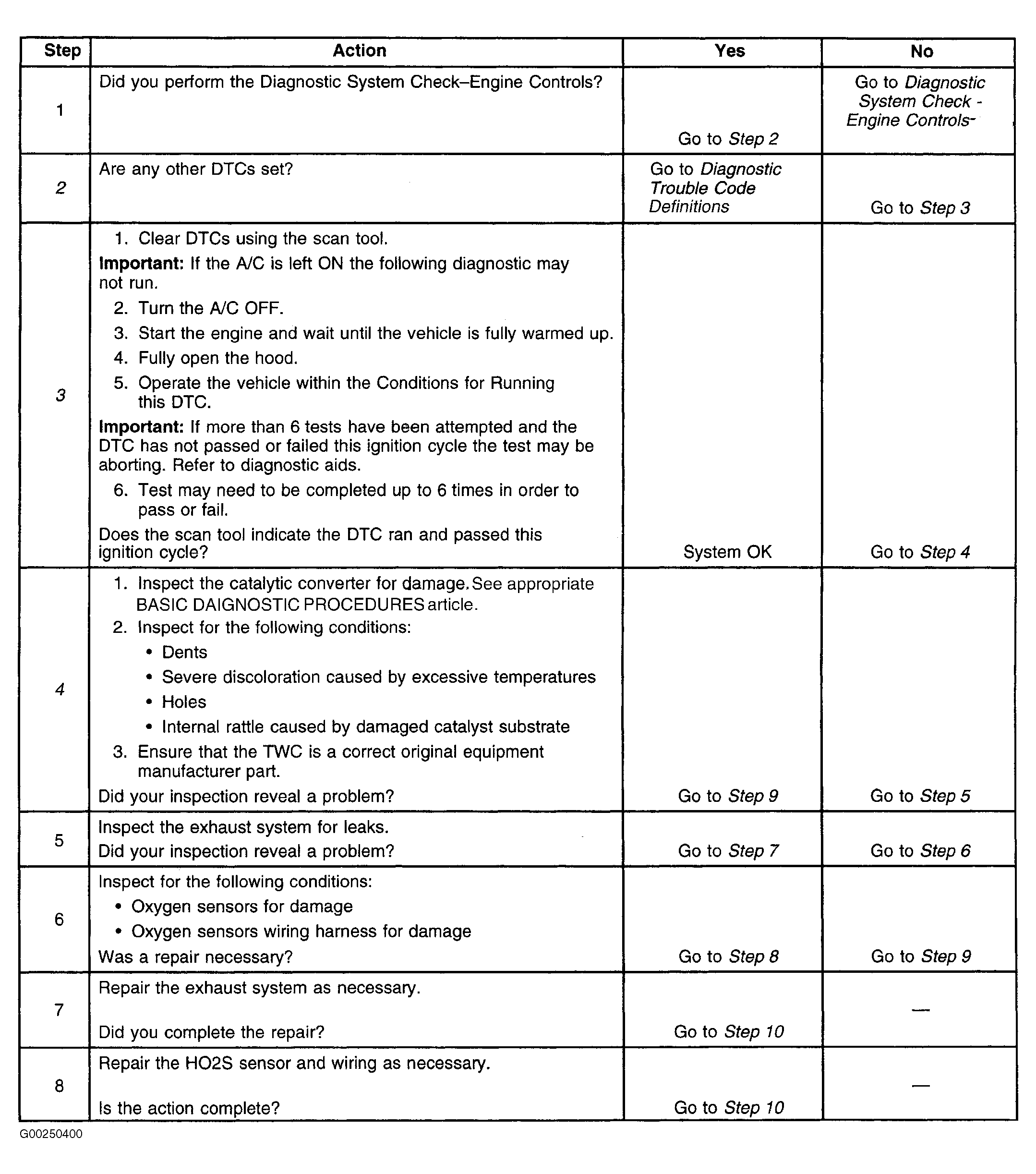

Fig 1: DTC P0420: Catalyst System Low Efficiency (Steps 1-8)
G00250400Courtesy of GENERAL MOTORS CORP.

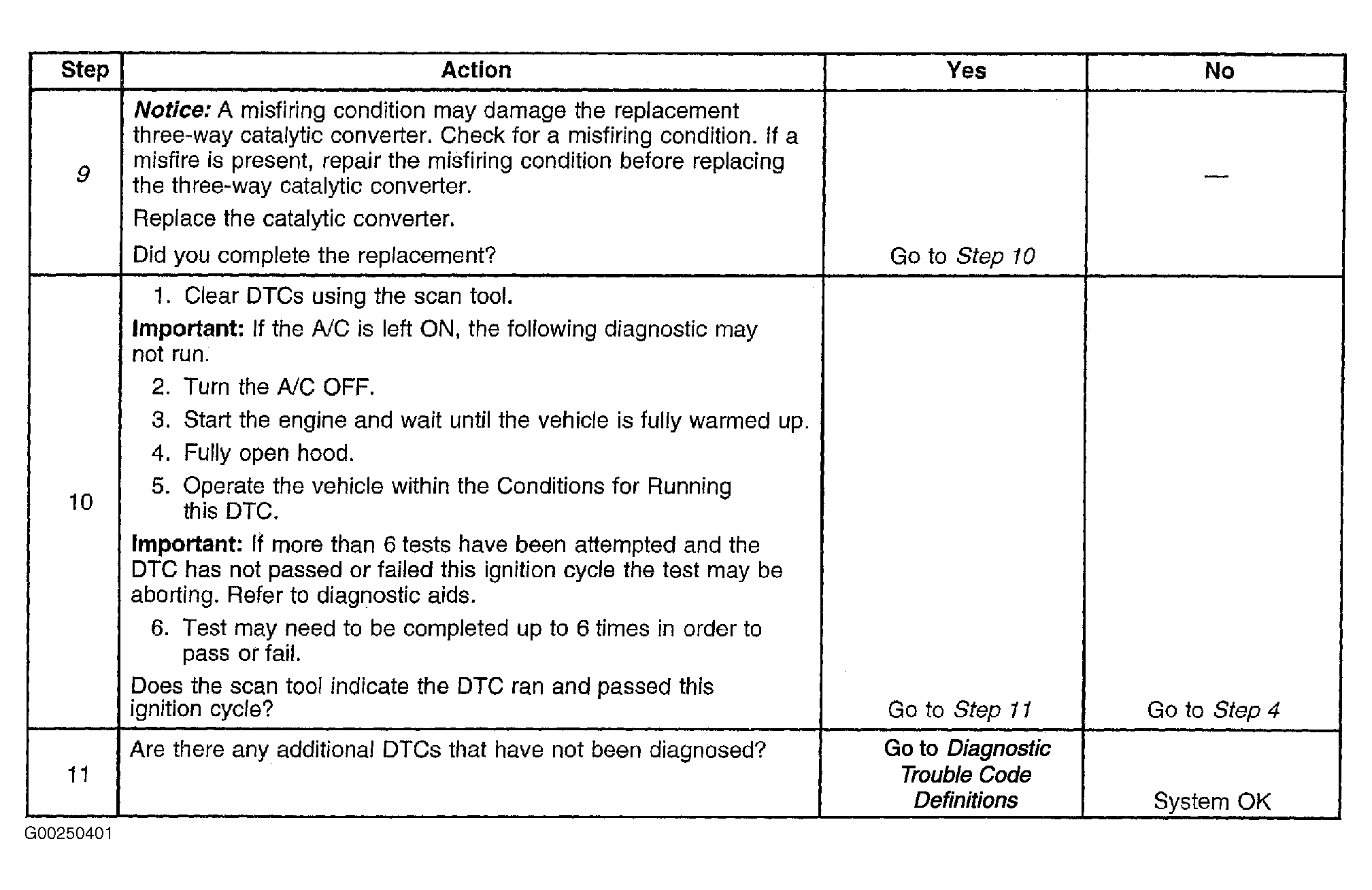

Fig 2: DTC P0420: Catalyst System Low Efficiency (Steps 9-11)
G00250401Courtesy of GENERAL MOTORS CORP.
