Diagnostic Procedures

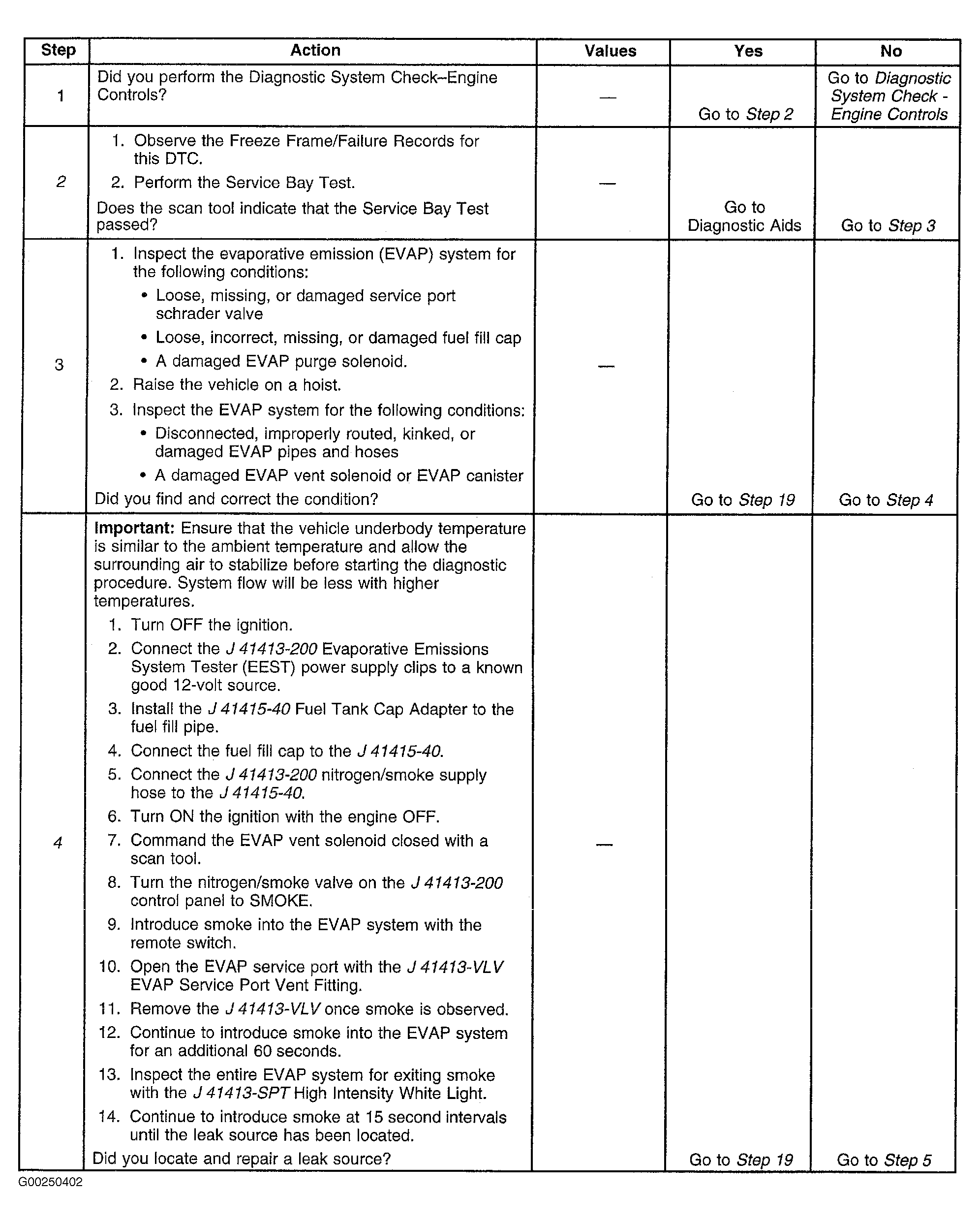

Fig 1: DTC P0440: Evaporative Emissions System (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

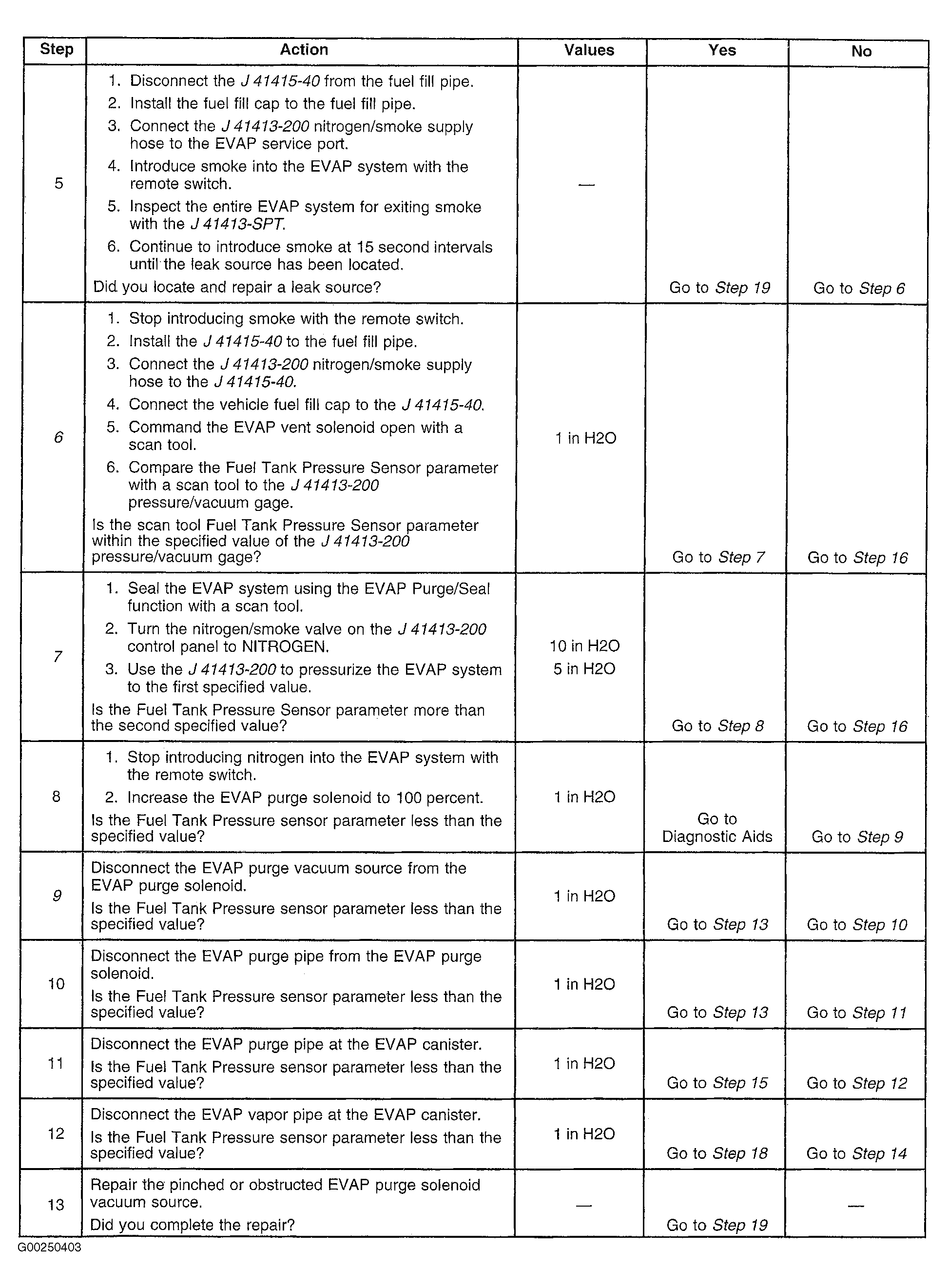

Fig 2: DTC P0440: Evaporative Emissions System (Steps 5-13)

Courtesy of GENERAL MOTORS CORP.

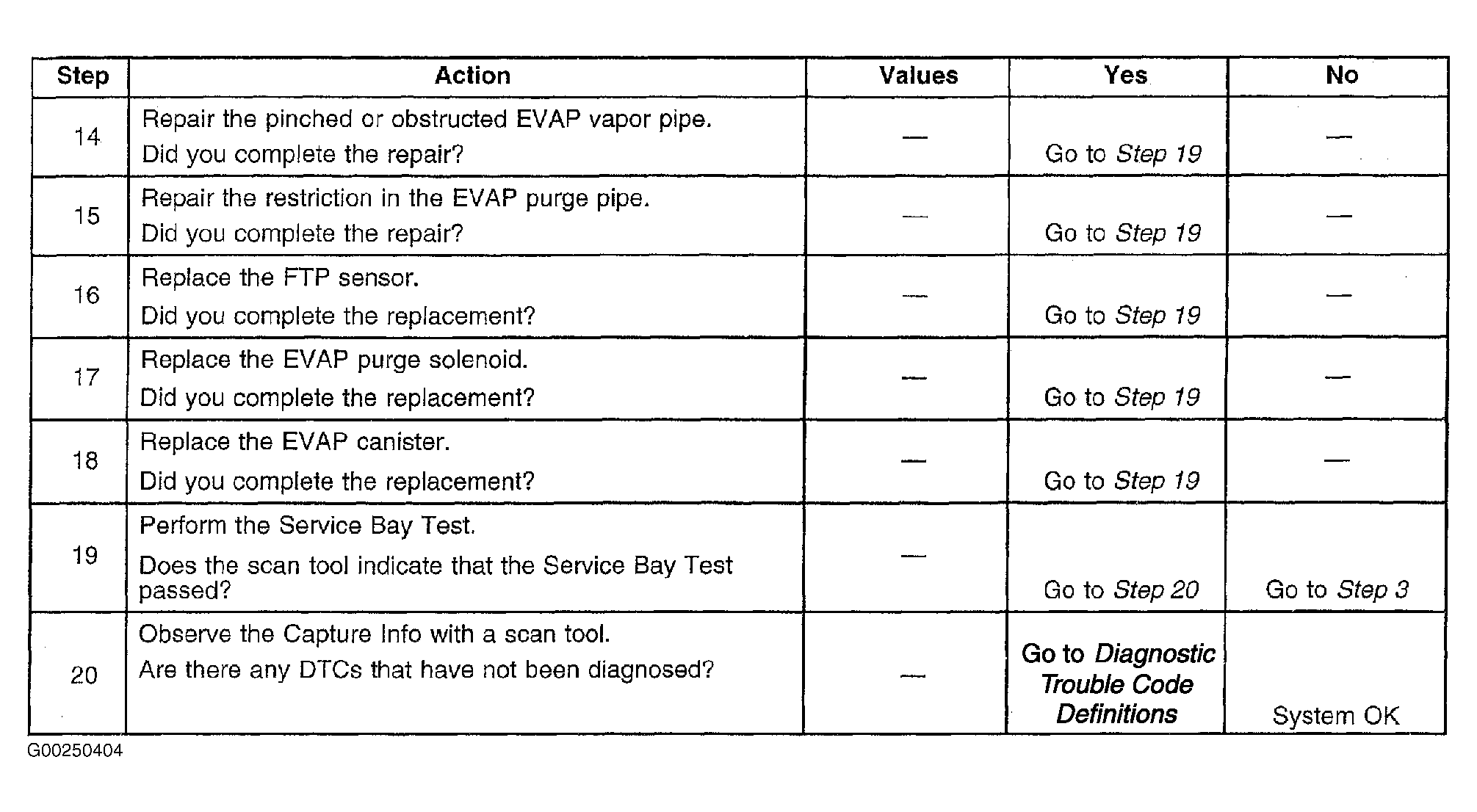

Fig 3: DTC P0440: Evaporative Emissions System (Steps 14-20)

Courtesy of GENERAL MOTORS CORP.
