Engine Control System Self-Diagnostics - 3.8L
›
Diagnostic Tests
›
DTC P0442: EVAP Control System Small Leak Detected
›
Diagnostic Procedures
Diagnostic Procedures

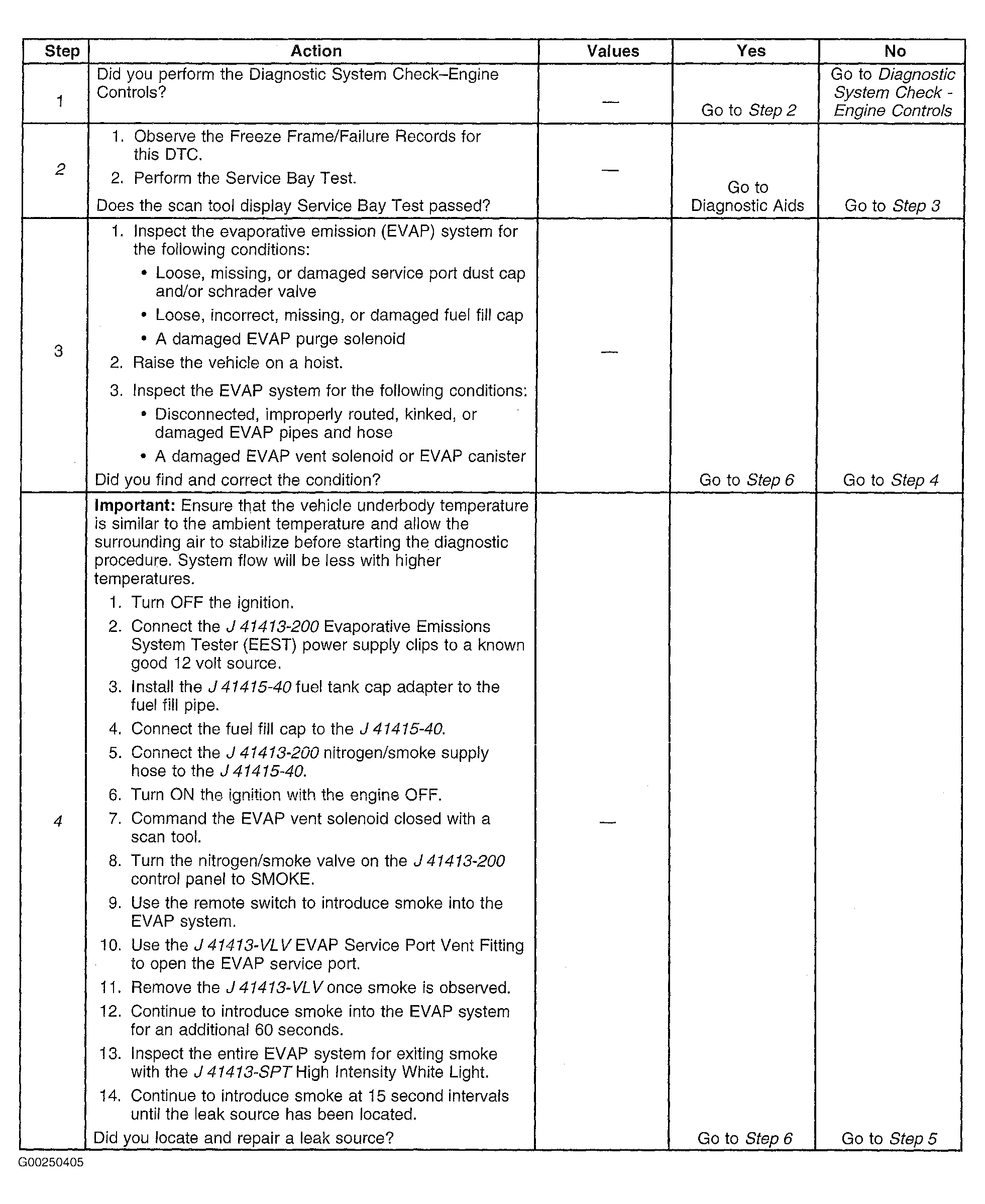

Fig 1: DTC P0442: Evaporative Emissions System Small Leak Detected (Steps 1-4)
Courtesy of GENERAL MOTORS CORP.

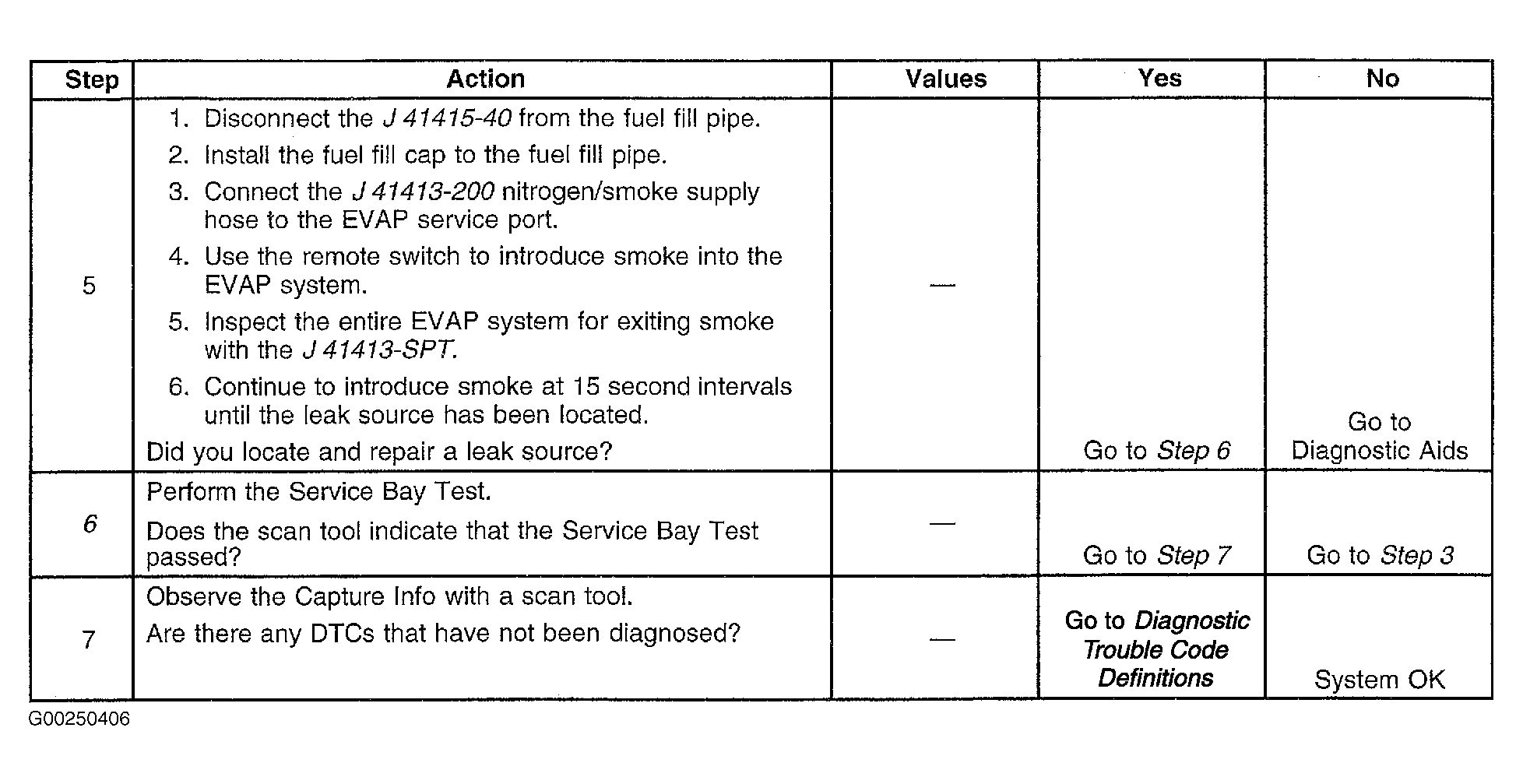

Fig 2: DTC P0442: Evaporative Emissions System Small Leak Detected (Steps 5-7)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
