Diagnostic Procedures

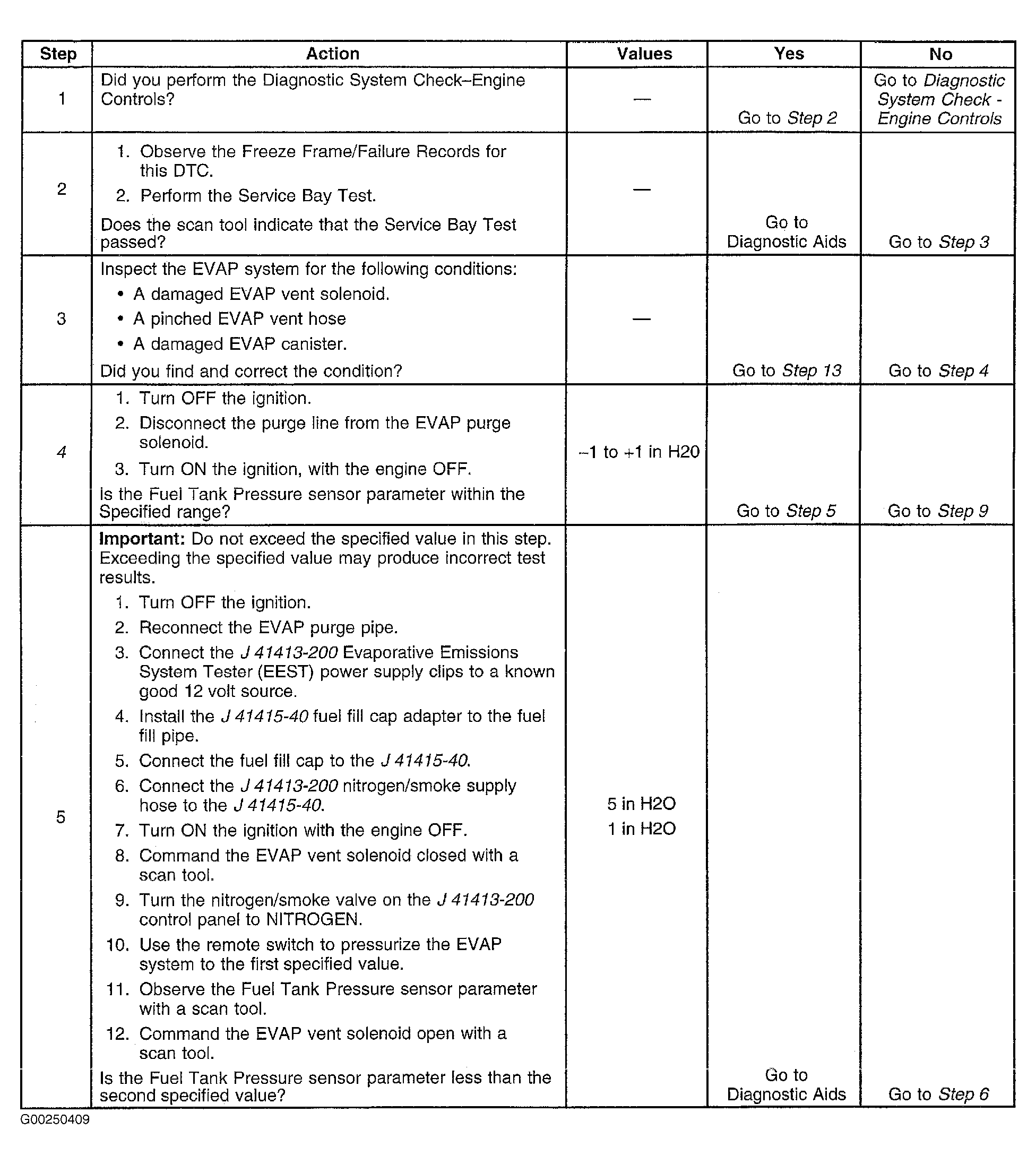

Fig 1: DTC P0446: Evaporative Emissions Vent System Performance (Steps 1-5)
G00250409Courtesy of GENERAL MOTORS CORP.

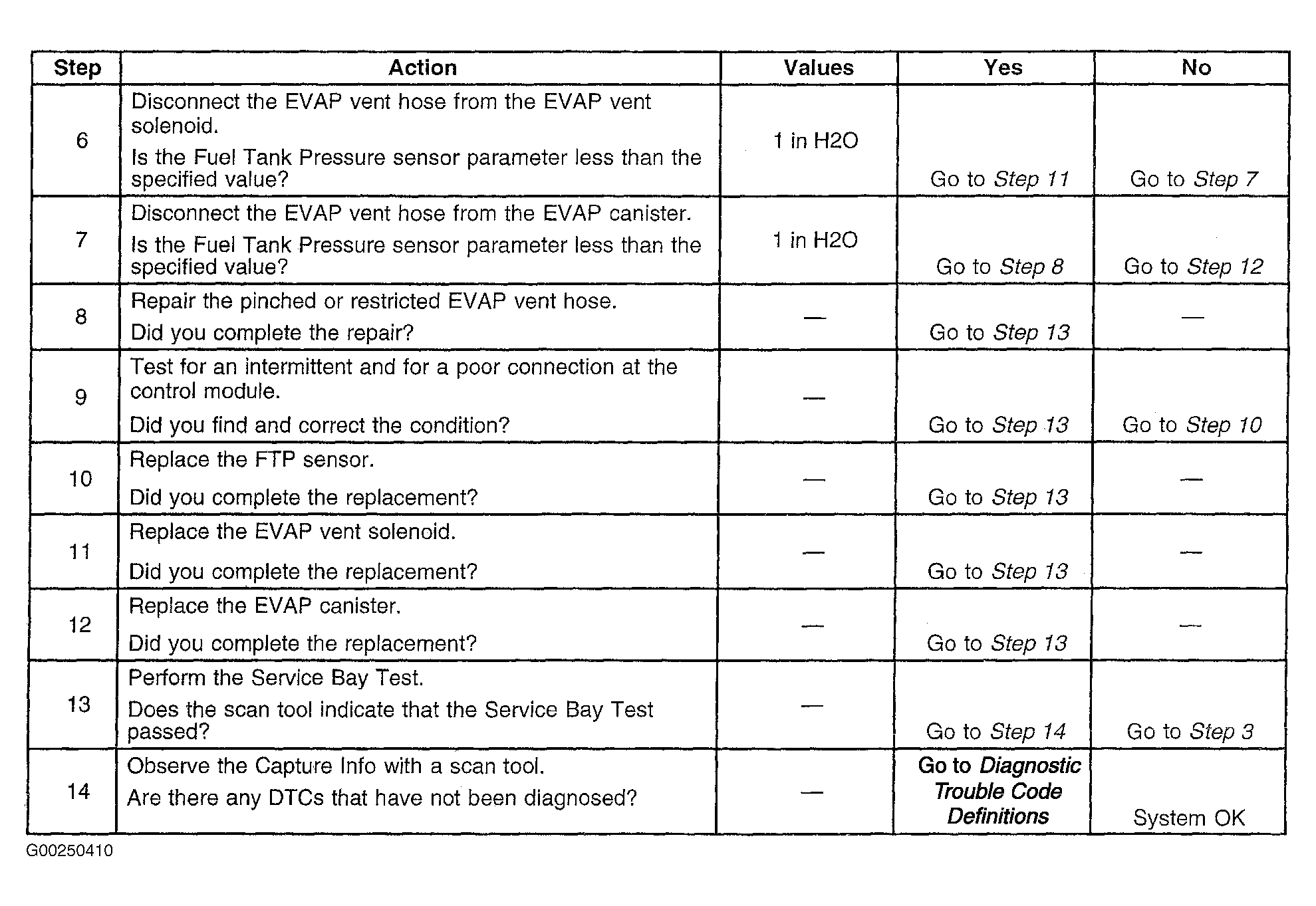

Fig 2: DTC P0446: Evaporative Emissions Vent System Performance (Steps 6-14)
G00250410Courtesy of GENERAL MOTORS CORP.
