Diagnostic Procedures

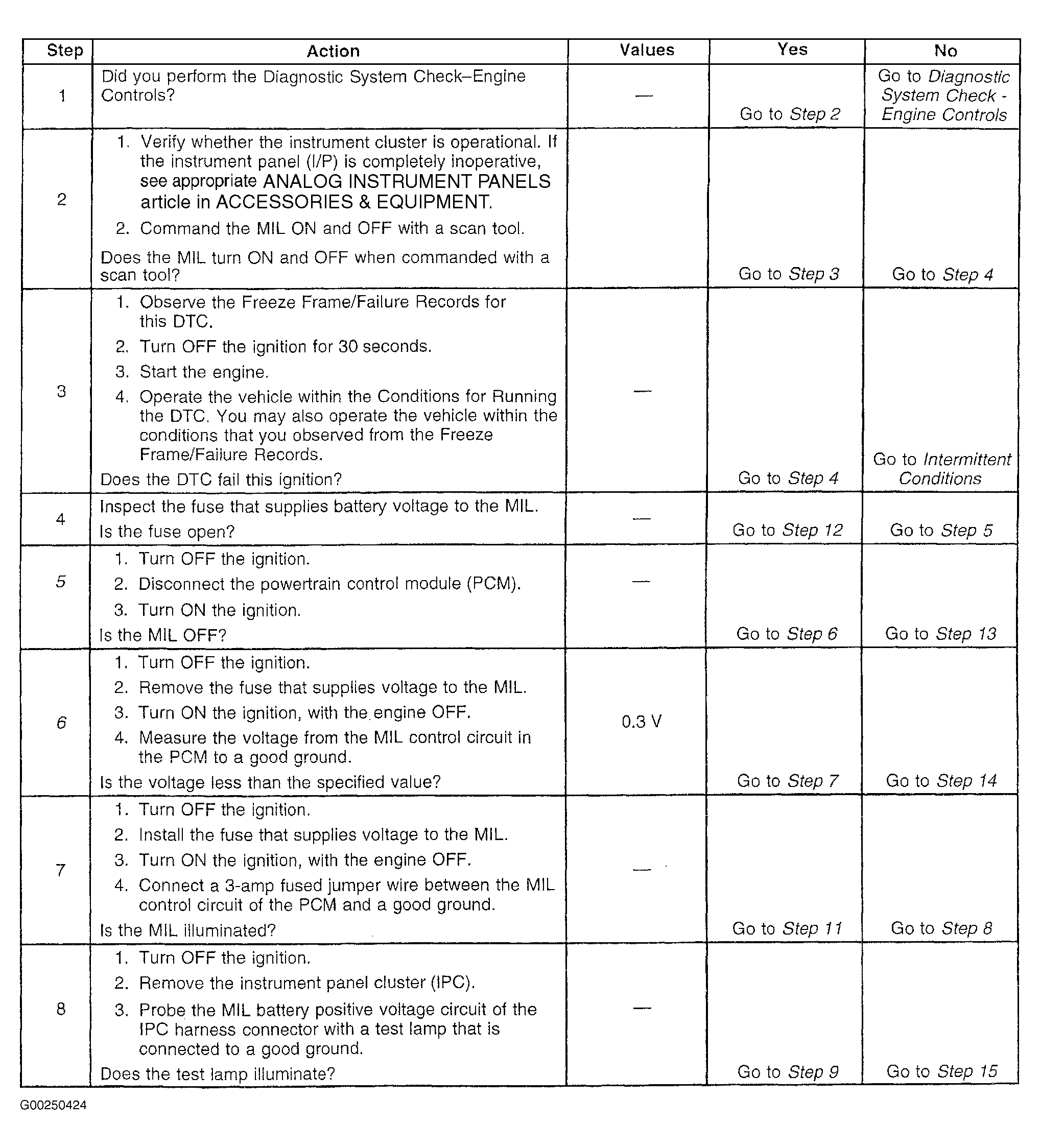

Fig 1: DTC P0650: Malfunction Indicator Light Control Circuit (Steps 1-8)
G00250424Courtesy of GENERAL MOTORS CORP.

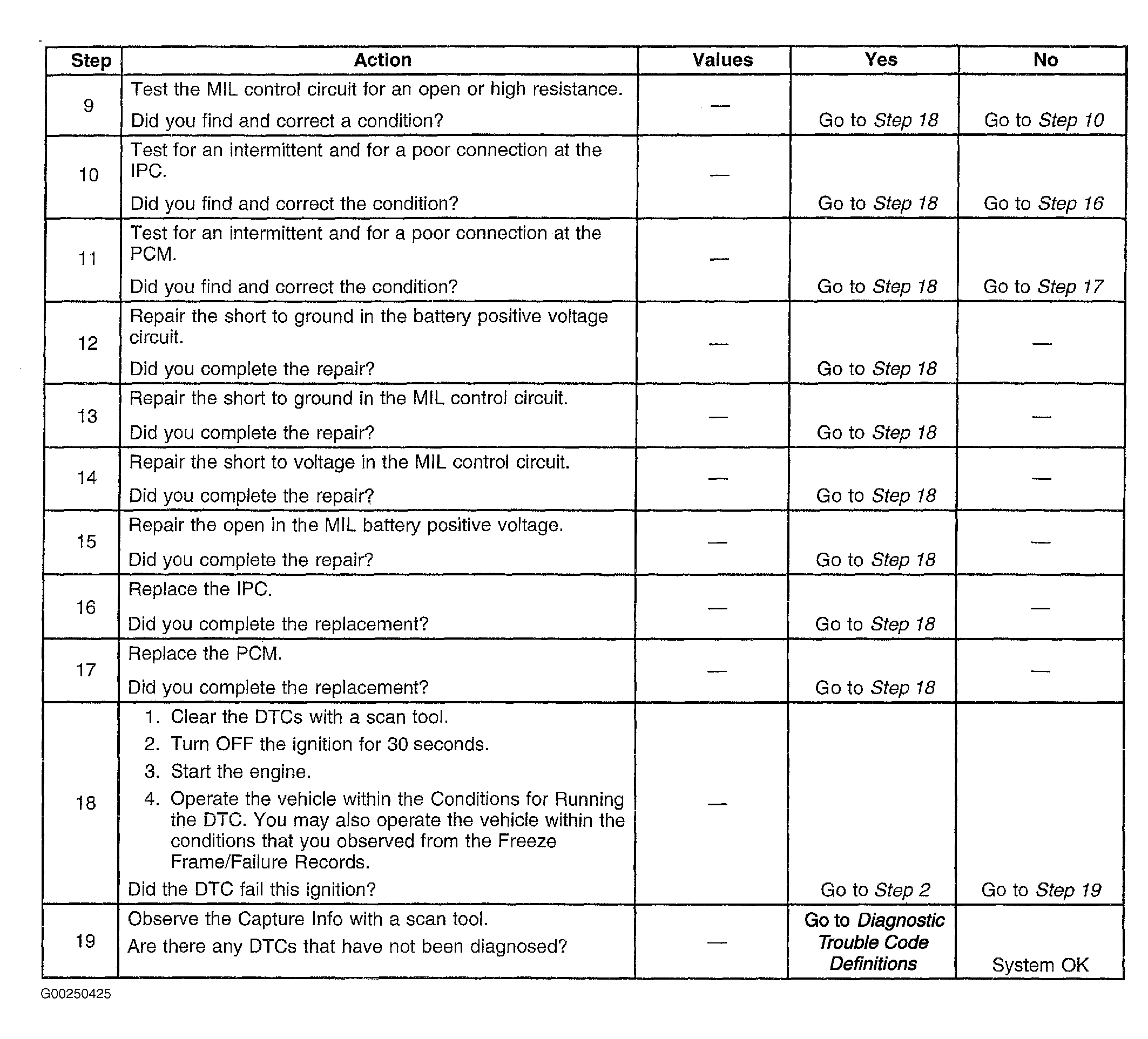

Fig 2: DTC P0650: Malfunction Indicator Light Control Circuit (Steps 9-19)
G00250425Courtesy of GENERAL MOTORS CORP.
