Engine Control System Self-Diagnostics - 3.8L
›
Diagnostic Tests
›
DTC P1441: EVAP System Flow During Non-Purge
›
Diagnostic Procedures
Diagnostic Procedures

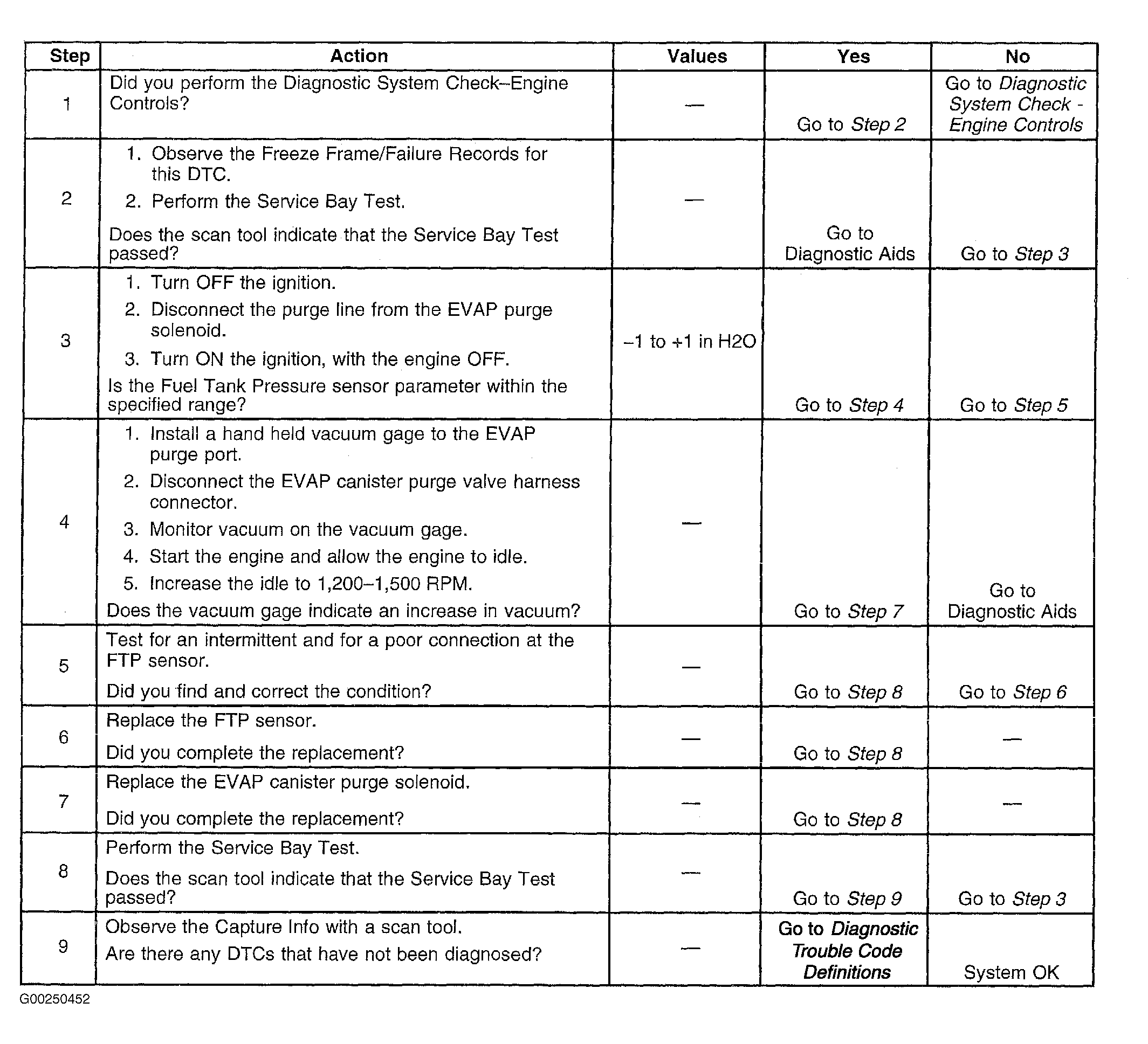

Fig 1: DTC P1441: Evaporative Emissions System Flow During Non-Purge
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
