Vehicle Speed Sensor Connector End View (Harness Side)
Vehicle Speed Sensor Connector End View (Harness Side)

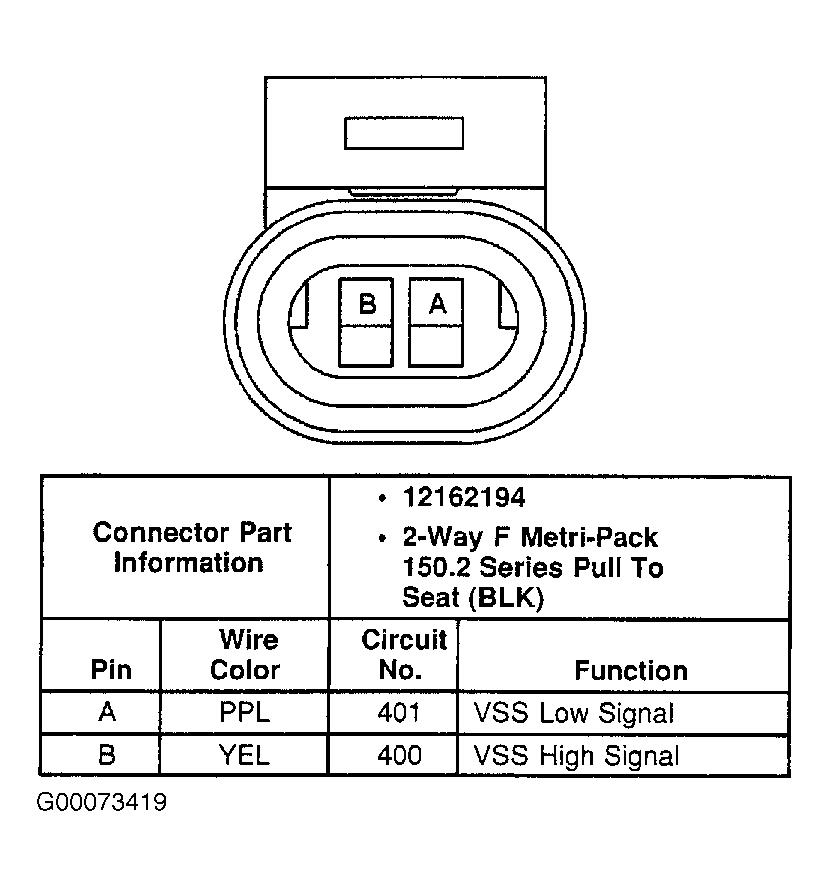

Fig 1: Vehicle Speed Sensor Connector (Harness Side)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
