Component Locations

COMPONENT LOCATIONS

Component

Location

Cooling Fans ⁽¹⁾

Underhood Behind Radiator

Cooling Fan Fuses & Relays ⁽²⁾

In Bottom Underhood Fuse Block At Front Passengers Side

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 and Fig 3 .

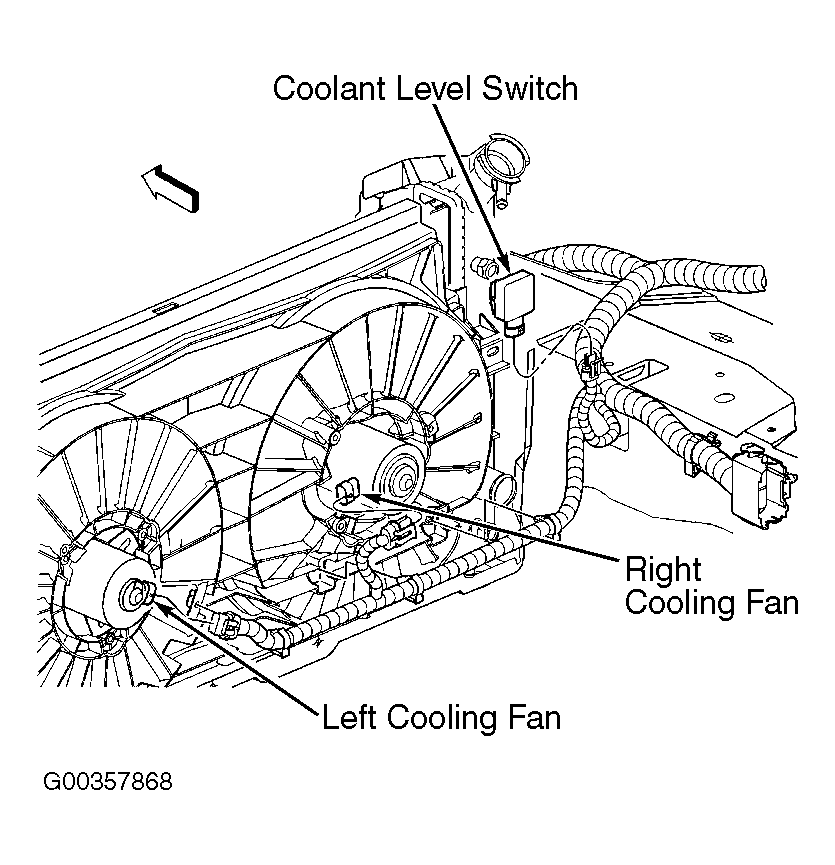

Fig 1: Locating Cooling Fans & Components

Courtesy of GENERAL MOTORS CORP.

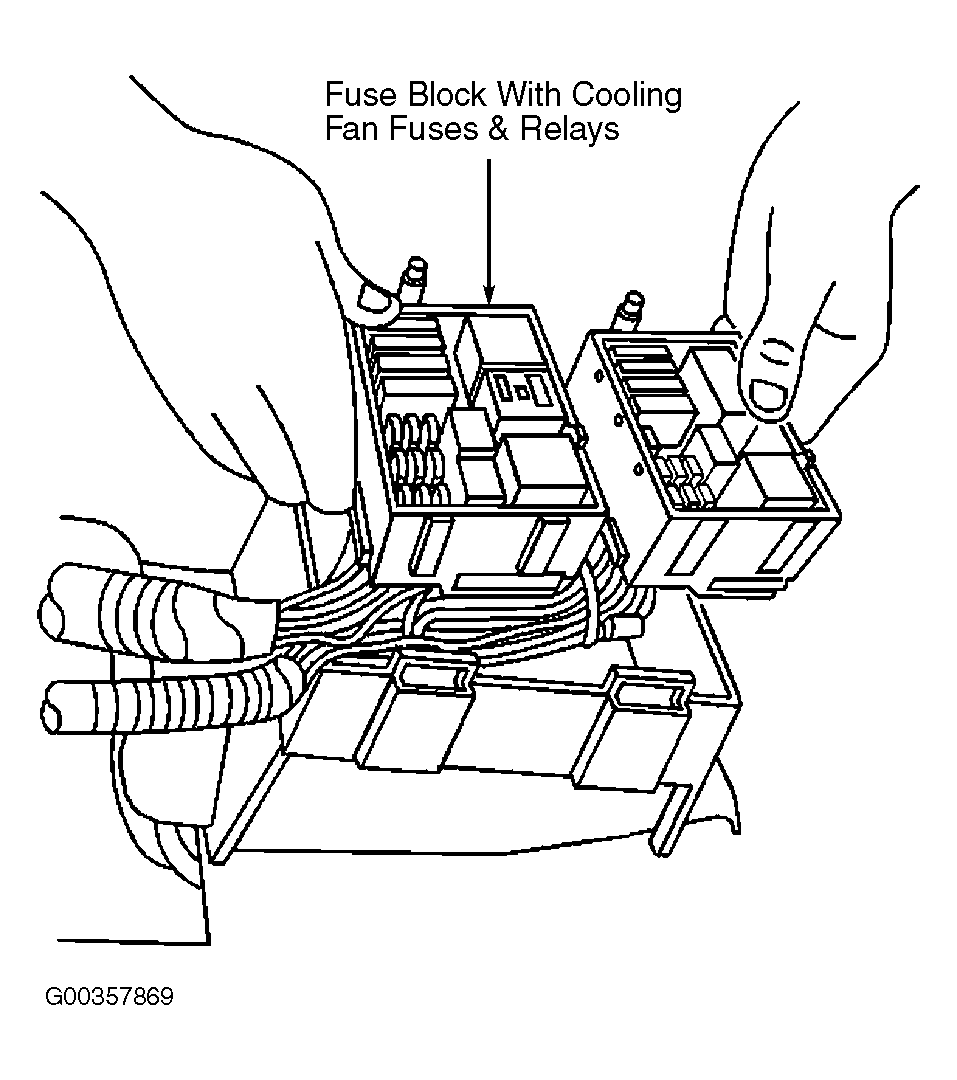

Fig 2: Locating Cooling Fan Fuses & Relays

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Cooling Fan Fuses & Relays

Courtesy of GENERAL MOTORS CORP.
