Data Link Communications Component Views
Data Link Communications Component Views

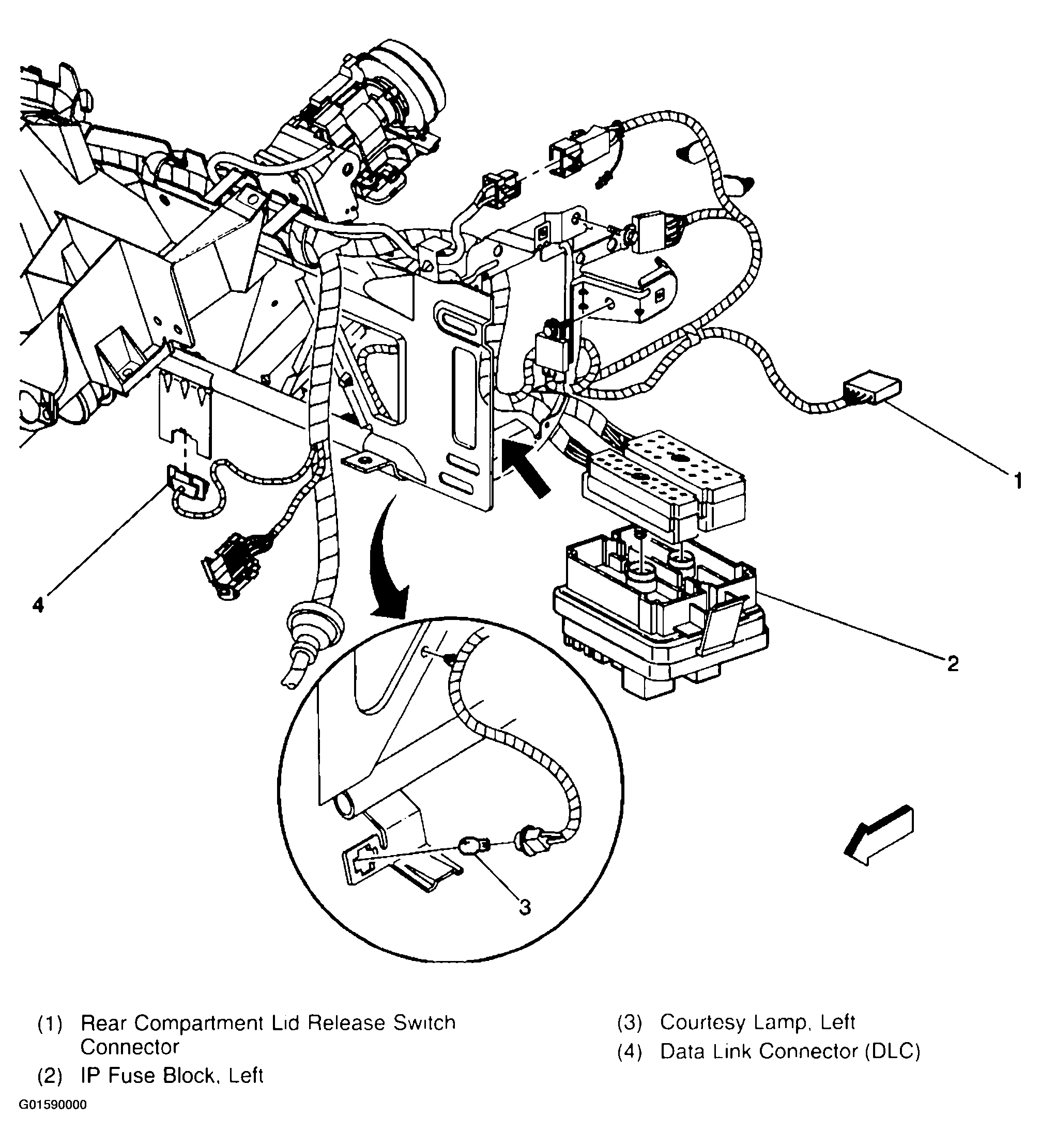

Fig 1: Component Location - Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
