Cruise Control Component Views

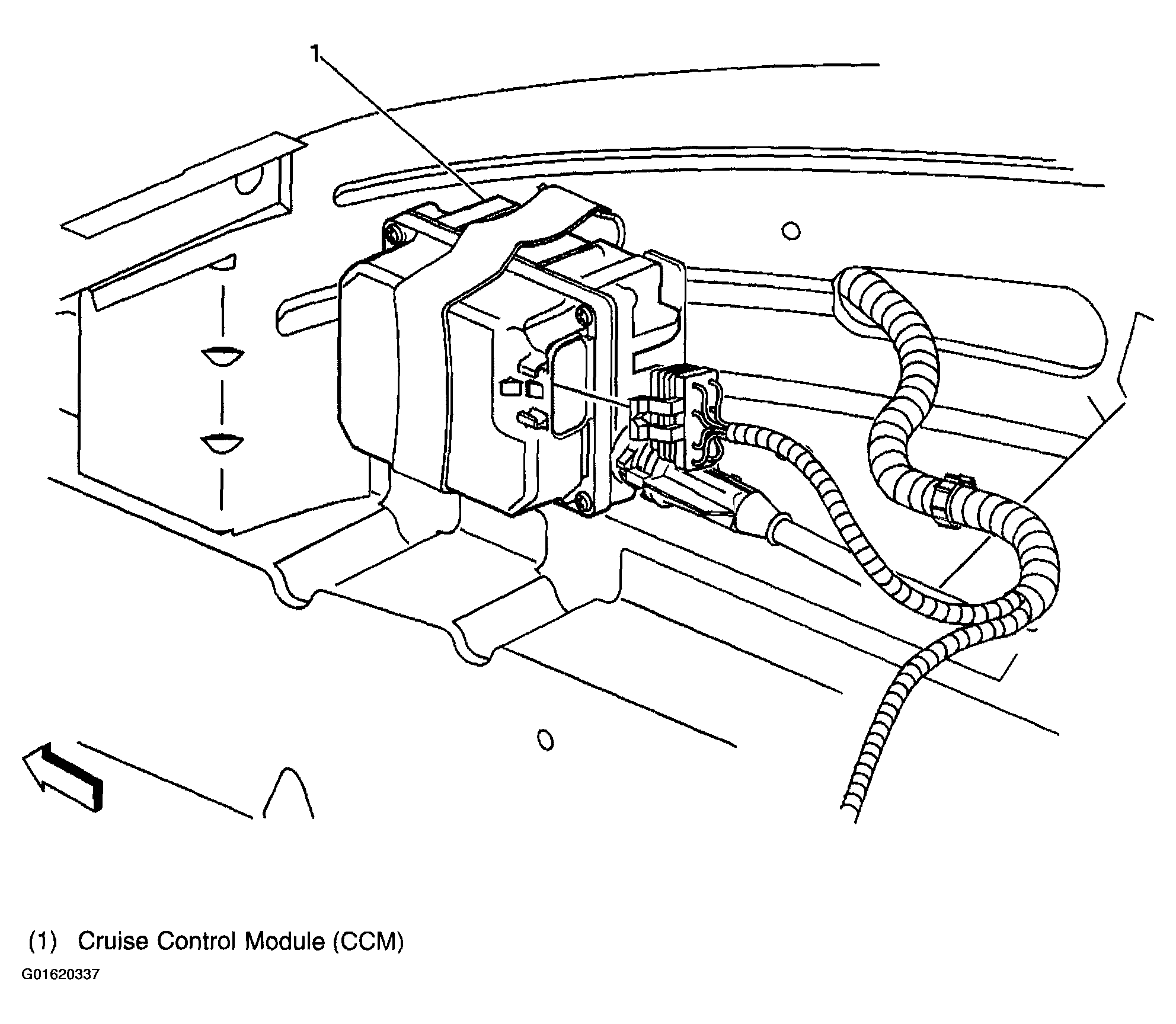

Fig 1: Locating Cruise Control Component View (Right Side Of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

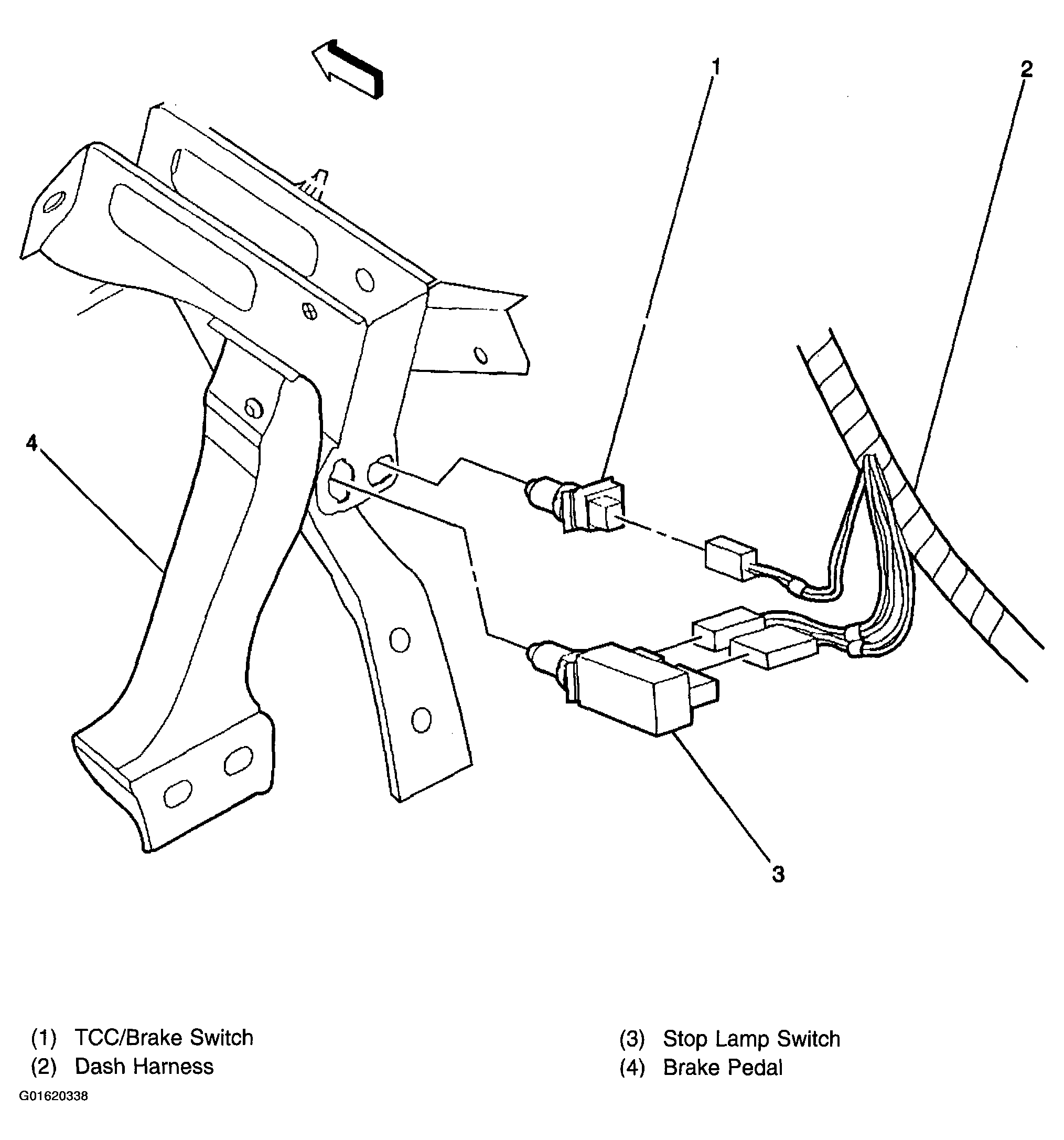

Fig 2: Locating Cruise Control Component View (Below Left Side Of I/P, Near Steering Column

Courtesy of GENERAL MOTORS CORP.

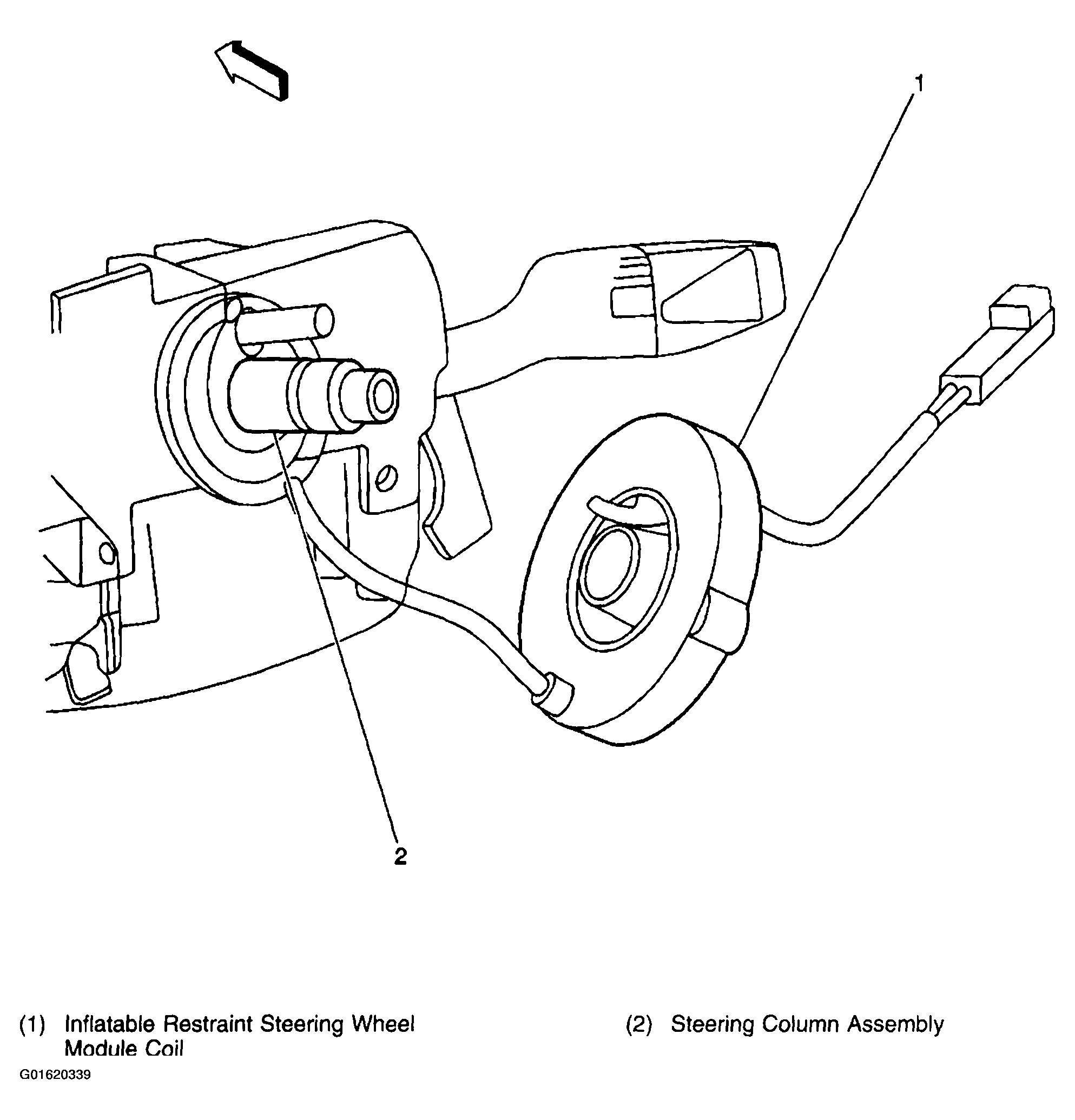

Fig 3: Locating Cruise Control Component View (SIR Coil Assembly)

Courtesy of GENERAL MOTORS CORP.
