Cruise Control Connector End Views

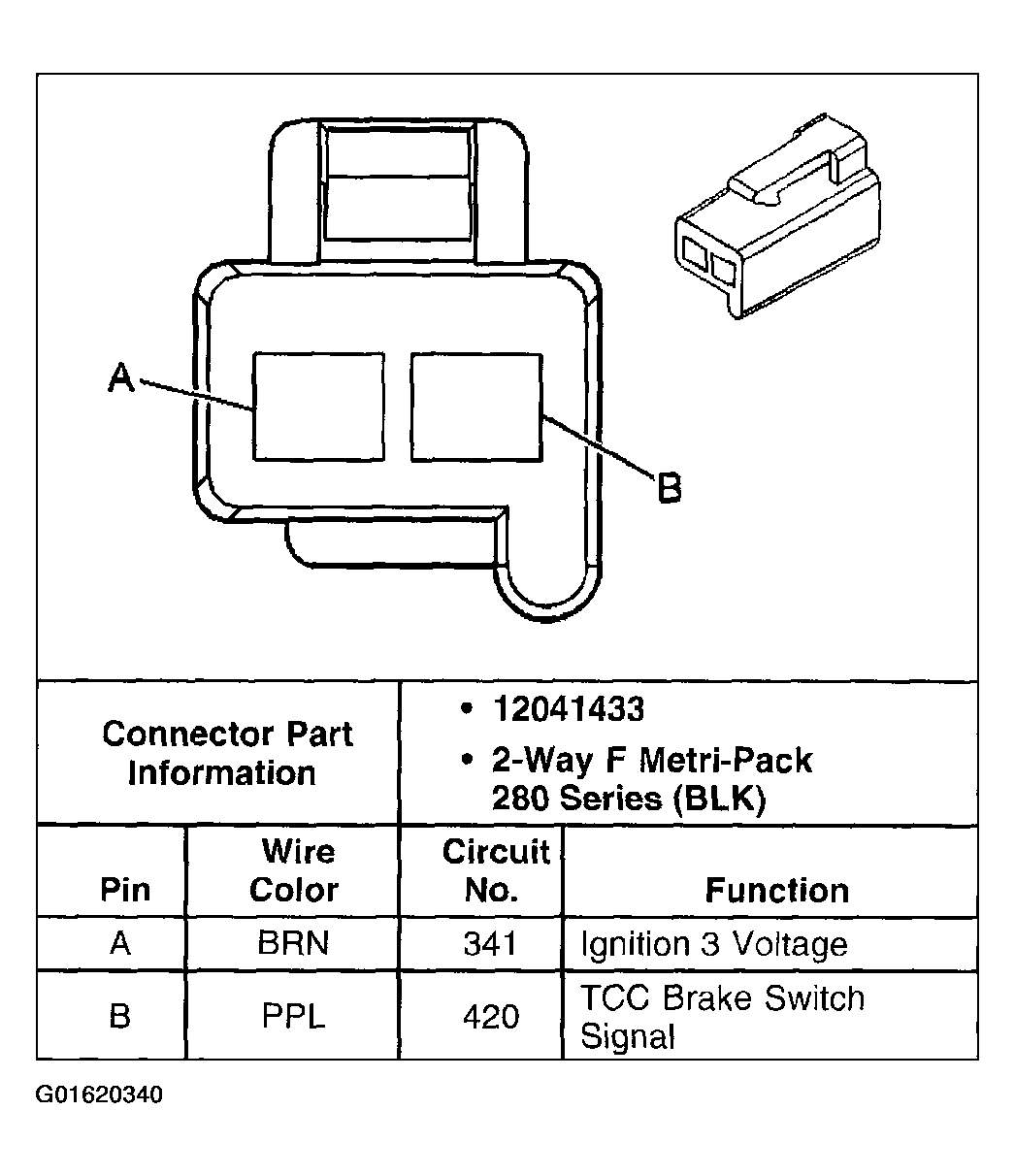

Fig 1: Locating Cruise Control Connector End Views (Brake Switch)

Courtesy of GENERAL MOTORS CORP.

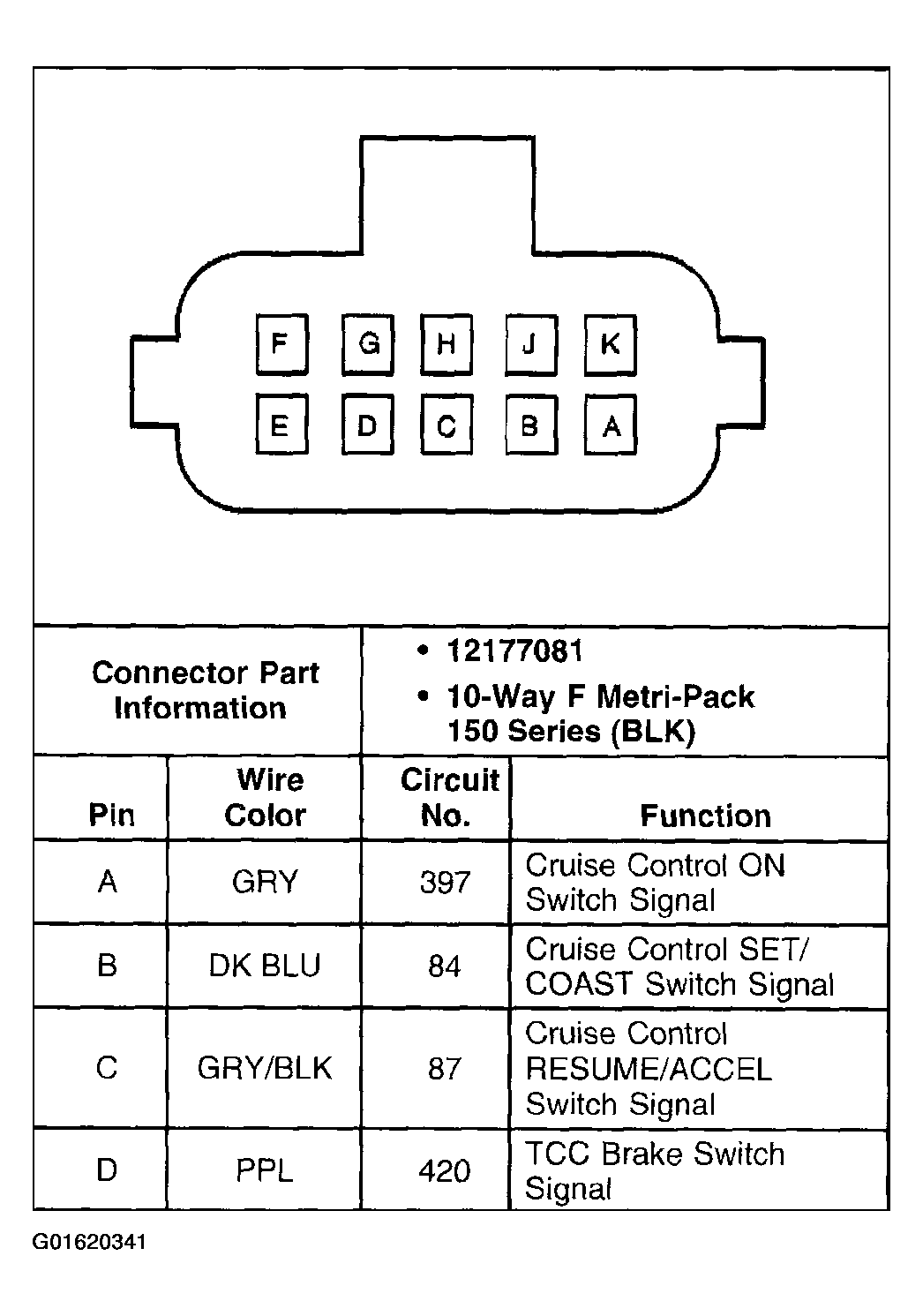

Fig 2: Locating Cruise Control Connector End View - Cruise Control Module (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

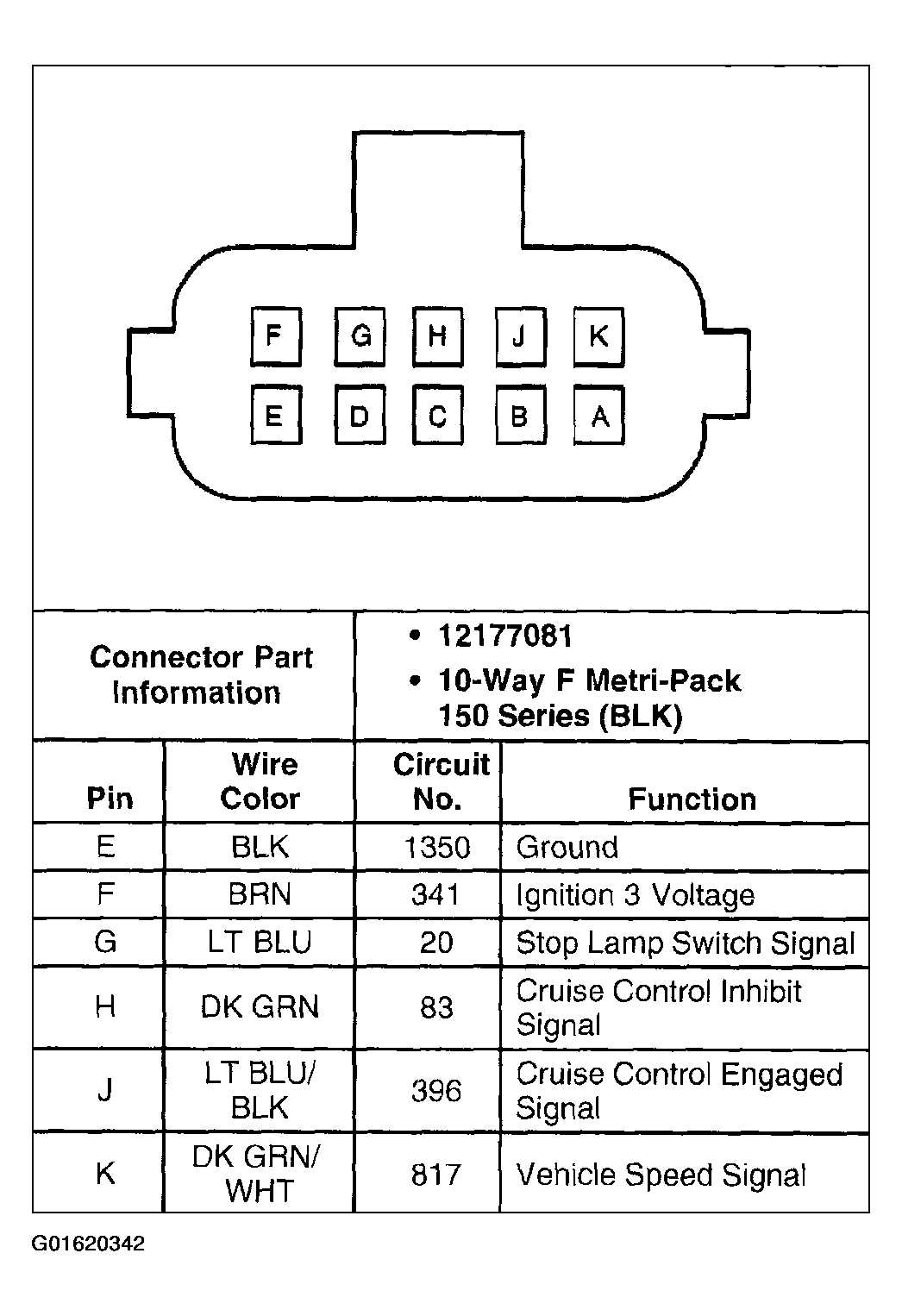

Fig 3: Locating Cruise Control Connector End View - Cruise Control Module (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
