Entertainment Component Views

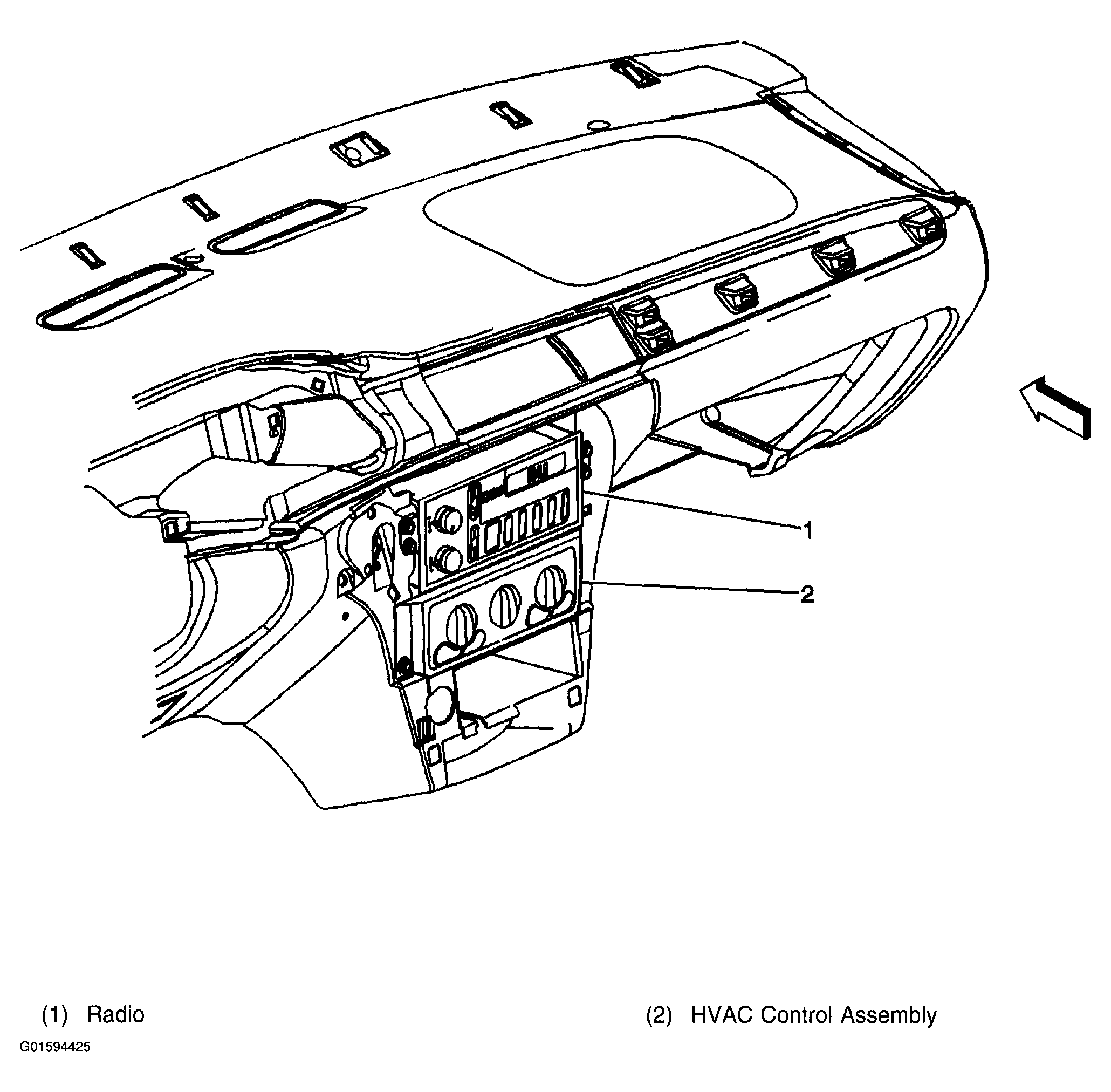

Fig 1: Locating Radio And HVAC Control Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 2: Component Location - Right Side Of Passenger Compartment, Rear Package Shelf

Courtesy of GENERAL MOTORS CORP.

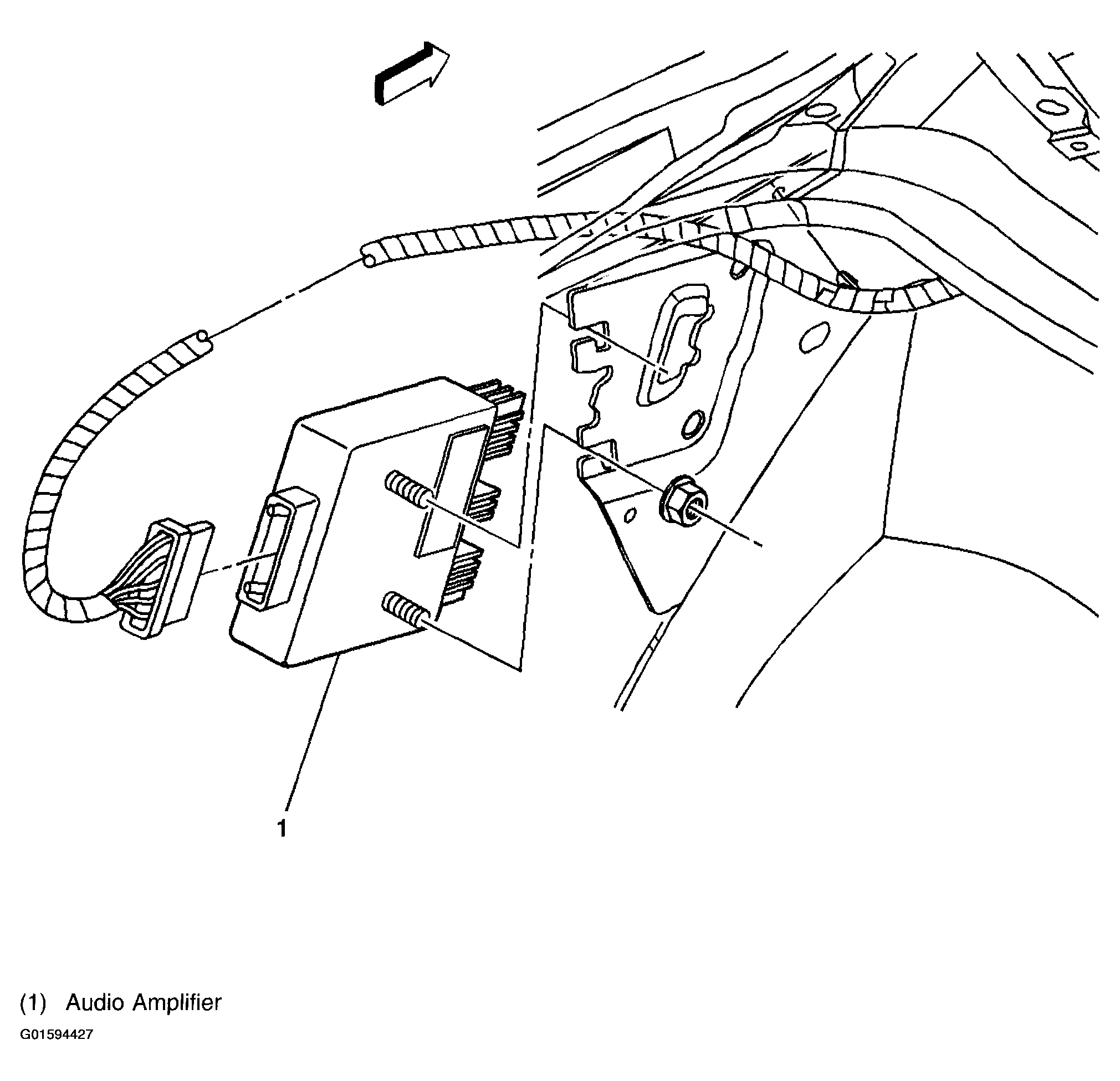

Fig 3: Locating Audio Amplifier

Courtesy of GENERAL MOTORS CORP.
