Schematic and Routing Diagrams

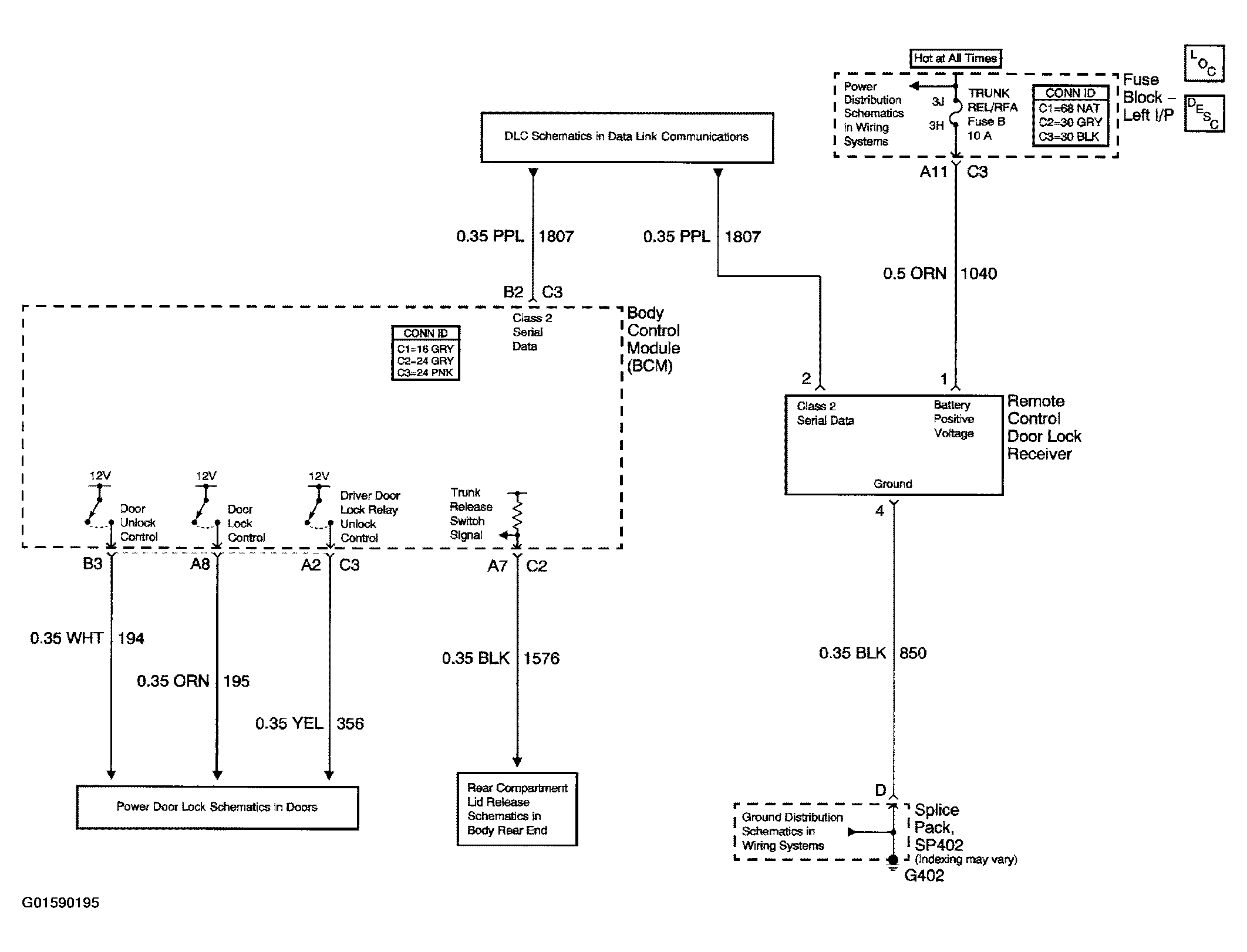

Fig 1: Keyless Entry Schematics Diagram
G01590195Courtesy of GENERAL MOTORS CORP.
